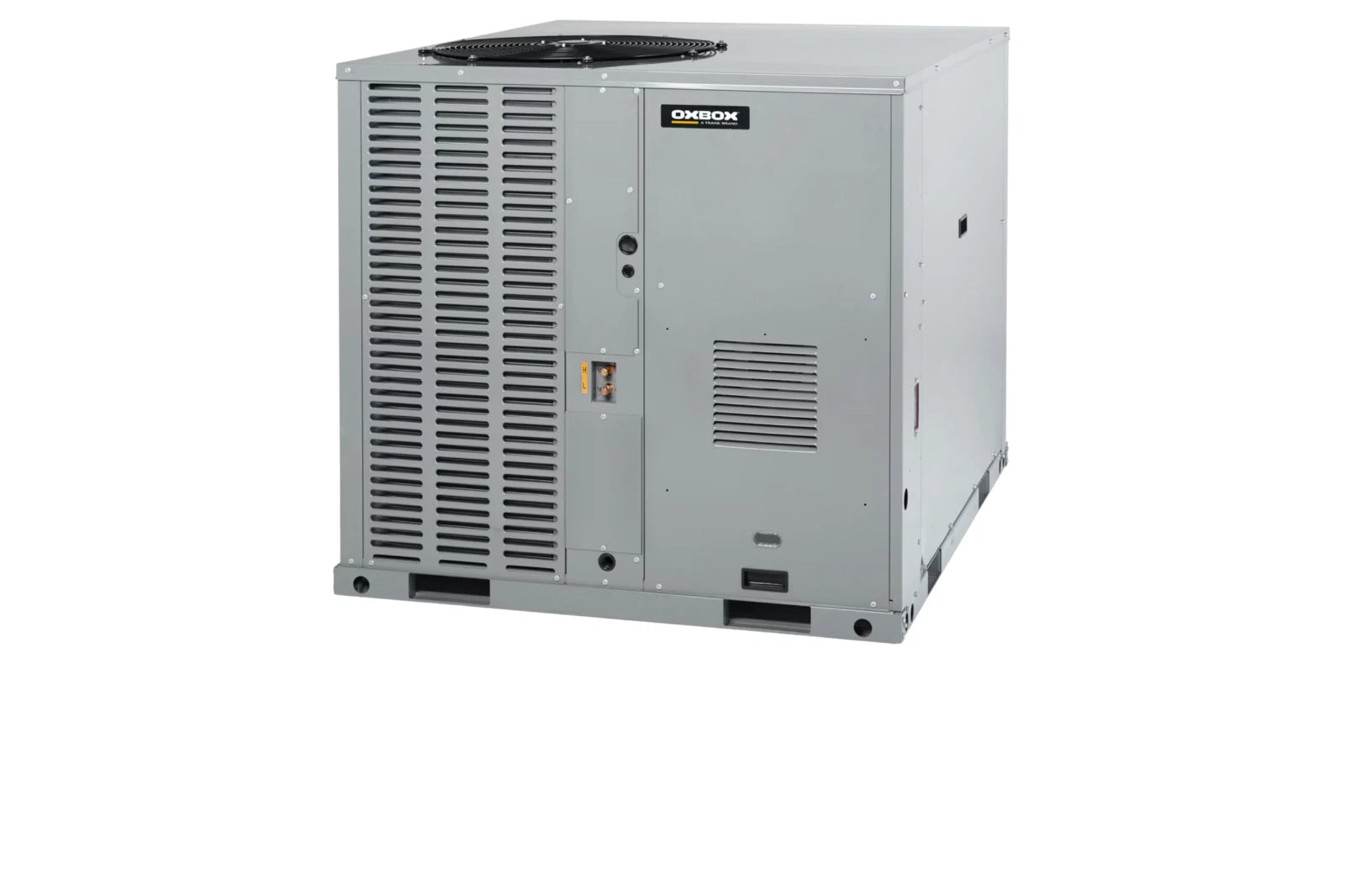

Oxbox J5PG4036A1090A Gas Electric Packaged Unit 3 Ton 13.4 SEER2 90000 Btu R-454B Single Stage

Product Description

The Oxbox J5PG4036A1090A is a 3-ton (36,000 BTU) gas/electric packaged unit that combines electric cooling and natural gas heating in a single outdoor cabinet. The cooling side is rated at 13.4 SEER2 using R-454B low-GWP refrigerant, keeping the system compliant with current environmental standards. The gas furnace section delivers 90,000 BTU/h of heating capacity at 81% AFUE. Operating on 208/230-volt single-phase power, this single-stage unit is designed for installation by licensed HVAC technicians on residential, multi-family, and light commercial applications where a compact, all-in-one footprint is required.

This packaged unit is suited for rooftop or ground-level installations where duct connections enter the unit from the bottom or side. The all-in-one cabinet integrates the compressor, evaporator, condenser, and gas furnace assembly, eliminating the need for a separate air handler or furnace indoors. Typical applications include slab-mounted residential installs, low-slope commercial rooftop applications, and multi-family housing where indoor mechanical space is limited. Auxiliary electric heaters are available in 5 kW through 20 kW for supplemental heating if required.

Key Features

• 13.4 SEER2 cooling efficiency rating meeting current DOE standards
• R-454B low-GWP refrigerant for environmental compliance
• 90,000 BTU/h gas furnace section rated at 81% AFUE single-stage heating
• 3-ton (36,000 BTU/h) cooling capacity for residential and light commercial use
• Bottom or side return air configuration for installation flexibility
• Compatible with optional auxiliary electric heaters from 5 kW to 20 kW

Compatibility

Designed as an OEM packaged gas/electric replacement or new-installation unit in the Oxbox J5PG4 product family. Consult the unit submittal and installation manual for duct connection dimensions and electrical requirements before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician following local mechanical codes and the manufacturer installation manual. Shut off all electrical power and close the gas supply valve before beginning any service or connection work. A condensate drain trap is required at the 3/4-inch NPT drain connection. Refrigerant handling requires EPA Section 608 certification due to the R-454B charge in this unit.

Technical Specifications

• Cooling Capacity: 36,000 BTU/h (3 Ton)
• SEER2 Rating: 13.4
• Heating Capacity: 90,000 BTU/h
• AFUE: 81%
• Refrigerant Type: R-454B
• Voltage: 208/230 volts
• Phase: Single Phase
• Heating Stages: Single Stage
• Weight: 431 pounds
• Condensate Drain Connection: 3/4 inch NPT

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5PG4036A1090A
