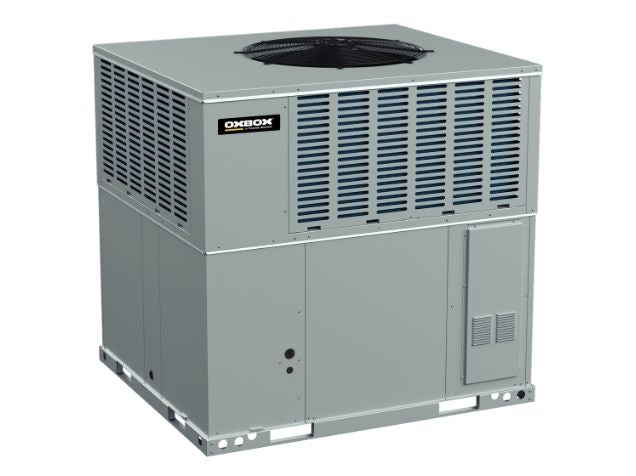

Oxbox J5PG4024A1060A Gas Electric Packaged Unit 2 Ton 60000 Btu 13.4 SEER2 Single Phase

Product Description

The Oxbox J5PG4024A1060A is a 2-ton gas/electric packaged unit designed for year-round residential heating and cooling in a single outdoor cabinet. It delivers 60,000 BTU of gas heating capacity alongside electric cooling rated at 13.4 SEER2, using R-454B refrigerant in compliance with current efficiency and environmental standards. Operating on 208/230-volt, single-phase, 60 Hz power, this unit integrates the gas furnace, evaporator coil, and condensing section into one weather-resistant enclosure. Licensed HVAC contractors install and commission this equipment.

This packaged unit is suited for residential applications where rooftop or slab-mounted all-in-one systems are preferred over split configurations. The self-contained design consolidates refrigerant, gas, and electrical connections at a single outdoor location, reducing field labor and simplifying access for service. It is an Oxbox product, a brand aligned with Trane engineering, and is appropriate for single-phase residential installations requiring both gas heat and electric cooling in one footprint.

Key Features

• 2-ton cooling capacity with 13.4 SEER2 efficiency rating
• 60,000 BTU gas heating integrated into the same cabinet as the cooling section
• R-454B refrigerant compliant with current low-GWP regulatory requirements
• 208/230-volt single-phase 60 Hz power supply for broad residential compatibility
• All-in-one outdoor packaged design eliminates the need for a separate indoor air handler or furnace
• Weather-resistant cabinet construction for outdoor rooftop or ground-level installation

Compatibility

Designed as an OEM packaged gas/electric replacement or new-installation unit for residential single-phase applications requiring a self-contained heating and cooling system in one outdoor cabinet.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54), and applicable NEC requirements for electrical connections. Shut off all electrical power and close the gas supply valve before servicing or making connections. Ensure the mounting surface or rooftop curb is level and rated for the unit weight prior to setting the equipment. Do not operate the unit without verifying refrigerant line integrity, proper gas pressure at the unit inlet, and correct electrical phasing.

Technical Specifications

• Cooling Capacity: 2 ton
• Gas Heating Capacity: 60,000 BTU/h
• SEER2 Rating: 13.4 SEER2
• Refrigerant Type: R-454B
• Voltage: 208/230 volts
• Phase: Single phase
• Frequency: 60 Hz
• Unit Weight: 422 pounds

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5PG4024A1060A
