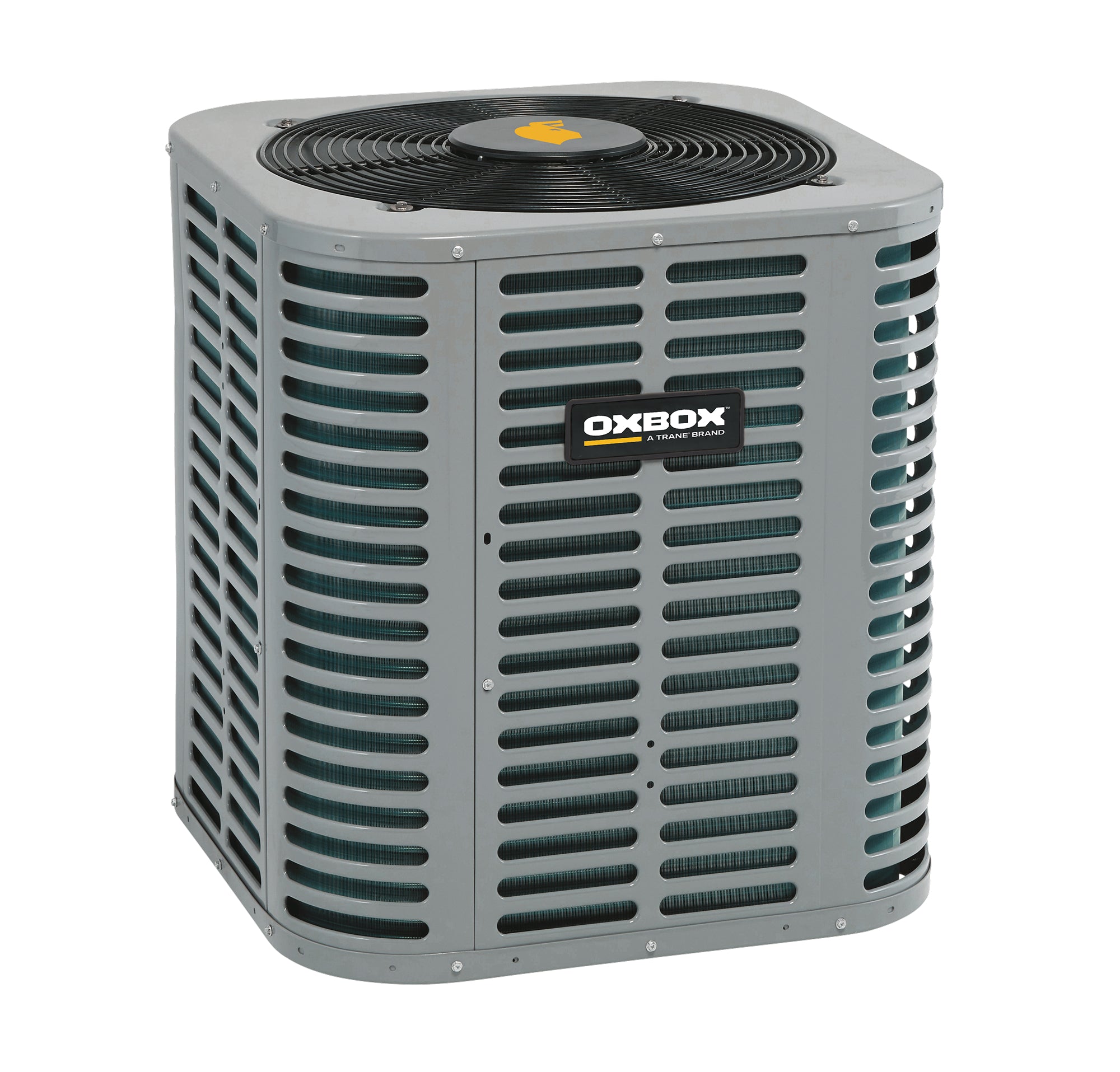

Oxbox J5HP5030A1000 Heat Pump Condenser 2.5 Ton 14.3 SEER2 R-454B Single Phase

Product Description

The Oxbox J5HP5030A1000 is a 2.5-ton outdoor heat pump condenser unit rated at 14.3 SEER2 efficiency and factory-charged with R-454B refrigerant. Operating on 208/230V single-phase 60Hz power, it draws 12.7 running load amps and 71 locked-rotor amps. The unit is designed for split-system residential applications, pairing with a compatible indoor air handler and TXV metering device. Licensed HVAC technicians install and commission this equipment. The painted galvanized steel cabinet is built to resist corrosion and weathering in outdoor installations.

This heat pump condenser is suited for residential split-system heating and cooling in mild to moderate climates where year-round heat pump operation is practical. The J5HP5030A1000 is part of the Oxbox J5HP5 Series and is designed to work with matched indoor coil and air handler components in a split-system configuration. The unit includes liquid and suction line service valves with service fittings for refrigerant system access and pressure measurement.

Key Features

• 2.5-ton capacity with 14.3 SEER2 efficiency rating
• R-454B refrigerant — lower global warming potential than R-410A
• 208/230V single-phase 60Hz operation for standard residential electrical service
• Painted galvanized steel cabinet for corrosion and weather resistance
• Suction and liquid line service valves with service fittings for system servicing
• Single-speed operation — straightforward installation and service

Compatibility

Designed for use in residential split-system heat pump installations as part of the Oxbox J5HP5 Series. Specific matched indoor coil and air handler components are required for rated system efficiency; consult the equipment submittal and matching tables for confirmed compatible indoor units.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installer guide. Shut off all high-voltage power at the disconnect before making any electrical or refrigerant connections. The refrigerant circuit must be leak-checked, evacuated to the required micron level, and charged per system specifications before startup. Low-voltage control wiring should be run through the designated 7/8-inch access knockout.

Technical Specifications

• Capacity: 2.5 tons (30,000 BTU/h)
• SEER2 Rating: 14.3
• Refrigerant: R-454B
• Voltage: 208/230V
• Phase: 1-phase
• Frequency: 60 Hz
• Running Load Amps: 12.7 amps
• Locked Rotor Amps: 71 amps
• Fan Motor Speeds: 1
• Factory Installed Start Components: No
• Unit Width (W): 28 inches
• Unit Height (H): 24-15/16 inches
• Unit Depth (L): 28 inches
• Liquid Line Connection: 3/8 inch
• Suction Line Connection: 3/4 inch
• Cabinet Material: Painted galvanized steel

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5HP5030A1000
