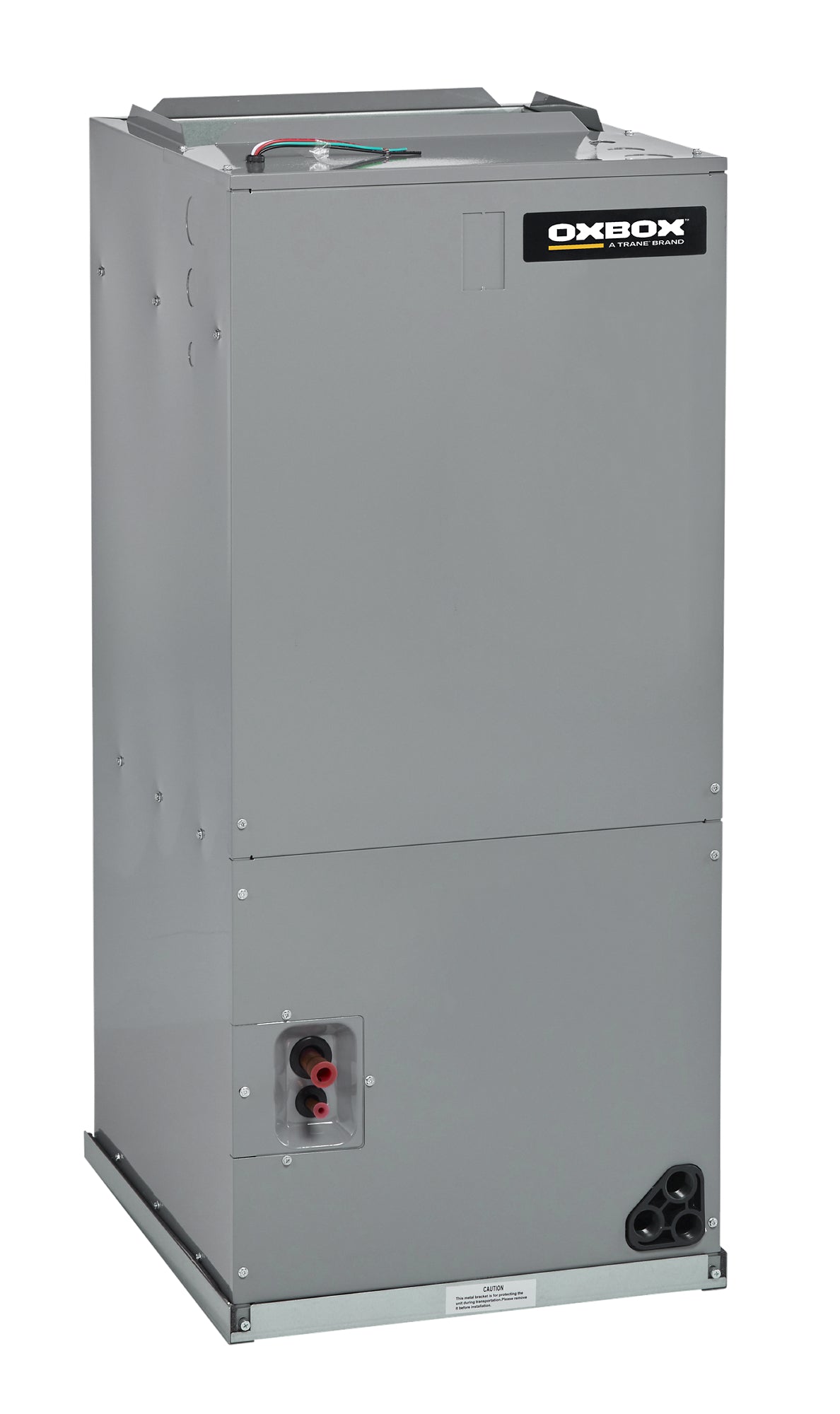

Oxbox J5AH5E60A1C00 Air Handler 60000 Btu/h Ecm Motor Multi-position

Product Description

The Oxbox J5AH5E60A1C00 is a multi-position residential air handler equipped with an ECM (electronically commutated motor) blower, designed for use with matched heat pump or central air conditioning systems. Oxbox is a Trane-affiliated brand built around straightforward, serviceable equipment at a practical price point. The ECM motor delivers variable-speed airflow control, which reduces energy consumption compared to standard PSC blower motors and supports quieter, more consistent air distribution throughout the conditioned space. With a nominal capacity of 60,000 BTU/h, this unit is sized for larger residential or light-commercial applications. Licensed HVAC technicians handle procurement and installation of this equipment.

The J5AH5E60A1C00 is suited for residential and light-commercial installations where a multi-positional air handler is required. Multi-position capability allows configuration in vertical upflow, vertical downflow, or horizontal orientations to fit a range of mechanical room layouts, attic installs, or closet applications. The unit is compatible with R-454B refrigerant systems, aligning with current low-GWP refrigerant standards. Electric heater kit provisions are available for supplemental heat integration. The painted, galvanized steel cabinet provides corrosion resistance for long-term reliability in typical mechanical space environments.

Key Features

• ECM blower motor for variable-speed airflow and reduced energy draw compared to PSC motors
• Multi-position design supports upflow, downflow, and horizontal installation orientations
• Compatible with R-454B low-GWP refrigerant systems
• Painted galvanized steel cabinet for rust resistance in demanding install environments
• Provisions for electric heater kit integration for supplemental heating capability
• Suitable for mobile home applications per airflow performance ratings

Compatibility

Designed as an OEM-style multi-position air handler for use with matched Oxbox or compatible split-system heat pump and central air conditioning equipment rated for R-454B refrigerant. Specific compatible outdoor unit model numbers were not provided in available product data — consult the manufacturer submittal sheet or system matchup guide for confirmed pairings before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable local codes, NEC electrical requirements, and manufacturer instructions. Disconnect and lock out all electrical power before servicing or making refrigerant connections. Refrigerant line connections are copper sweat type; primary and auxiliary condensate drain connections use 3/4-inch female NPT fittings. Verify unit orientation and duct flange alignment before final mounting, and confirm electric heater kit compatibility and breaker sizing if supplemental heat is included in the system design.

Technical Specifications

• Nominal Capacity: 60000 BTU/h
• Motor Type: ECM (Electronically Commutated Motor)
• Refrigerant: R-454B
• Installation Positions: Vertical Upflow, Vertical Downflow, Horizontal
• Condensate Drain Connection: 3/4 inch Female NPT (primary and auxiliary)
• Cabinet Material: Painted Galvanized Steel

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5AH5E60A1C00
