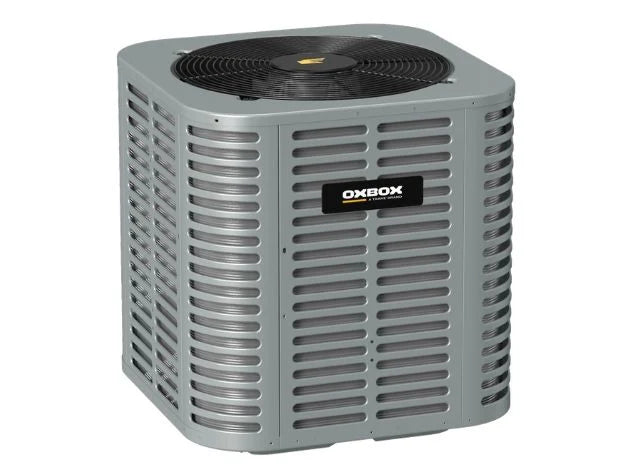

Oxbox J5AC5060A1000A 5 Ton 14.3 SEER2 R-454B Single-Stage Air Conditioner Condenser

Product Description

The Oxbox J5AC5060A1000A is a powerful 60,000 BTU (5.0-Ton) single-stage air conditioner condenser designed for large residential cooling applications. Built as part of the innovative J5 series, this unit is fully optimized for R-454B low-GWP refrigerant, ensuring your home meets the latest 2025/2026 environmental standards while providing reliable, high-capacity cooling. Backed by the engineering expertise of Trane, this condenser features a high-efficiency all-aluminum microchannel coil with a hydrophilic coating, providing exceptional heat transfer and superior resistance to corrosion in various outdoor climates.

• 14.3 SEER2 efficiency rating, providing energy savings and DOE 2023 compliance
• Utilizes R-454B low-GWP refrigerant for an eco-friendly and future-proof cooling solution
• Equipped with a high-performance single-stage scroll compressor for smooth operation
• Advanced ECM fan motor with multiple speeds for optimized airflow and quieter performance

Product Highlights

The J5AC5060A1000A is constructed with a heavy-gauge, painted galvanized steel cabinet that has undergone 500 hours of salt spray testing to ensure long-term durability against the elements. Its compact footprint is ideal for homeowners with limited yard space, while the 24V low-voltage control system provides added safety and compatibility with most standard thermostats. With a sound power level of approximately 80 dB and a 10-year registered limited warranty on the compressor and internal parts, this 5-ton unit offers a dependable and affordable solution for whole-home comfort.

Product Information

Standard Information

• Brand: Oxbox (A Trane Brand)
• MPN: J5AC5060A1000A
• Series: J5AC5

Technical Specifications

• Product Type: Air Conditioner Condenser
• Cooling Capacity (BTU): 60,000
• Tonnage: 5.0 Ton
• SEER2 Rating: 14.3
• Voltage: 208/230V
• Phase: 1
• Hertz: 60
• Refrigerant Type: R-454B
• Compressor Type: Single-Stage Scroll
• Fan Motor: ECM (Multi-Speed)
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Sound Level (dB): 80.0
• Net Weight: 185.0 lbs
• Shipping Weight: 196.0 lbs
• Dimensions: 29.13" W x 29.13" D x 33.19" H
