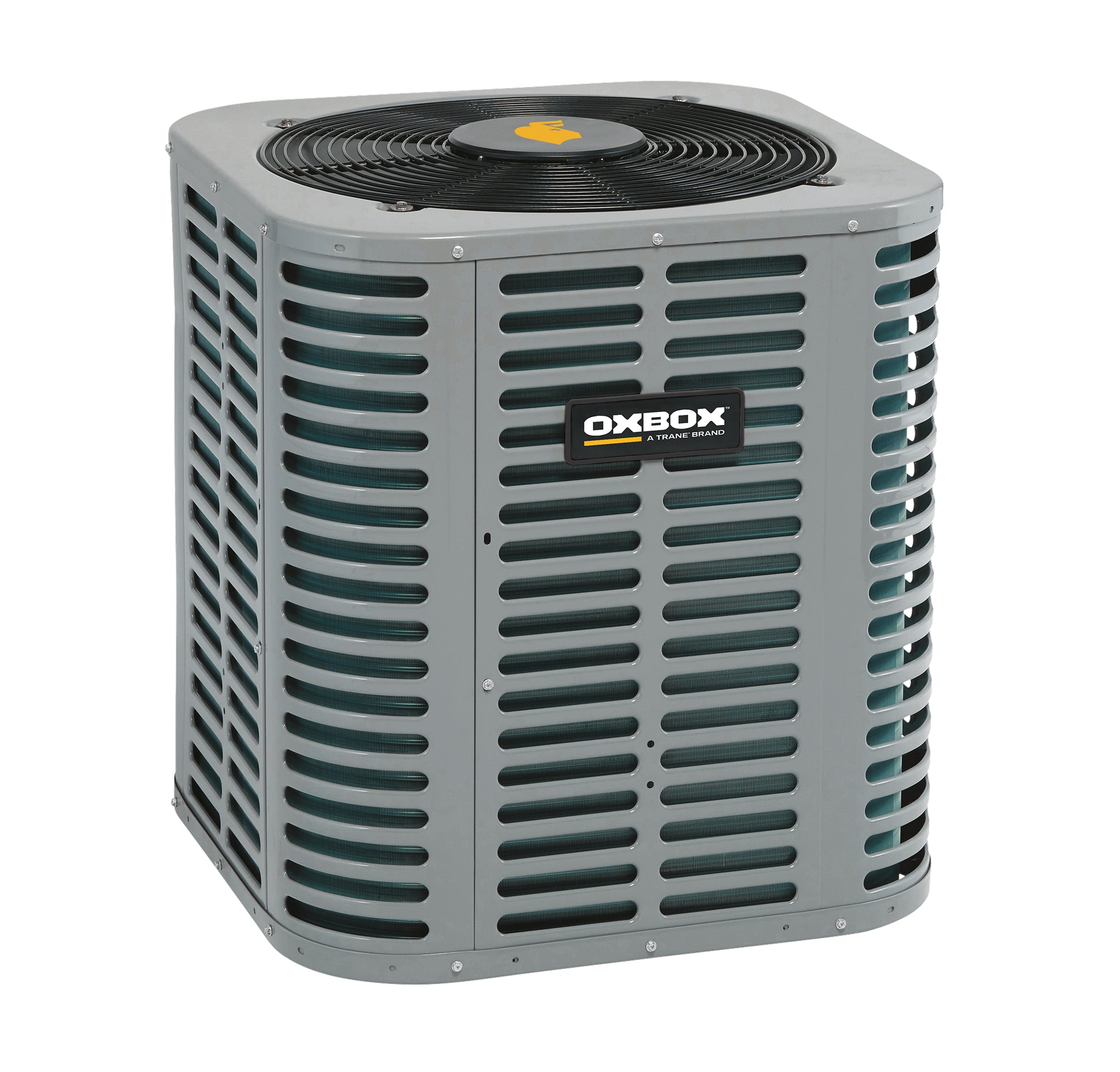

Oxbox J5AC5030A1000 Air Conditioner Condenser 2.5 Ton 30000 Btu 14.3 SEER2 R-454B Residential Cooling

Product Description

The Oxbox J5AC5030A1000 is a 2.5-ton residential split-system air conditioner condenser rated at 30,000 BTU/h with a 14.3 SEER2 efficiency rating. It operates on R-454B refrigerant, a low-global-warming-potential refrigerant that meets current and upcoming regulatory requirements. This outdoor condensing unit is the foundation of a split cooling system and is installed by licensed HVAC technicians as part of a matched indoor-outdoor assembly. The unit is designed to deliver reliable cooling performance in residential applications and pairs with a compatible indoor coil or air handler to complete the refrigerant circuit.

The J5AC5030A1000 is intended for residential split-system cooling installations. It is the outdoor condensing component and must be matched with a compatible indoor coil equipped with a TXV for proper system operation. Web evidence confirms compatibility in matched systems with indoor components including the J5MXCB004AC6HCA B-Cab cased coil with TXV and the J5AH5E24A1B00 and J5AH5E36A1B00 air handlers. This unit is suited for standard residential replacement and new-construction installs where a 2.5-ton cooling-only outdoor unit is required.

Key Features

• 2.5-ton cooling capacity at 30,000 BTU/h for residential split-system applications
• 14.3 SEER2 efficiency rating meets current minimum federal efficiency standards
• R-454B refrigerant — low-GWP alternative compliant with current refrigerant regulations
• Cooling-only condenser designed for matched split-system configurations with TXV indoor coil
• Oxbox product line backed by Trane engineering and manufacturing standards

Compatibility

Confirmed for use in matched split-system configurations with the J5MXCB004AC6HCA B-Cab cased coil with TXV, the J5AH5E24A1B00 air handler, and the J5AH5E36A1B00 air handler. A TXV is required on the indoor coil for proper system operation. Consult the Oxbox matchup guide to verify additional compatible indoor components before installation.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to the use of R-454B refrigerant. Shut off all electrical power to the system at the disconnect and main panel before making any connections. Refrigerant lines must be brazed using proper procedures, and the system must be leak-checked and evacuated before opening service valves and charging. Follow the Oxbox J5AC5 installation manual and all applicable local mechanical and electrical codes during setup.

Technical Specifications

• Cooling Capacity: 30,000 BTU/h
• Tonnage: 2.5 tons
• SEER2 Rating: 14.3 SEER2
• Refrigerant Type: R-454B
• System Type: Cooling Only (Condenser)
• Application: Residential Split System

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5AC5030A1000
