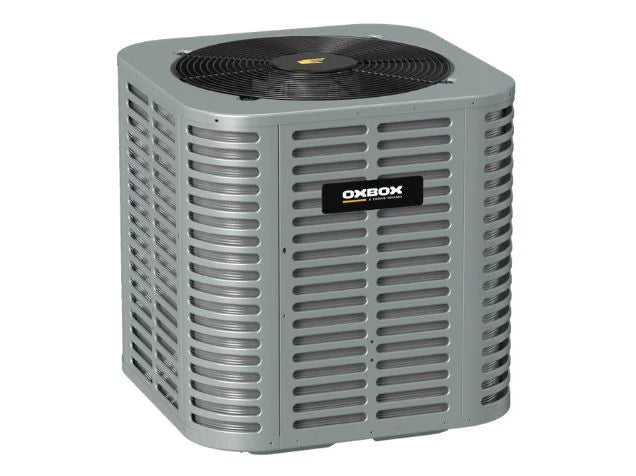

Oxbox J5AC3060A1000A 5 Ton 13.4 SEER2 R-454B Single-Stage Air Conditioner Condenser

Product Description

The Oxbox J5AC3060A1000A is a robust 60,000 BTU (5.0-Ton) single-stage air conditioner condenser designed to provide reliable, high-capacity cooling for large residential properties. Part of the innovative J5 series, this unit is fully optimized for R-454B low-GWP refrigerant, ensuring your home meets the 2025/2026 environmental standards while delivering powerful climate control. Engineered with the technical expertise of Trane, this condenser features an all-aluminum microchannel coil that offers superior heat transfer efficiency and exceptional resistance to corrosion, significantly extending the life of the unit compared to traditional copper-tube designs.

• DOE 2023 compliant with a 13.4 SEER2 efficiency rating
• Utilizes R-454B low-GWP refrigerant for an eco-friendly and future-proof cooling solution
• All-aluminum microchannel coil provides enhanced durability and a lighter overall weight
• High-performance single-stage scroll compressor for smooth and dependable operation

Product Highlights

Constructed for longevity in demanding outdoor environments, the J5AC3060A1000A features a heavy-gauge, painted galvanized steel cabinet that has undergone 500-hour salt spray testing. The unit is equipped with a multi-speed ECM fan motor that optimizes airflow while maintaining relatively quiet sound levels of approximately 78 dB. With its 29-inch footprint, this 5-ton condenser offers a space-efficient solution for high-demand cooling needs and is backed by a 10-year registered limited warranty on the compressor and internal parts.

Product Information

Standard Information

• Brand: Oxbox (A Trane Brand)
• MPN: J5AC3060A1000A
• Series: J5AC3

Technical Specifications

• Product Type: Air Conditioner Condenser
• Cooling Capacity (BTU): 60,000
• Tonnage: 5.0 Ton
• SEER2 Rating: 13.4
• Voltage: 208/230V
• Phase: 1
• Hertz: 60
• Refrigerant Type: R-454B
• Compressor Type: Single-Stage Scroll
• Fan Motor: Multi-Speed ECM
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Sound Level (dB): 78.0
• Net Weight: 183.0 lbs
• Shipping Weight: 194.0 lbs
• Dimensions: 29.13" W x 29.13" D x 33.19" H
