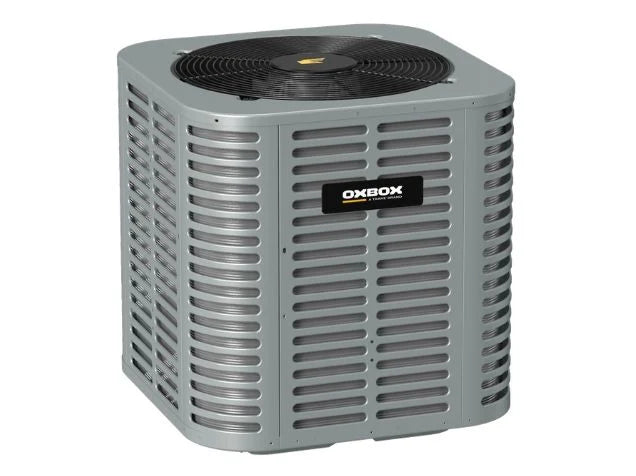

Oxbox J5AC3042A1000A 3.5 Ton 13.4 SEER2 R-454B Single-Stage Air Conditioner Condenser

Product Description

The Oxbox J5AC3042A1000A is a robust 42,000 BTU (3.5-Ton) single-stage air conditioner condenser designed to provide reliable, large-capacity cooling for residential homes. As part of the newest Oxbox lineup, this unit is engineered specifically for R-454B refrigerant, ensuring compliance with the latest environmental regulations regarding low-GWP (Global Warming Potential) cooling solutions. Backed by Trane’s rigorous engineering standards, this condenser features a high-efficiency all-aluminum microchannel coil that offers superior heat transfer and enhanced resistance to corrosion in harsh outdoor environments.

• 13.4 SEER2 efficiency rating, meeting DOE 2023 minimum requirements
• Utilizes R-454B refrigerant for reduced environmental impact and future-proofing
• All-aluminum microchannel coil design for maximum durability and lighter weight
• Small footprint design allows for flexible installation in tight residential spaces

Product Highlights

This outdoor unit is built to withstand extreme conditions, tested to operate in ambient temperatures as high as 115°F. The cabinet is constructed from heavy-gauge galvanized steel with a weather-resistant powder paint finish that has undergone 500 hours of salt spray testing. The J5AC3042A1000A is designed for quiet operation, with maximum sound levels reaching only 78 dB. With a 10-year registered limited warranty on the compressor and internal parts, it provides an affordable yet highly dependable cooling solution for medium-to-large households.

Product Information

Standard Information

• Brand: Oxbox (A Trane Brand)
• MPN: J5AC3042A1000A
• Series: J5AC3

Technical Specifications

• Product Type: Air Conditioner Condenser
• Cooling Capacity (BTU): 42,000
• Tonnage: 3.5 Ton
• SEER2 Rating: 13.4
• Voltage: 208/230V
• Phase: 1
• Hertz: 60
• Refrigerant Type: R-454B
• Compressor Type: Single-Stage Rotary/Scroll
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Sound Level (dB): 78.0
• Net Weight: 168.0 lbs
• Shipping Weight: 179.0 lbs
• Dimensions: 28.0" W x 28.0" D x 33.0" H
