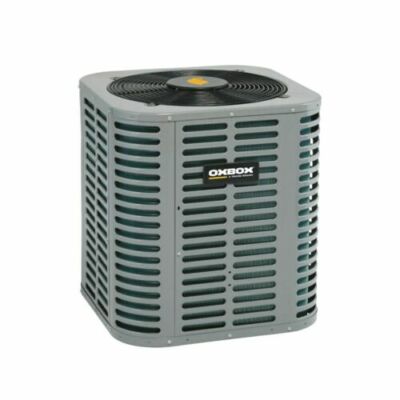

Oxbox J5AC3024A1000 Split System Air Conditioner 2 Ton 13.4 SEER2 R-454B Single Phase

Product Description

The Oxbox J5AC3024A1000 is a 2-ton single-phase split system air conditioner rated at 13.4 SEER2, designed for residential central cooling applications. It operates on R-454B refrigerant, compliant with DOE 2023 efficiency standards. The outdoor condensing unit runs on 208/230-volt, single-phase, 60 Hz power and uses an ECM propeller fan motor rated at 1/3 HP and 850 RPM. The microchannel outdoor coil and painted galvanized steel cabinet are built to resist corrosion in demanding outdoor environments. Licensed HVAC technicians install this unit as the outdoor half of a split system paired with a matching indoor air handler or coil and furnace combination.

The J5AC3024A1000 is suited for residential split system installations where a 2-ton cooling capacity is required. It pairs with a compatible indoor air handler or evaporator coil to form a complete cooling system. One documented system pairing includes the Oxbox J5AH4P18A1A00 air handler. The unit is also available as part of full system bundles incorporating a gas furnace. It is appropriate for single-zone residential applications requiring a 208/230-volt single-phase power supply.

Key Features

• 13.4 SEER2 cooling efficiency, meeting DOE 2023 compliance requirements
• R-454B refrigerant, a lower global-warming-potential alternative to R-410A
• ECM outdoor fan motor at 850 RPM for quiet, efficient operation
• Microchannel outdoor coil design for improved heat transfer and reduced refrigerant volume
• Painted, galvanized steel cabinet resists rust in outdoor installations
• 208/230-volt, single-phase, 60 Hz power supply compatible with standard residential electrical service

Compatibility

Designed for use in residential split system configurations. Documented compatible pairings include the Oxbox J5AH4P18A1A00 air handler. Verify coil and air handler match ratings using current Oxbox or AHRI-certified system combination data before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding appropriate EPA Section 608 refrigerant handling certification, as this unit contains R-454B refrigerant. Disconnect and lock out all electrical power before connecting or servicing the unit. Follow local mechanical and electrical codes, including applicable NEC requirements for disconnect sizing and wire gauge. Do not install without confirming the indoor coil or air handler is rated for use with R-454B and matches the outdoor unit capacity.

Technical Specifications

• Cooling Capacity: 2 Ton (24,000 BTU/h)
• SEER2 Rating: 13.4
• Refrigerant: R-454B
• Voltage / Phase / Frequency: 208/230 volts / 1-phase / 60 Hz
• Running Load Amps: 11.3 amps
• Locked Rotor Amps: 55.0 amps
• Outdoor Fan Motor Type: ECM Propeller
• Outdoor Fan Motor HP: 1/3 HP
• Outdoor Fan Motor Speed: 850 RPM
• Fan Motor Full Load Amps: 1.30 amps
• Sound Power Level: 75 dB
• Outdoor Coil Type: Microchannel
• Cabinet Material: Painted Galvanized Steel
• Unit Width: 28 inches
• Unit Height: 24-15/16 inches
• Unit Depth: 28 inches
• Gas Valve Connection Size: 3/4 inches
• Liquid Valve Connection Size: 3/8 inches
• Factory Installed Start Components: No
• Compressor Heater: No

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5AC3024A1000
