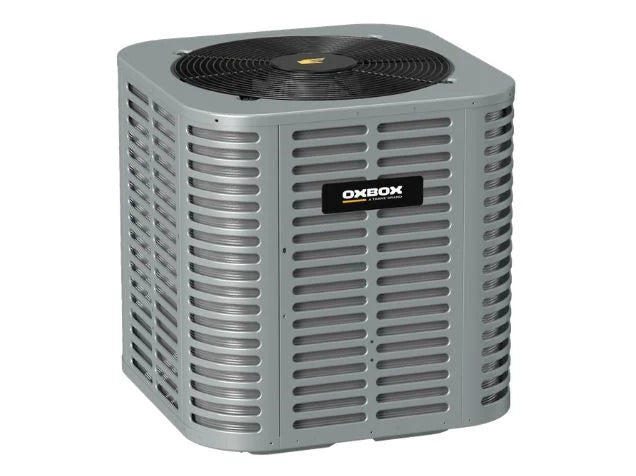

Oxbox J5AC3018A1000A 1.5 Ton 13.4 SEER2 R-454B Single-Stage Air Conditioner Condenser

Product Description

The Oxbox J5AC3018A1000A is a compact and efficient 18,000 BTU (1.5-Ton) single-stage air conditioner condenser designed for smaller residential cooling applications. As part of the next-generation J5 series, this unit is fully optimized for R-454B low-GWP refrigerant, ensuring your home meets 2025/2026 environmental standards while providing reliable, cost-effective cooling. Backed by the engineering expertise of Trane, this condenser features a high-performance all-aluminum microchannel coil that offers superior heat transfer and exceptional resistance to corrosion, even in challenging outdoor environments.

• DOE 2023 compliant with a 13.4 SEER2 efficiency rating
• Utilizes R-454B low-GWP refrigerant for an eco-friendly and future-proof cooling solution
• All-aluminum microchannel coil design for enhanced durability and a lighter footprint
• Compact 24-inch base footprint, ideal for space-restricted side yards or smaller lots

Product Highlights

Built for long-term durability, the J5AC3018A1000A features a heavy-gauge, painted galvanized steel cabinet that has undergone 500 hours of salt spray testing to resist rust and weathering. The unit operates with a high-efficiency scroll compressor for smooth and quiet performance, reaching sound levels as low as 73 dB. With its simplified 24V low-voltage control system and compatibility with a wide range of indoor coils and air handlers, this 1.5-ton unit offers a dependable and affordable solution for smaller homes and apartments, backed by a 10-year registered limited warranty.

Product Information

Standard Information

• Brand: Oxbox (A Trane Brand)
• MPN: J5AC3018A1000A
• Series: J5AC3

Technical Specifications

• Product Type: Air Conditioner Condenser
• Cooling Capacity (BTU): 18,000
• Tonnage: 1.5 Ton
• SEER2 Rating: 13.4
• Voltage: 208/230V
• Phase: 1
• Hertz: 60
• Refrigerant Type: R-454B
• Compressor Type: Single-Stage Scroll
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Sound Level (dB): 73.0
• Net Weight: 121.0 lbs
• Shipping Weight: 131.0 lbs
• Dimensions: 23.63" W x 23.63" D x 24.94" H
