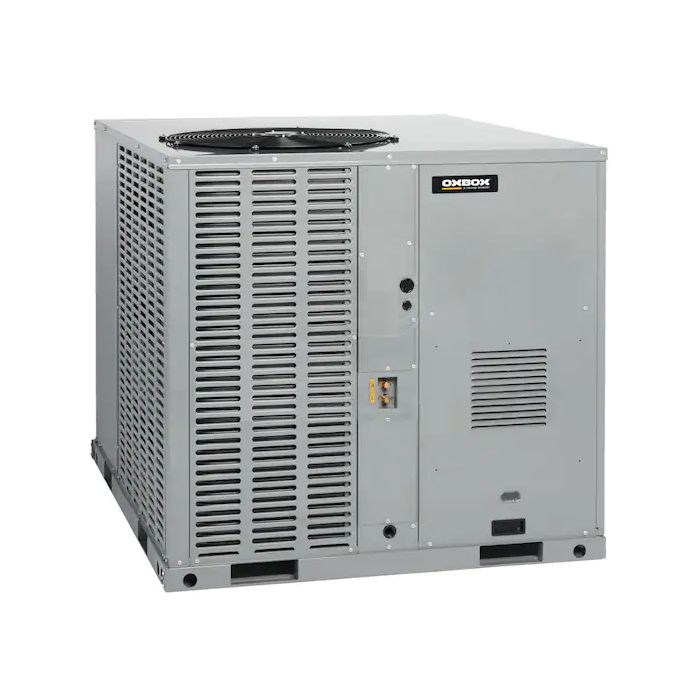

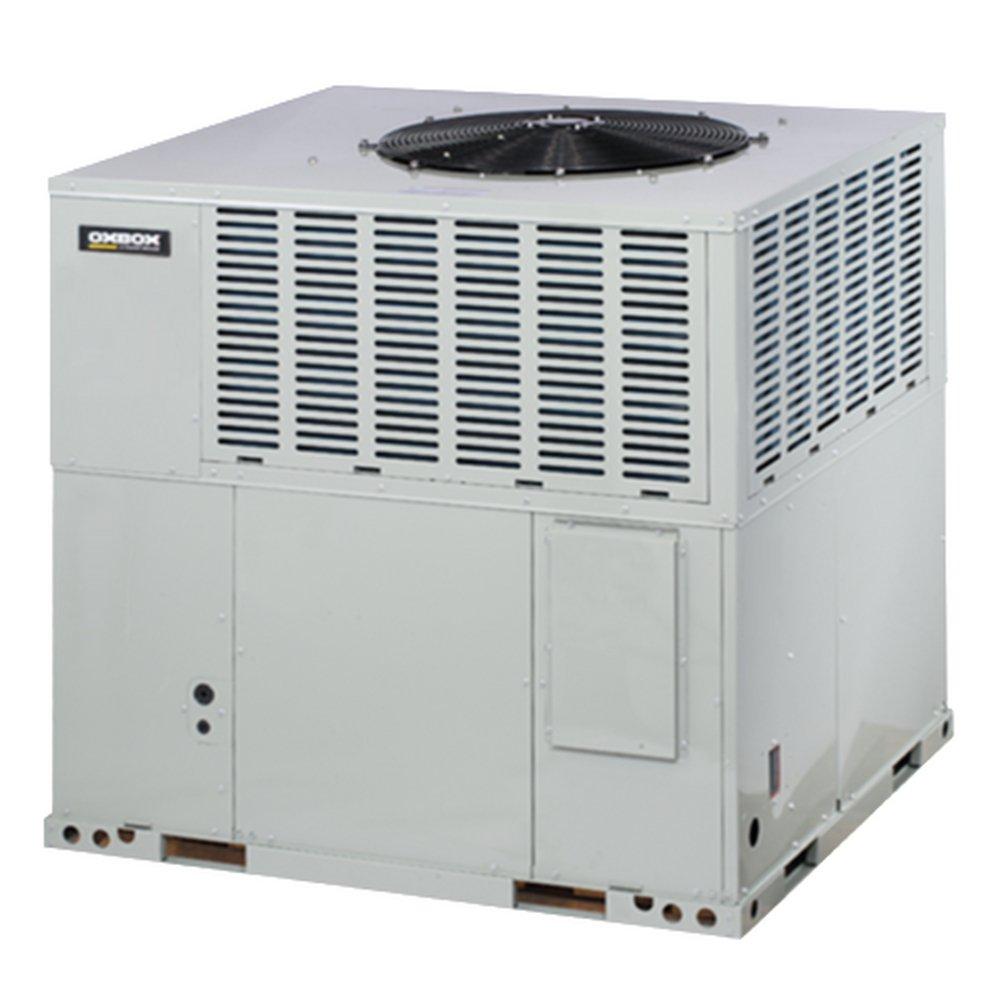

Oxbox J4PG4036B1090A 3 Ton Cooling - 90,000 BTU Heating - 81% AFUE Packaged Gas/Electric Central Air System - 14 SEER - 208/230V

Product Description

The OXBOX J4PG4036B1090A is a 3 ton cooling, 90,000 BTU heating packaged gas/electric central air system. This 14 SEER system features an 81% AFUE rating and R-410A refrigerant. The double deck design minimizes the footprint and weight. It is designed for installation in specific California districts.

• Double deck design to minimize the footprint and weight
• ARI Certified and ETL Listed
• Fully painted cabinet with steel louvers

Product Highlights

This convertible packaged system offers single side access for easy maintenance and is suitable for manufactured or mobile home use.

Product Information

Standard Information

• Brand: OXBOX
• Manufacturer Part Number: J4PG4036B1090A

Technical Specifications

• AFUE: 81%
• SEER: 14
• Refrigerant Type: R-410A
• Voltage Rating: 208/230 V ac
• Depth: 44.625 in
• Width: 35.06 in
• Height: 46.81 in
• Length: 50.69 in
• Sound Level: 60 db(A)
• Product Type: Gas Electric
• Configuration: Convertible
• Ignition Type: Direct Spark
• Catalog Number: J4PG4036B1090A
• Current Rating: 20.2 amp
• Gas Inlet Size: 1/2 NPT in
• Compressor Type: Rotary
• Cooling Capacity: 35000 BTU
• Heating Capacity: 90000 BTU
• Number Of Phases: 1
• Horsepower Rating: 1/6 HP Condenser Fan, 1/2 HP Evaporator Fan
• Specifications Met: ARI Certified, ETL Listed
• Maximum Speed Rating: 825 RPM Condenser Fan, 1050 RPM Evaporator Fan
• Minimum Circuit Amps: 23.9 amp
• Drain Connection Size: 3/4 in
• Cooling Capacity In Tons: 3.0 ton
• Model Number(s): J4PG4036B1090A
• Brand: OxBox
• Type: Gas Heat
• Ton: 3.0 Ton
• Cooling Btu: 36,000
• Heating Input Btu: 90,000
• Heating Output Btu: 72,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Amp(s): 35
• Decibel Level (dB): 60
