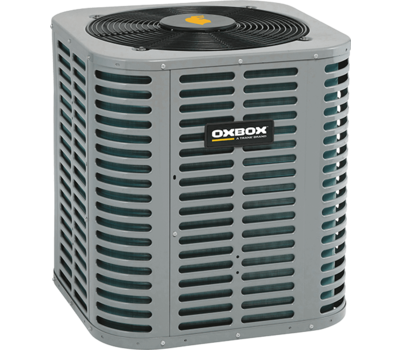

Oxbox J4HP5024E1000A 2 Ton 24000 BTU 14.3 SEER2 Heat Pump

Product Description

The Oxbox J4HP5024E1000A heat pump offers efficient performance for residential HVAC systems. This unit, with its 2-ton capacity and 24000 BTU cooling output, is designed to meet the needs of modern homes.

• Efficient 14.3 SEER2 rating
• Reliable scroll compressor
• Suitable for residential applications

Product Highlights

This Oxbox heat pump model J4HP5024E1000A is known for its energy efficiency and robust performance. Ideal for keeping homes comfortable throughout the year, it utilizes R-410A refrigerant and features a scroll compressor for reliable operation. The unit also includes a maximum fuse rating of 25, ensuring safety and durability.

Product Information

Standard Information

• Brand: Oxbox
• MPN: J4HP5024E1000A
• Manufacturer: Trane, Trane Technologies

Technical Specifications

• SEER: 14.3
• TONS: 2
• Type: HP
• Depth: 27.96 inches
• Width: 27.96 inches
• Height: 24.93 inches
• Max Fuse: 25
• Nominal BTU: 24000
• Weight: 153.56 lbs
• Line Size Liquid/Suction: 3/8 inches x 3/4 inches
• Valve Size Liquid/Suction: 3/8 inches x 3/4 inches
• Voltage Rating: 208 to 230 V AC
• Frequency Rating: 60 Hz
• Flow Rate: 2650 CFM
• Cooling Capacity In Tons: 2 tons
• Compressor Type: Scroll
• Horsepower Rating: 1/6 HP
• Suction Line Size: 3/4 inch
• Refrigerant Type: R-410A
• Specifications Met: AHRI Certified, cETLus Listed
