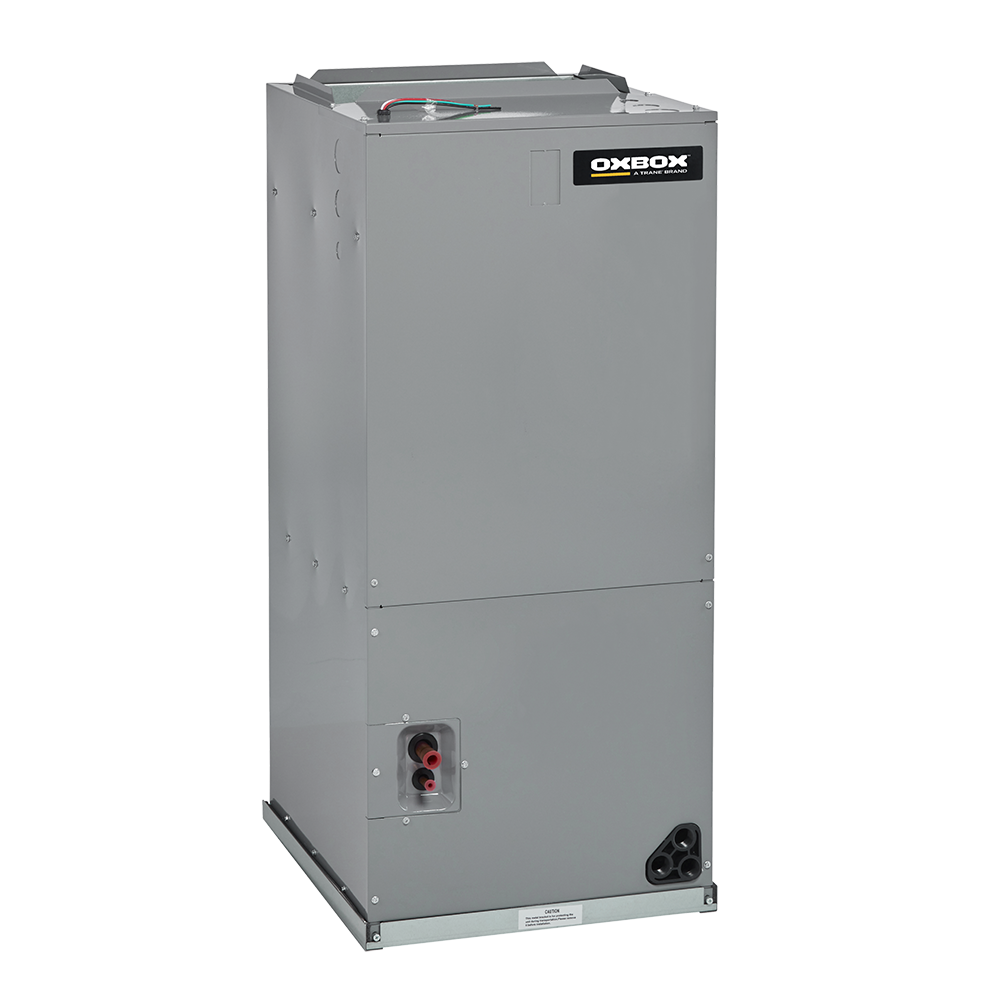

Oxbox J4AH6E60 B A1C00AA - 5.0 Ton - Multi-Position Air Handler ECM Motor - For 16.0 SEER Condensers

Oxbox J4AH6E60A1C00AA - 5.0 Ton - Multi-Position Air Handler ECM Motor - For 16.0 SEER Condensers

Description:
The Oxbox air handler is designed to supplement your air conditioner or heat pump by circulating cooled or heated air throughout your home. Featuring an ECM motor, this model provides powerful circulation without breaking the bank on energy costs. The air handler offers flexible installation options with its multi-position airflow design. An all-aluminum coil provides efficient heat transfer while its painted galvanized steel cabinet resist rust over years of use.

Specification:

Type: Air Handler
Product Line: J4AH6
Refrigerant Type: R-410A
Blower Motor Speed: Multi-Speed
Motor Type: ECM
Configuration: Multi-Position
Installation Location: Indoor

Performance
Capacity: 5.0 Tons
Cooling BTU: 60000
Maximum Air Flow: 2029 CFM
Minimum Air Flow: 825 CFM

Electrical Data
Voltage: 208/230 Volts
Phase: 1
Frequency: 60 Hz

Dimensions
Suction Connection Size: 7/8 Inch
Liquid Connection Size: 3/8 Inch
Product Height: 54 1/2 Inches
Product Width: 22 Inches
Product Depth: 24 Inches
Product Weight: 159 Pounds
Shipping Height: 55 19/24 Inches
Shipping Width: 25 Inches
Shipping Length: 27 17/24 Inches
Shipping Weight: 177 Pounds
