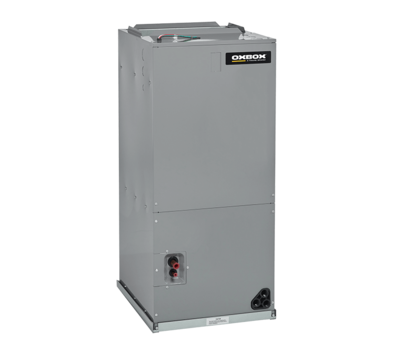

Oxbox J4AH5E60E1C00A 5 Ton 60000 BTU Air Handler ECM Multi-Position R-410a

Product Description

The Oxbox J4AH5E60E1C00A Air Handler offers a reliable solution for residential heating and cooling needs. Designed for easy installation and maintenance, this 5 Ton, 60000 BTU unit features an ECM motor for efficient operation.

• Multi-position design for versatile installation
• Suitable with 13, 14, and 16 SEER models
• Compatible with R-410a refrigerant

Product Highlights

The J4AH5E60E1C00A air handler is ideal for HVAC professionals looking for an adaptable, efficient unit. Its all-aluminum coils and painted galvanized steel cabinet ensure durability and resistance to rust.

Product Information

Standard Information

• Brand: Oxbox
• MPN: J4AH5E60E1C00A
• Model Number: J4AH5E60E1C00A
• Product Name: 5 Ton 60000 BTU ECM Multi-Position R-410a Air Handler
• Voltage Rating: 208 to 230 V AC
• Frequency Rating: 60 Hz
• Refrigerant Type: R-410A
• Cooling Capacity: 60000 BTU

Technical Specifications

• Dimensions: 24 inches deep, 22 inches wide, 54-1/2 inches high
• Weight: 177 lb.
• Cooling Capacity In Tons: 5 tons
• Fan Type: Centrifugal
• Motor Type: ECM
• Sound Level: 50.5
• Liquid Line Size: 3/8
• Suction Line Size: 7/8
• Specifications Met: CETLUS, AHRI Certified
