Description

Product Description

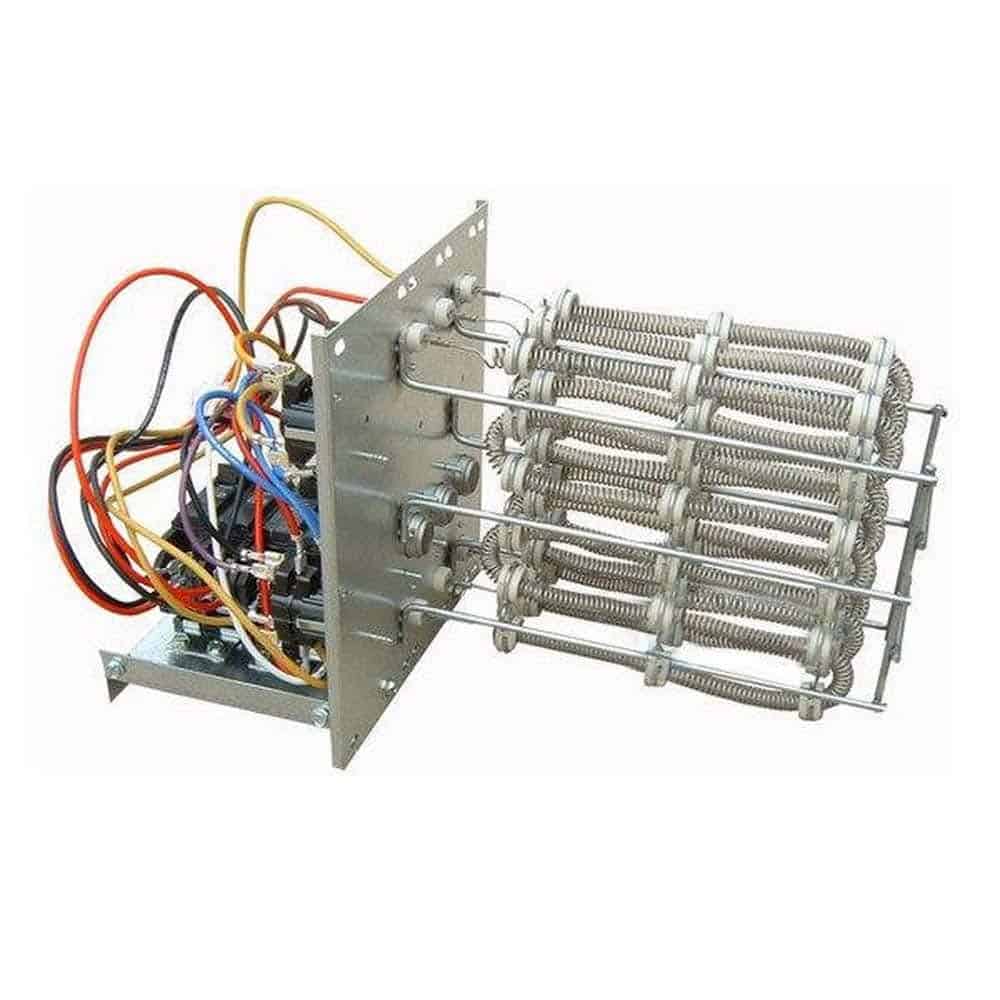

The Oxbox by Trane 5JAYHTR1P10BKA is a 10 kW electric heat kit designed for installation in packaged HVAC units and air handlers. It provides supplemental resistance heating to support heat pump operation at low outdoor temperatures or during peak load conditions. The kit is compatible with R-454B refrigerant, typically operates on 208�230/240 V single-phase power, and interfaces with the unit control logic and safety limits for automatic engagement.

  • 10 kW electric heating capacity for supplemental or auxiliary heat
  • Compatible with R-454B (A2L) refrigerant; typical 208�230/240 V single-phase operation
  • Field-installed, pre-wired and factory-approved accessory that integrates with packaged unit controls and safety limits

Product Highlights

10 kW supplemental electric heat for packaged units and air handlers; R-454B compatible; interfaces with unit controls; replaces Goodman HKTPD101.

Product Information

Standard Information

  • Brand: TRANE
  • Manufacturer Part Number: 5JAYHTR1P10BKA
Technical Specifications
Brand
Oxbox by Trane
MPN
5JAYHTR1P10BKA
SKU
WHD-OXB-00-10K-00S2-B001-24
Heating Capacity
10 kW
Power
10 kW
Refrigerant
R-454B (A2L, mildly flammable)
Input Voltage
208�230/240 V
Phase
Single phase
Intended Application
Packaged unit / air handler; supplemental/auxiliary heat
Installation
Field-installed; pre-wired and factory-approved; integrates with packaged unit thermostat, wiring harness, and control board
Compatibility
Designed for systems using R-454B refrigerant; compatible replacement options for Goodman, Rheem, Carrier models
Replacement For
Goodman HKTPD101
Use Case
Residential and light-commercial auxiliary heating; cold climates and high-load conditions
Condition
New
Safety
Requires compliance with A2L refrigerant safety codes, including clearances, leak detection, and use of compatible electrical components
