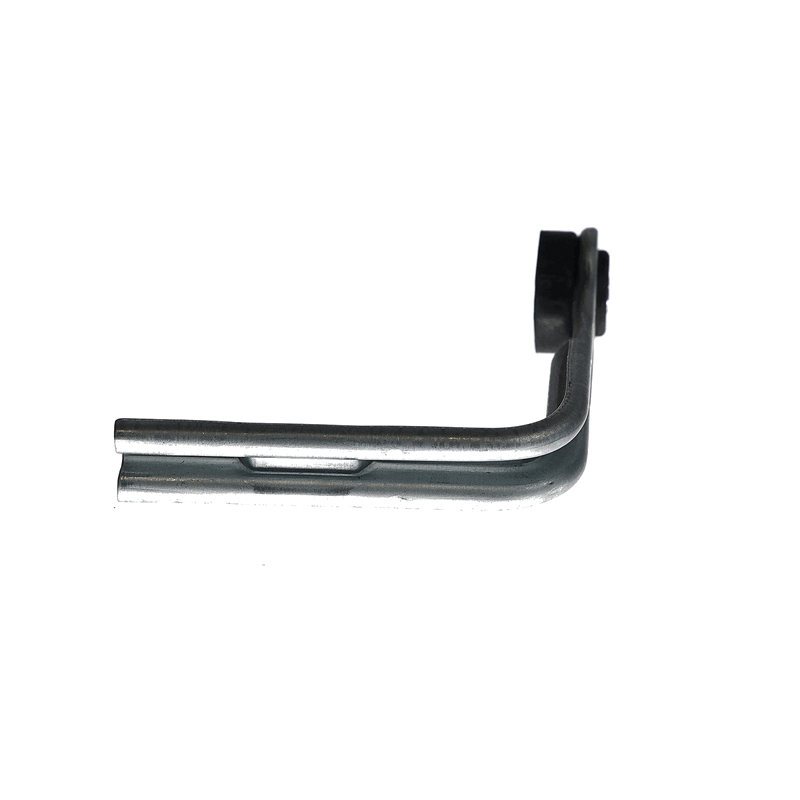

Oxbox brk04781 Motor Bracket Assembly

Product Description

The OXBOX brk04781 is a motor bracket assembly designed to secure and support blower or condenser fan motors within HVAC equipment. This stamped metal bracket provides a rigid mounting platform that keeps the motor properly aligned during operation, reducing vibration and extending motor service life. Measuring 6.125 inches in length, 5 inches in width, and 2.125 inches in height, the assembly fits within the compact spatial constraints typical of residential HVAC cabinets. At 0.12 pounds, it is lightweight yet structurally sound for standard motor mounting loads. HVAC technicians install this bracket as an OEM-style replacement during motor swap-outs or cabinet repairs.

This bracket assembly is suited for residential HVAC applications where the original motor mounting hardware has become damaged, corroded, or bent out of specification. It is appropriate for use in units where the motor must be firmly secured to the cabinet frame or mounting deck to maintain proper airflow alignment and prevent operational noise. Technicians performing blower motor or condenser fan motor replacements will often replace the bracket assembly at the same time to ensure a clean, properly aligned installation.

Key Features

• Compact footprint: 6.125 x 5 x 2.125 inches fits standard residential HVAC cabinet motor bays
• Lightweight at 0.12 pounds, minimizing added load on the equipment cabinet
• OEM-style replacement designed to restore factory motor mounting geometry
• Rigid construction supports proper motor alignment and reduces operational vibration

Compatibility

Designed as an OEM-style replacement motor bracket assembly for OXBOX residential HVAC equipment. Consult equipment documentation or cross-reference by MPN to confirm fitment before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing or installing any motor bracket hardware. Confirm the replacement bracket is properly seated and all fasteners are secured before restoring power and returning the system to service. Follow applicable local mechanical codes and manufacturer service documentation throughout the repair.

Technical Specifications

• Length: 6.125 inches
• Width: 5 inches
• Height: 2.125 inches
• Weight: 0.12 pounds

Standard Information

• Brand: OXBOX
• Manufacturer Part Number: brk04781
