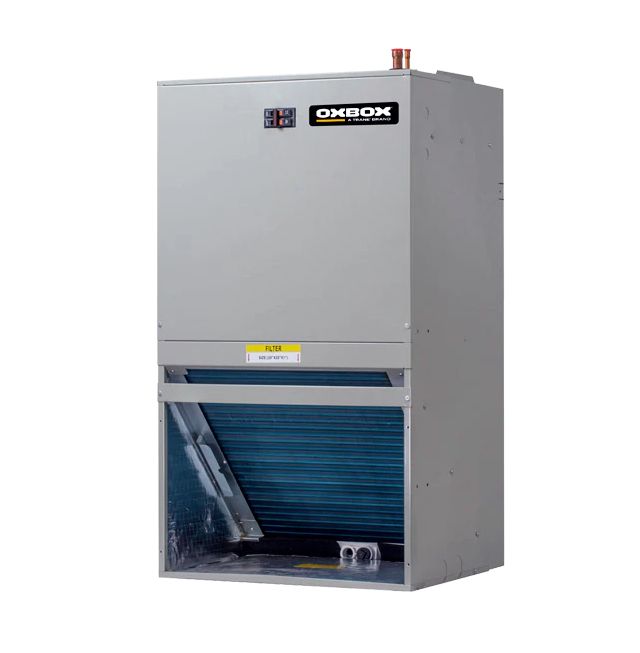

Oxbox 5JMM5A0B30M21S Wall Mount Air Handler 2.5 Ton Ecm Motor R454B Front Return

Product Description

The Oxbox 5JMM5A0B30M21S is a 2.5-ton wall-mount air handler built for residential split-system heat pump applications. It uses an ECM (electronically commutated motor) for variable-speed airflow control, which improves efficiency and reduces energy consumption compared to standard PSC motors. The unit is designed for use with R454B refrigerant, aligning with current low-GWP refrigerant requirements. It features a front return configuration as the factory default, with a built-in filter rack included. ETL Listed and AHRI Certified, this air handler is a factory-matched component intended for licensed HVAC installation.

The 5JMM5A0B30M21S is designed for residential wall-mount installation, including closet and surface-wall configurations. It is matched for use with the J5HP5030A1000AA heat pump outdoor unit as part of a 14.3 SEER2-rated system. The unit supports bottom return conversion, allowing the installer to redirect return air from the factory front-return position to a bottom-return configuration depending on the installation layout. This flexibility makes it suitable for a range of residential spaces where floor or closet installations are common.

Key Features

• ECM motor provides variable-speed airflow control for improved efficiency and quieter operation
• Wall-mount design with bracket attachment supports standard 2x4 stud wall structure
• Front return as factory default with field-convertible bottom return option
• Built-in filter rack included for simplified filter service access
• Compatible with R454B refrigerant for compliance with low-GWP refrigerant standards
• ETL Listed and AHRI Certified

Compatibility

Matched for use with the Oxbox J5HP5030A1000AA heat pump outdoor unit as part of a 14.3 SEER2 residential heat pump split system. Consult AHRI certificate data for additional matched system combinations.

Installation Notes

Installation must be performed by a licensed HVAC technician. The unit mounts to a wall bracket anchored to 2x4 stud framing using appropriate wood screws. Disconnect and lock out all electrical power before servicing or mounting the unit. R454B refrigerant handling requires EPA Section 608 certification and proper recovery equipment.

Technical Specifications

• Tonnage: 2.5 tons
• System Efficiency: 14.3 SEER2 (when matched with J5HP5030A1000AA)
• Motor Type: ECM
• Refrigerant: R454B
• Return Configuration: Front return (bottom return field-convertible)
• Width: 22 inches
• Height: 39.5 inches
• Depth: 19 inches
• Color: Grey
• Certifications: ETL Listed, AHRI Certified

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: 5JMM5A0B30M21S
