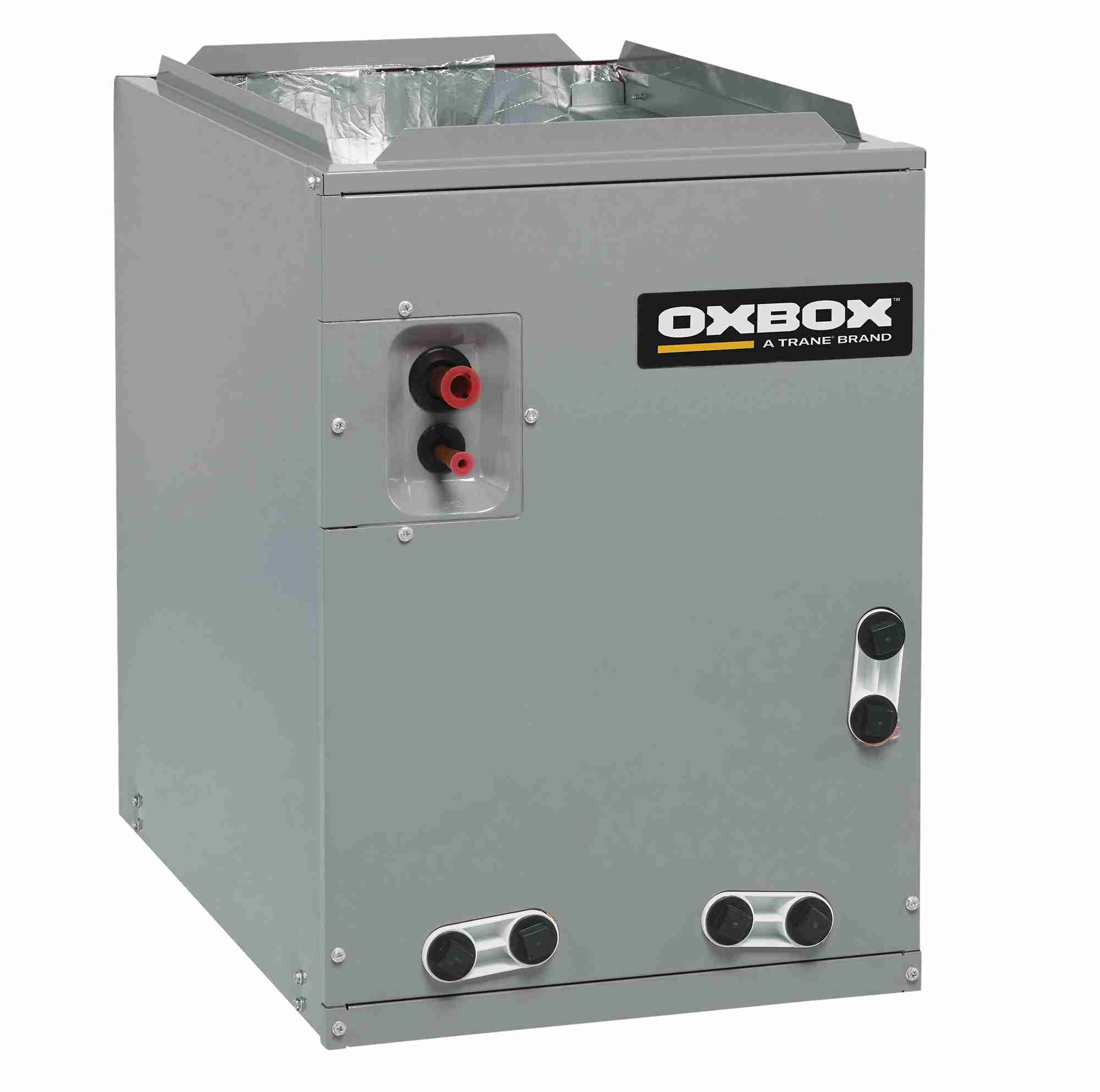

Oxbox 5JMM4A0B36S31S Wall Mount Air Handler 3 Ton Psc Motor R-454B

Product Description

The Oxbox 5JMM4A0B36S31S is a 3-ton wall-mount air handler designed for residential split-system cooling and heat pump applications. It uses a PSC (permanent split capacitor) direct-drive motor and is rated for use with R-454B refrigerant, reflecting current low-GWP refrigerant requirements. The unit features an all-aluminum evaporator coil housed in a painted metal cabinet with foil-faced insulation, keeping the assembly compact enough for closet or attic installs. Licensed HVAC technicians install this unit as the indoor section of a split system, pairing it with a compatible outdoor condensing unit or heat pump.

This air handler is built for residential upflow wall-mount installations and is adaptable to 13, 14, and 16 SEER system configurations. The JMM4 series covers 1.5 to 3 ton capacities, and the 5JMM4A0B36S31S represents the 3-ton position in that lineup. It is suited for installations in small mechanical closets, open attics, and similar constrained spaces where a wall-mount configuration is required. Optional auxiliary electric heaters in 5 kW, 8 kW, and 10 kW ratings are available as accessories for applications requiring supplemental heat.

Key Features

• 3-ton (36,000 BTU/h) cooling capacity for residential split systems
• PSC direct-drive blower motor
• R-454B refrigerant compatible, meeting current low-GWP refrigerant standards
• All-aluminum evaporator coil construction for corrosion resistance
• Painted metal cabinet with foil-faced insulation
• Adaptable to 13, 14, and 16 SEER system configurations
• Compatible with optional auxiliary electric heat kits (5 kW, 8 kW, 10 kW)

Compatibility

Designed for use in residential split-system and heat pump installations requiring a 3-ton wall-mount air handler with PSC motor. This unit is part of the Oxbox JMM4 series and is adaptable to 13, 14, and 16 SEER rated systems. Suitable for mobile home applications per manufacturer documentation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes and the manufacturer installer guide. Disconnect and lock out all electrical power before servicing or making refrigerant connections. Refrigerant line connections are copper sweat type; condensate drain connections are 3/4 inch female NPT for both primary and auxiliary drains. Do not pressurize or charge the system with any refrigerant other than R-454B as specified for this unit.

Technical Specifications

• Tonnage: 3 tons
• Cooling Capacity: 36,000 BTU/h
• Motor Type: PSC (Permanent Split Capacitor) Direct Drive
• Refrigerant: R-454B
• Coil Material: All-Aluminum
• Cabinet: Painted metal with foil-faced insulation
• Drain Connection: 3/4 inch Female NPT (primary and auxiliary)
• Application: Residential wall-mount, upflow
• Available Auxiliary Heat: 5 kW, 8 kW, 10 kW (accessory kits)

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: 5JMM4A0B36S31S
