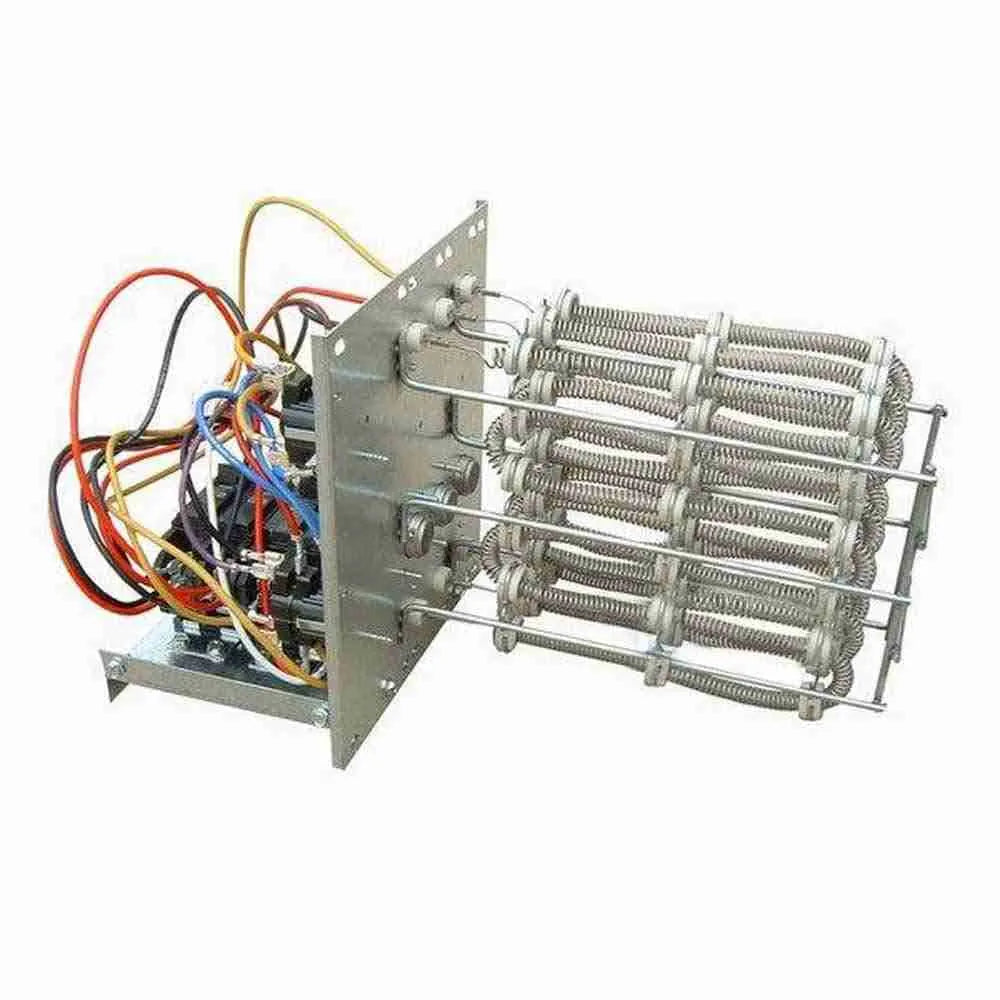

Oxbox 5JAYHTR1J05BKA Electric Heat Kit 5 Kw Air Handler

Product Description

The Oxbox 5JAYHTR1J05BKA is a 5 kW electric heat kit designed for use with compatible Oxbox air handler systems. It provides supplemental or primary electric resistance heating within a ducted air handler installation. Licensed HVAC technicians install this kit as part of a split or heat pump system where auxiliary heat is required. The kit integrates into the air handler cabinet, allowing the blower to distribute conditioned air through the existing duct system. At 5 kW, it delivers a measured heating output suited for residential and light commercial applications where supplemental electric heat is the specified heat source.

This heat kit is intended for installation in Oxbox multi-positional air handlers, including upflow, downflow, and horizontal configurations. It is well suited for residential split systems and heat pump applications where supplemental electric resistance heat is needed during low ambient conditions or as the sole heat source. The kit is compatible with systems utilizing R-454B refrigerant-based air handlers per available product data, making it relevant for current-generation equipment installations.

Key Features

• 5 kW electric resistance heating output for supplemental or primary heat
• Designed for installation inside compatible Oxbox air handler cabinets
• Supports multi-positional air handler applications including upflow, downflow, and horizontal
• Suitable for residential split system and heat pump configurations
• Compatible with current-generation R-454B air handler platforms per available product data

Compatibility

Designed as an OEM-style electric heat kit for compatible Oxbox multi-positional air handler units. Verify model number compatibility against the air handler installation guide before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all electrical power to the air handler before installing or servicing the heat kit. Follow the air handler installer guide for electric kit MCA and MOP data to properly size the circuit breaker and wiring. Do not energize the heat kit without confirming the blower is operational, as operating electric resistance elements without airflow will cause damage.

Technical Specifications

• Heating Capacity: 5 kW
• Product Type: Electric Heat Kit
• Application: Air Handler Supplemental or Primary Electric Heat

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: 5JAYHTR1J05BKA
