Oxbox 5JAYHTR1A08BK Air Handler Electric Heat Kit 8 Kw R-454B Compatible

Product Description

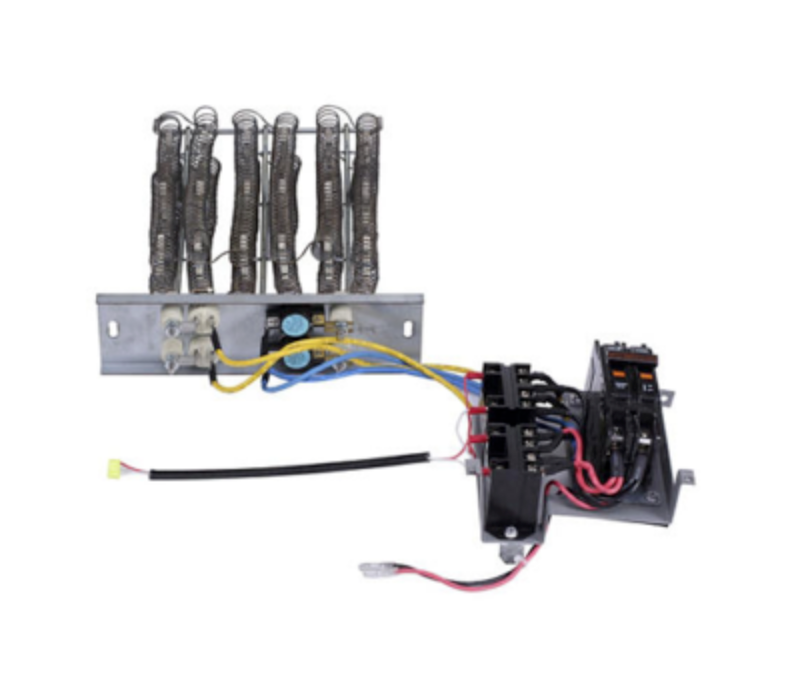

The Oxbox 5JAYHTR1A08BK is an 8 kilowatt electric auxiliary heat kit designed for installation inside compatible residential air handler systems. It delivers supplemental and emergency electric heat when outdoor temperatures drop below the efficient operating range of a heat pump. Built to integrate directly into the air handler cabinet, this kit is rated for 208/230V single-phase 60 Hz power and draws a minimum circuit amperage of 7.5 amps with a maximum circuit breaker rating of 40 amps. Licensed HVAC technicians install this component as part of a heat pump or air handler system upgrade or replacement. Oxbox is a Trane brand, and this kit is engineered to meet R-454B refrigerant system compatibility standards.

The 5JAYHTR1A08BK is suited for residential heat pump and air handler installations where supplemental electric heat is required. It functions as an auxiliary heat source during low-ambient conditions and as an emergency heat backup if the heat pump compressor is taken offline. Submittal sheet data from Oxbox system documentation lists this kit in configurations compatible with select Oxbox J5AH-series and related air handler models. Refer to the specific air handler submittal sheet to confirm fitment before ordering.

Key Features

• 8 kW electric heating capacity for supplemental and emergency heat operation
• Rated for 208/230V single-phase 60 Hz electrical supply
• Minimum circuit amperage of 7.5 amps with 40-amp maximum circuit breaker rating
• Compatible with R-454B refrigerant system air handlers
• Designed to install directly into the air handler cabinet for an integrated fit
• Oxbox by Trane brand engineering for OEM-level reliability

Compatibility

Listed in Oxbox submittal documentation for select J5AH-series air handler models. Confirm compatibility using the specific air handler model submittal sheet before installation. Do not assume fitment across all Oxbox or Trane air handler platforms.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Electrical Code and all applicable local codes. Disconnect and lock out all electrical power to the air handler before installing or servicing this heat kit. Verify that the branch circuit is sized to meet the minimum circuit amperage and maximum overcurrent protection requirements listed on the equipment nameplate. Follow the air handler manufacturer installation instructions for heat kit insertion, wiring connections, and any required jumper or dip switch configuration.

Technical Specifications

• Heating Capacity: 8 kW
• Voltage: 208/230 volts
• Phase: Single-phase
• Frequency: 60 Hz
• Minimum Circuit Amps: 7.5 amps
• Maximum Circuit Breaker: 40 amps
• Refrigerant Compatibility: R-454B

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: 5JAYHTR1A08BK
