Oxbox 5-Ton 60000 BTU R-454B 14.3 SEER2 Split AC System - J5AC5060A1000+J5AH5E61A1C00

Description

This comprehensive bundle features the Oxbox J5AC5060A1000 air conditioner and the Oxbox J5AH5E61A1C00 air handler, designed to work seamlessly together for optimal cooling and comfort in larger residential or light commercial spaces. The 5-ton air conditioner offers a high SEER2 efficiency rating of 14.3, while the variable speed ECM air handler ensures precise airflow control, enhancing energy efficiency and comfort. Together, these units provide a robust solution for ducted split-system installations, utilizing the next-generation R-454B refrigerant for environmentally friendly operation.

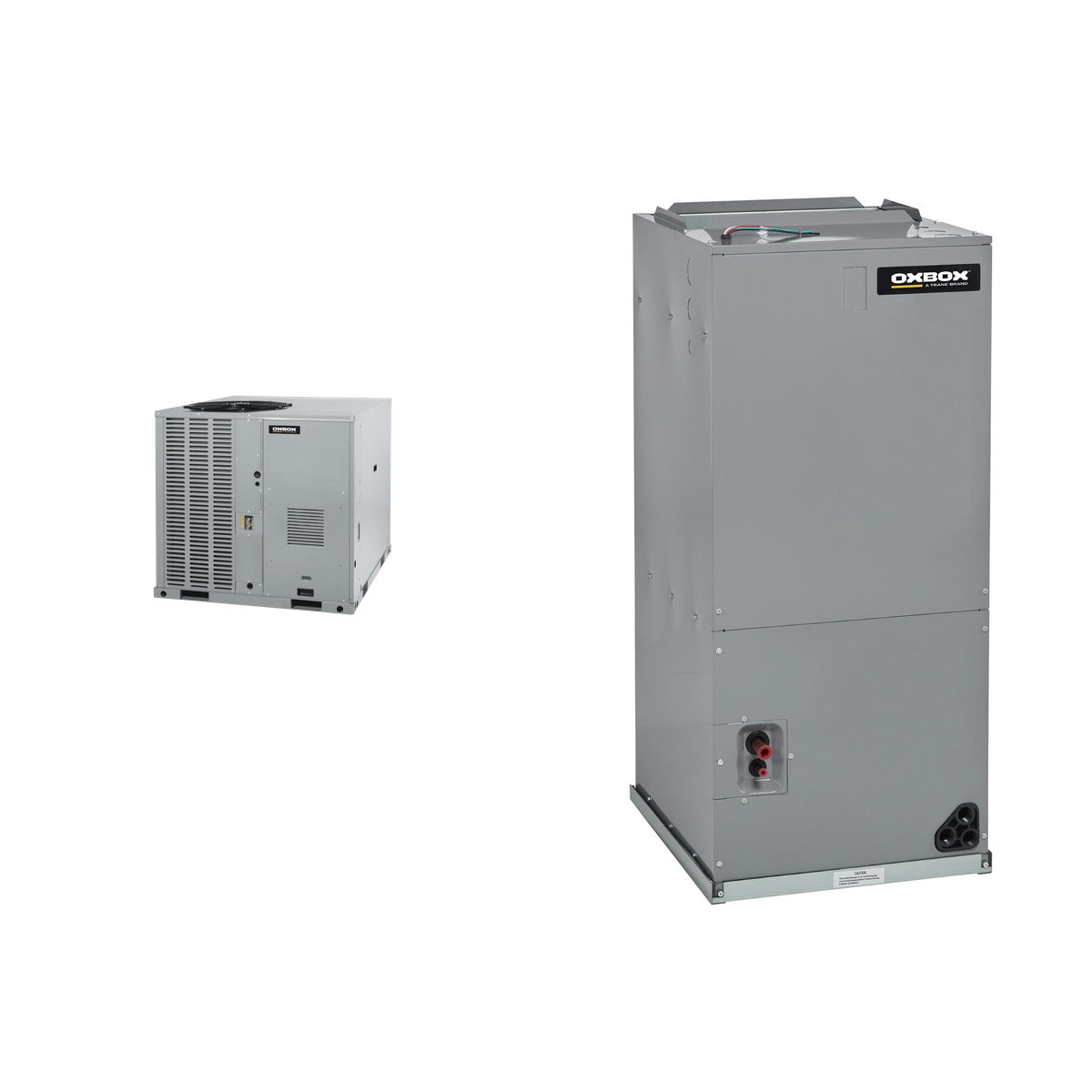

What's Included

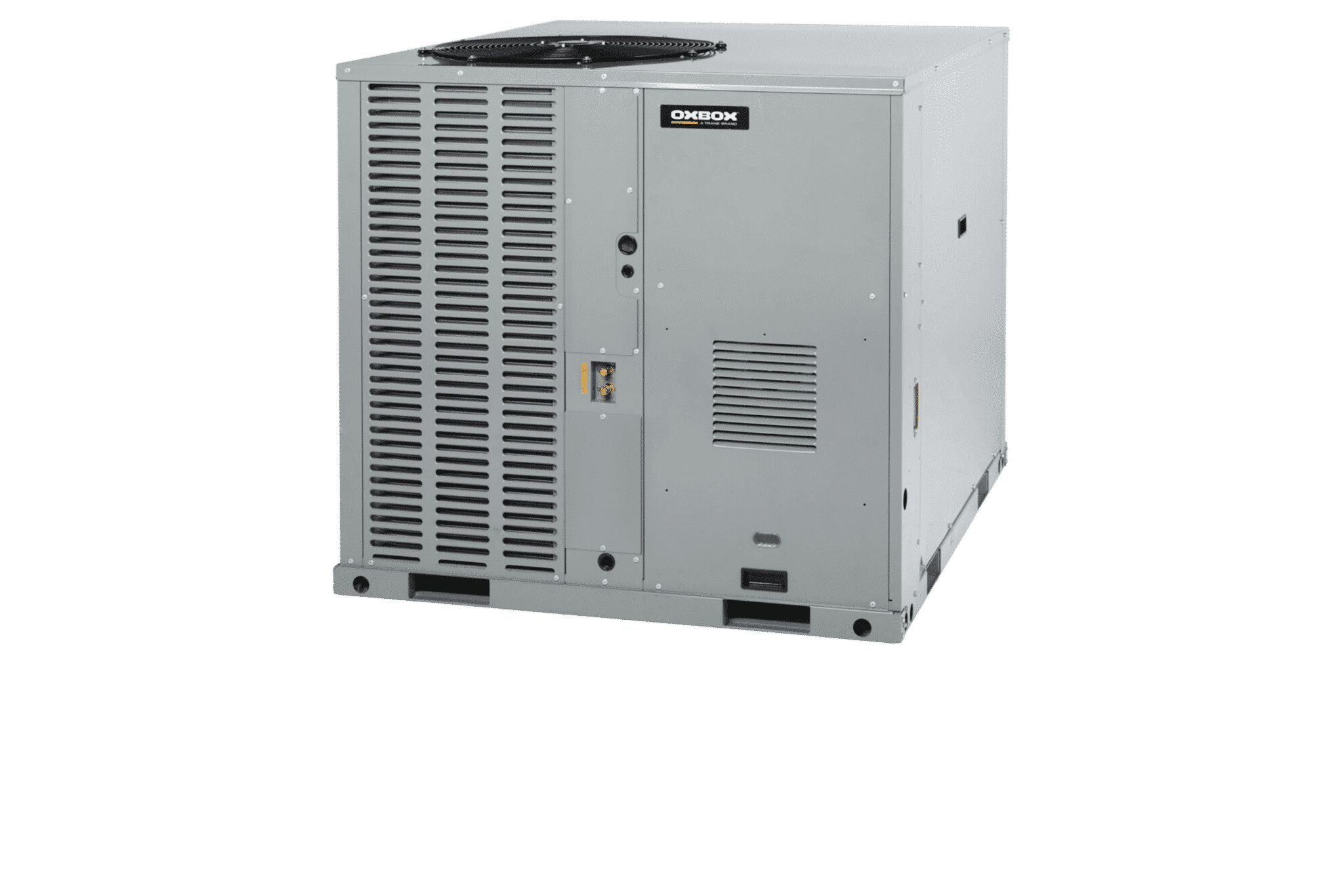

• Oxbox J5AC5060A1000 - Air Conditioner 5 Ton 14.3 SEER2 R-454B (Qty x1)
• Oxbox J5AH5E61A1C00 - Air Handler 5 Ton Variable Speed ECM R-454B (Qty x1)

Key Details

• Weight of Bundle: 260 lb (Oxbox 200 lb + Oxbox 60 lb)
• Cooling Capacity: 5 tons
• SEER2: 14.3
• Refrigerant Type: R-454B (A2L)
• Maximum Overcurrent Protection (MOCP): 64.6 amps
• Air Handler Dimensions: 54.5 in (H) x 22 in (W) x 24 in (D)
• Air Conditioner Dimensions: 33-3/16 in (H) x 29-1/8 in (W) x 29-1/8 in (D)
• Blower Motor: Variable Speed ECM

Use & Compatibility

This bundle is intended for ducted split-system cooling applications, suitable for larger residential or light commercial environments. The air conditioner and air handler are designed to work together with R-454B refrigerant, ensuring compliance with current efficiency standards and regulatory requirements. Installation should be performed by licensed HVAC technicians familiar with A2L refrigerant handling and local codes.
