Oxbox 5-Ton 60000 BTU R-454B 14.3 SEER2 Split AC System - J5AC5060A1000+J5AH4P60A1C00

Description

This comprehensive bundle includes the Oxbox J5AC5060A1000 Air Conditioner and the Oxbox J5AH4P60A1C00 Air Handler, both designed to work seamlessly together for optimal cooling performance in larger residential or light-commercial applications. The air conditioner features a robust 5-ton capacity with a 14.3 SEER2 rating, ensuring energy efficiency and compliance with current standards. Paired with the multi-speed air handler, this system is capable of delivering conditioned air effectively across various duct configurations, making it an ideal choice for those looking to upgrade their HVAC setup.

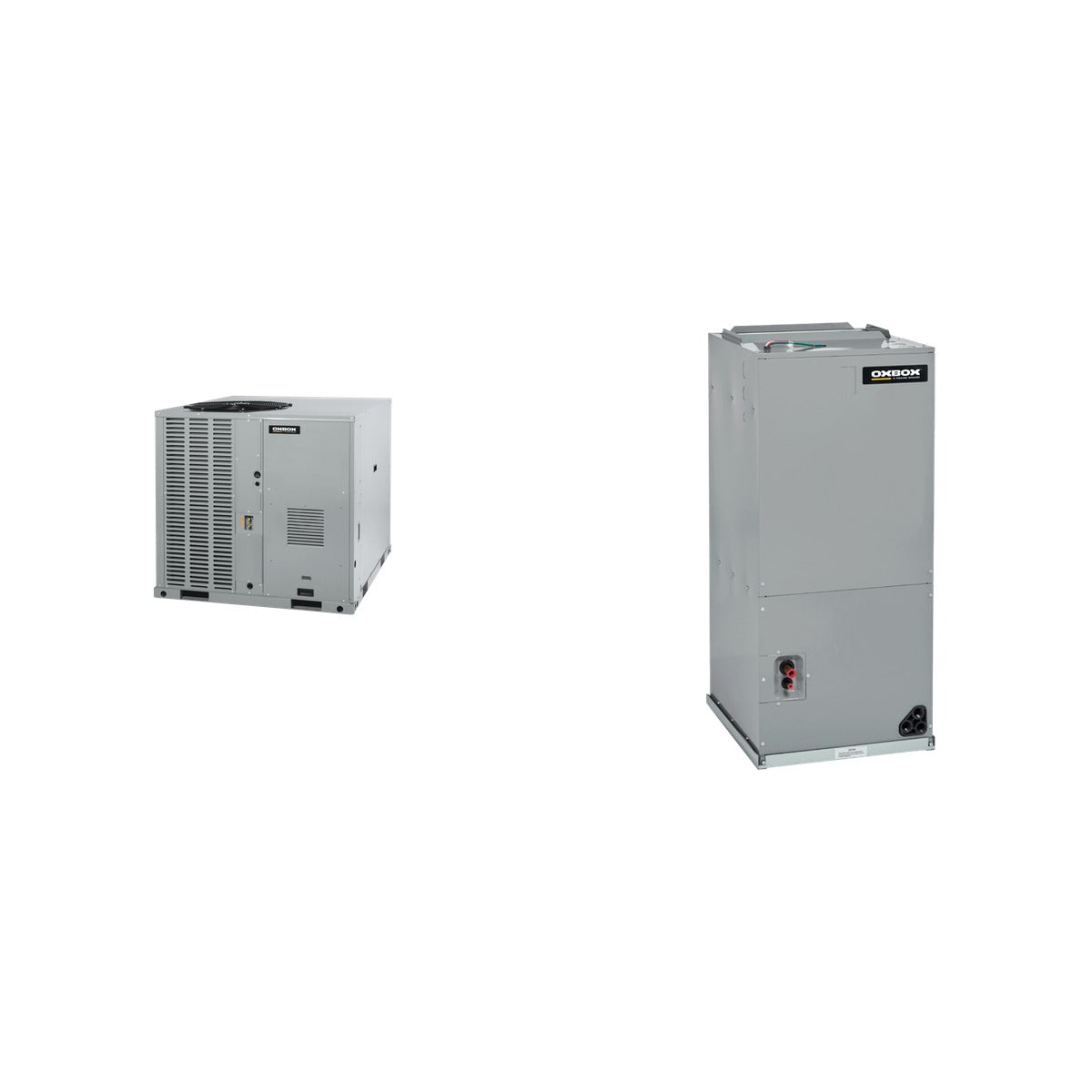

What's Included

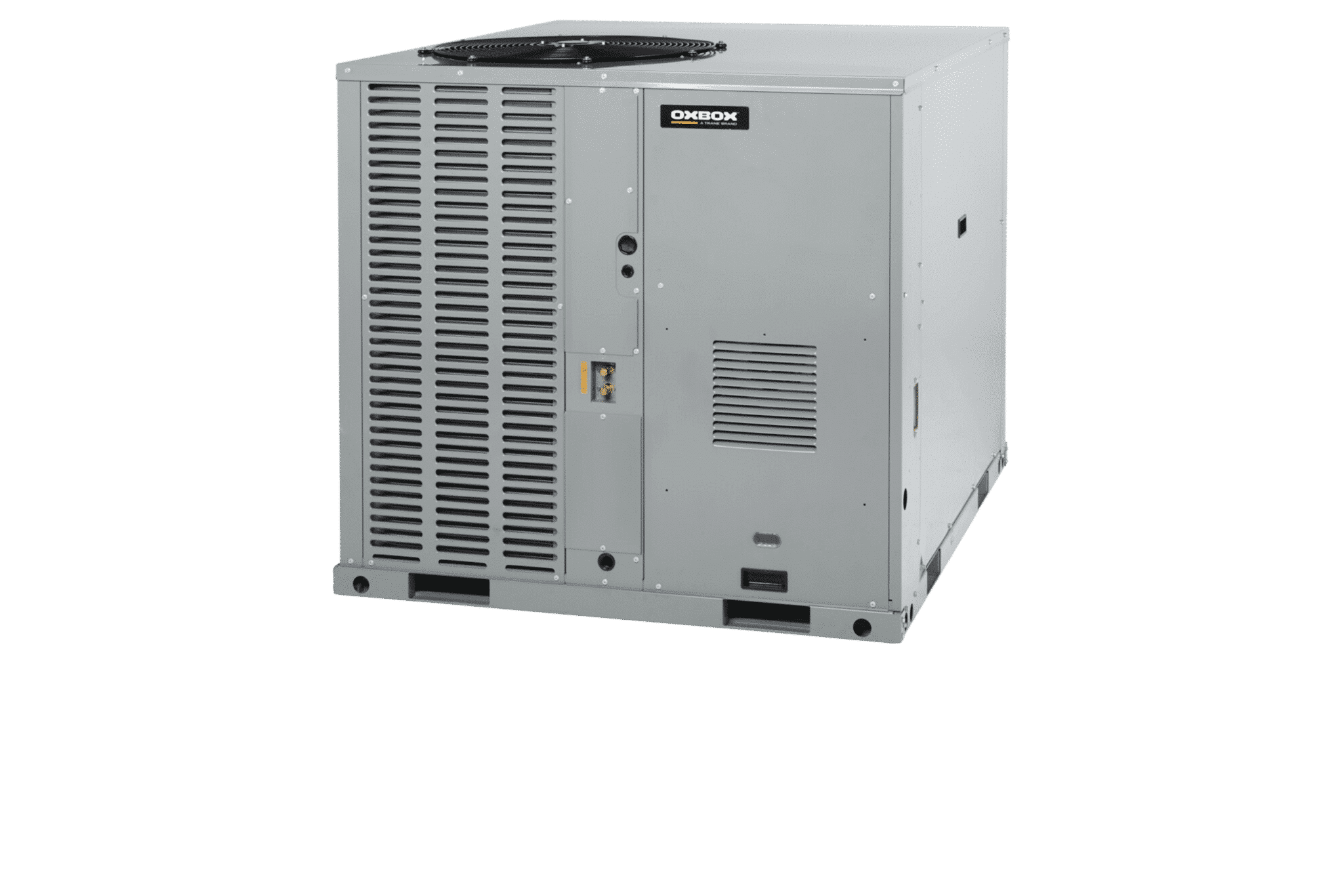

• Oxbox J5AC5060A1000 - Air Conditioner 5 Ton 14.3 SEER2 R-454B (Qty x1)

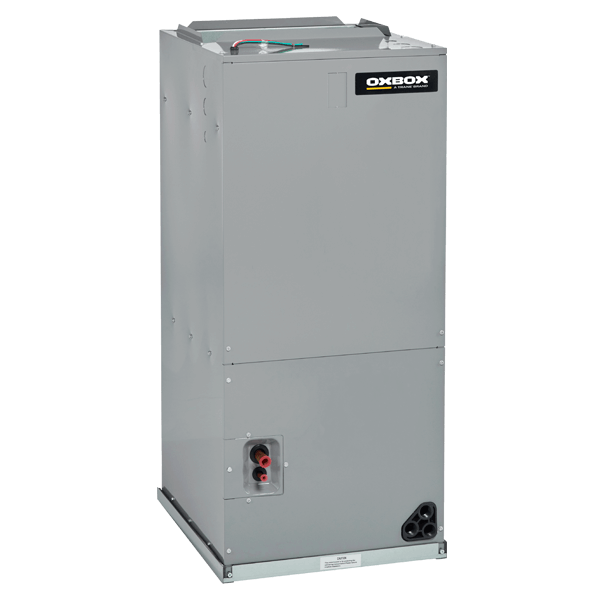

• Oxbox J5AH4P60A1C00 - Air Handler 5 Ton Multi-speed PSC Blower R-454B Refrigerant (Qty x1)

Key Details

• Weight of Bundle: 260 lb (Oxbox 200 lb + Oxbox 60 lb)
• Cooling Capacity: 5 tons
• SEER2: 14.3
• Refrigerant Type: R-454B (A2L)
• Air Handler MOCP: 15 amps
• Air Conditioner MOCP: 64.6 amps
• Air Handler Dimensions: 54.5 in x 22 in x 24 in
• Air Conditioner Dimensions: 33-3/16 in x 29-1/8 in x 29-1/8 in

Use & Compatibility

This bundle is intended for residential split-system cooling and heat pump applications, designed to work with R-454B (A2L) refrigerant systems. The air conditioner and air handler must be installed by licensed HVAC technicians to ensure compliance with safety and efficiency standards. Verify compatibility with existing ductwork and refrigerant lines before installation.
