Oxbox 5-Ton 60000 BTU R-454B 14.3 SEER2 Gas/Electric Split System - J5AC5060A1000+J962V100CU5SA+J5MXCC009AC6HC

Description

This comprehensive HVAC bundle includes everything you need for efficient heating and cooling in larger residential or light-commercial applications. The Oxbox J5AC5060A1000 Air Conditioner provides a robust 5-ton cooling capacity with a 14.3 SEER2 rating, ensuring energy efficiency and optimal performance. Complementing this is the Oxbox J962V100CU5SA Gas Furnace, delivering 100,000 BTU/h with a 96% AFUE rating, designed to maximize heating efficiency and comfort. The bundle also features the Oxbox J5MXCC009AC6HC Cased Evaporator Coil, which supports multi-position installation and is compatible with R-454B refrigerant, making it an ideal choice for modern HVAC systems. Together, these components create a powerful and efficient climate control solution for your home.

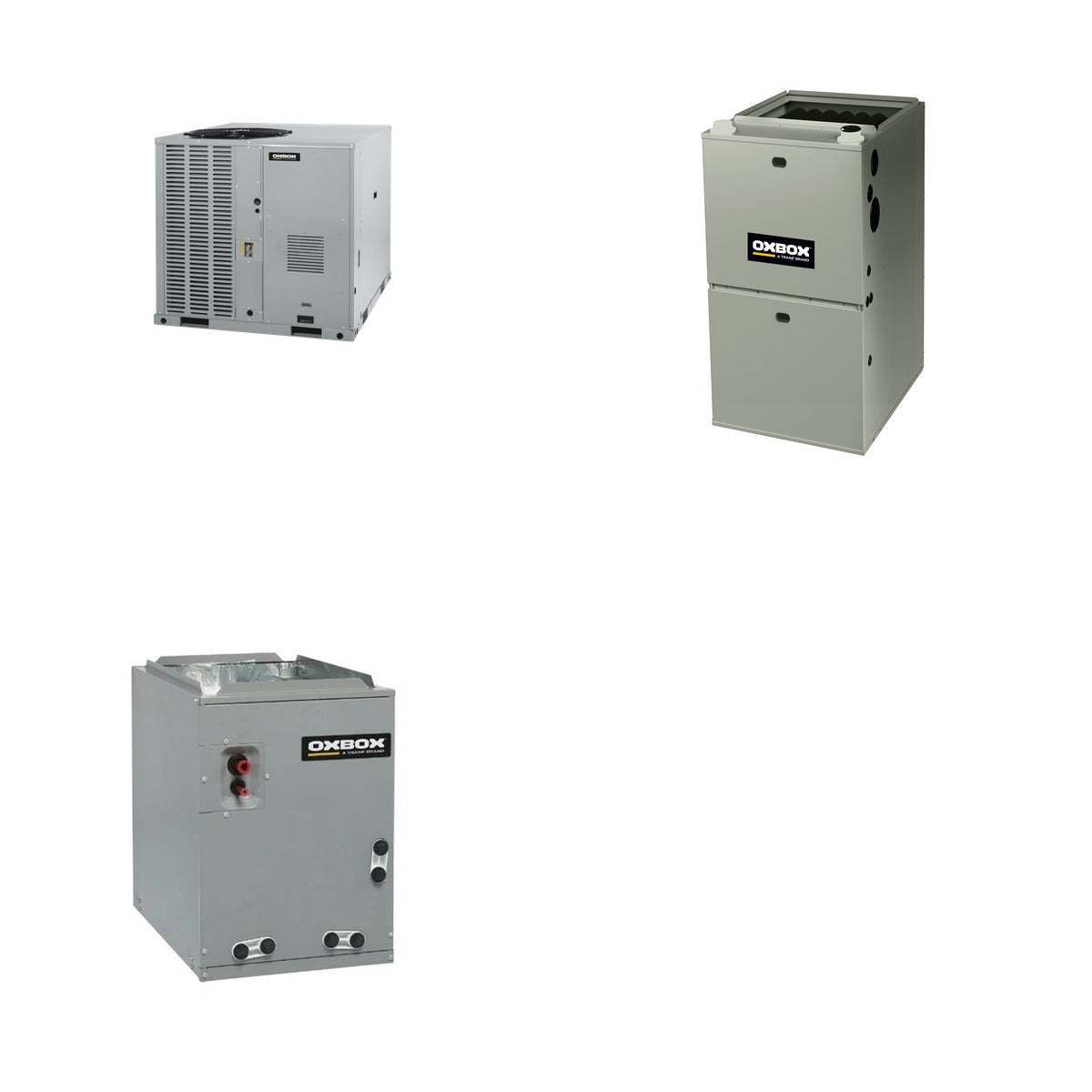

What's Included

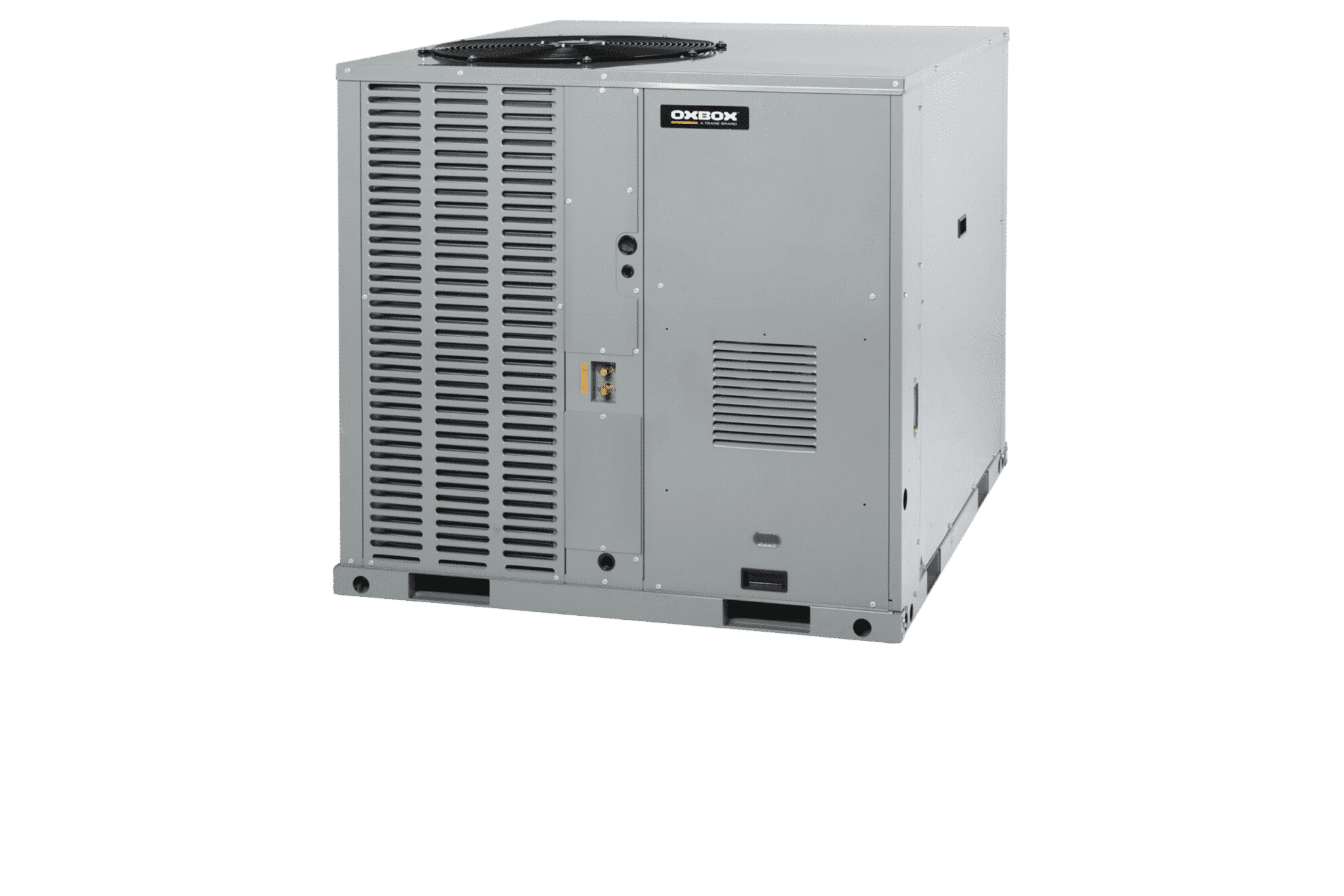

• Oxbox J5AC5060A1000 - Air Conditioner 5 Ton 14.3 SEER2 R-454B (Qty x1)
• Oxbox J962V100CU5SA - Gas Furnace 100000 Btu/h 96 Afue Two-stage Variable Speed Ecm (Qty x1)
• Oxbox J5MXCC009AC6HC - 3.0 - 5.0 Ton Multi-Position R-454B All-Aluminum Cased Evaporator Coil (C-Cabinet) (Qty x1)

Key Details

• Weight of Bundle: 412 lb (Oxbox 200 lb + Oxbox 130 lb + Oxbox 82 lb)
• Cooling Capacity: 5 tons
• Heating Capacity: 100,000 BTU/h
• Efficiency Rating: 14.3 SEER2 (AC), 96% AFUE (Furnace)
• Refrigerant Type: R-454B (A2L)
• Blower Motor: Variable Speed ECM (Furnace)
• Dimensions: AC - 33-3/16" x 29-1/8" x 29-1/8"; Furnace - 34.5" x 21" x 28"; Coil - 21" W x 21" D x 30" H
• Construction: All-Aluminum (Coil)

Use & Compatibility

This bundle is designed for residential forced-air heating and cooling applications, suitable for larger homes or light-commercial spaces. The air conditioner and gas furnace work together to provide efficient climate control, while the evaporator coil ensures optimal refrigerant flow and airflow. Verify compatibility with existing ductwork and system requirements for seamless installation.
