Oxbox 5-Ton 60000 BTU R-454B 14.3 SEER2 Condenser & Coil System - J5AC5060A1000+J5MXCD010AC6HC+5AYTXVH3A6000A

Description

This comprehensive HVAC bundle is designed for larger residential or light-commercial cooling applications, providing everything you need for an efficient and reliable air conditioning system. The Oxbox J5AC5060A1000 air conditioner serves as the powerful outdoor condensing unit, while the J5MXCD010AC6HC evaporator coil complements it with its multi-position design and all-aluminum construction for enhanced durability. To ensure optimal refrigerant flow, the 5AYTXVH3A6000A TXV kit is included, specifically designed for systems utilizing R-454B refrigerant. Together, these components deliver high efficiency and performance, meeting modern energy standards while ensuring compatibility and ease of installation.

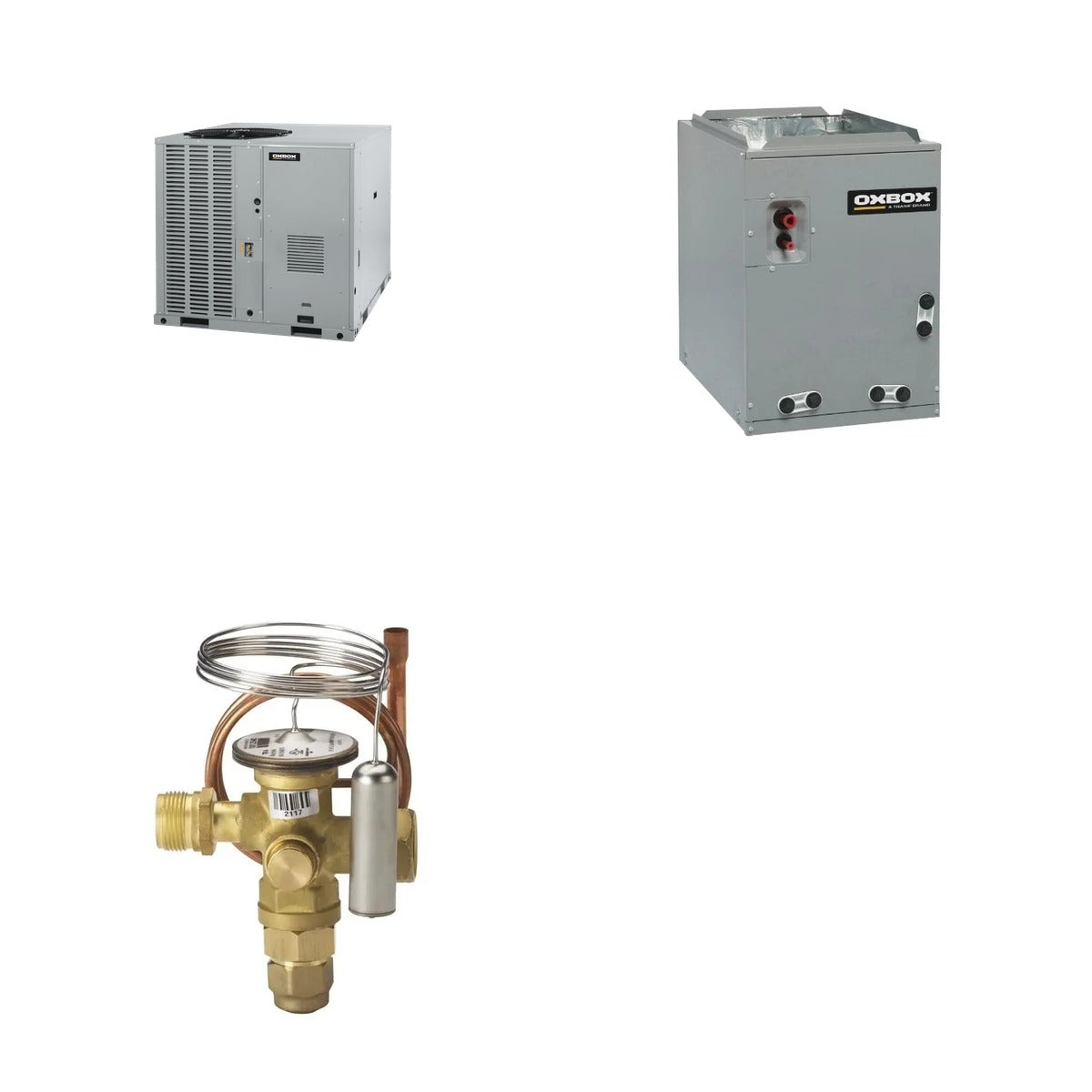

What's Included

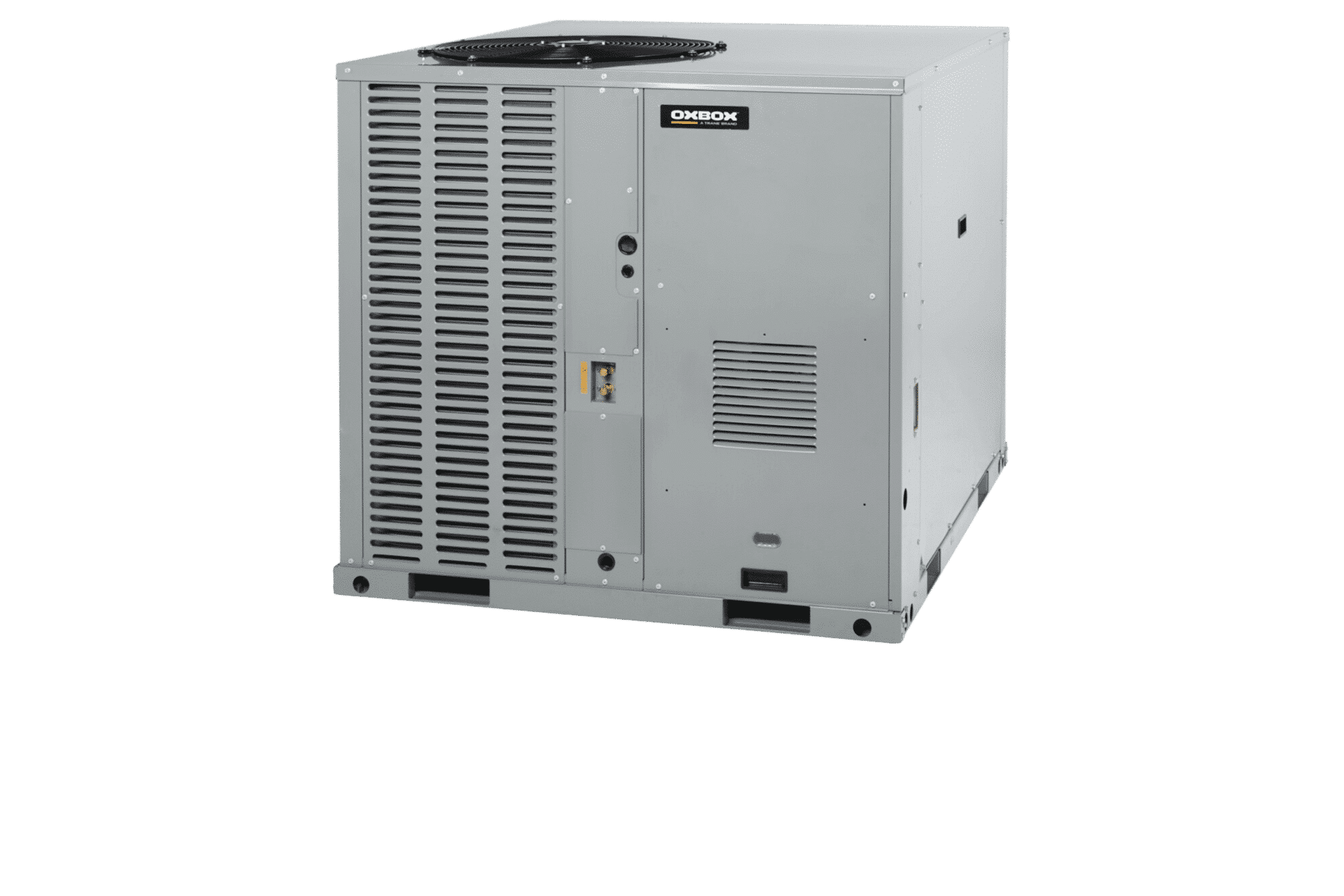

• Oxbox J5AC5060A1000 - Air Conditioner 5 Ton 14.3 SEER2 R-454B (Qty x1)

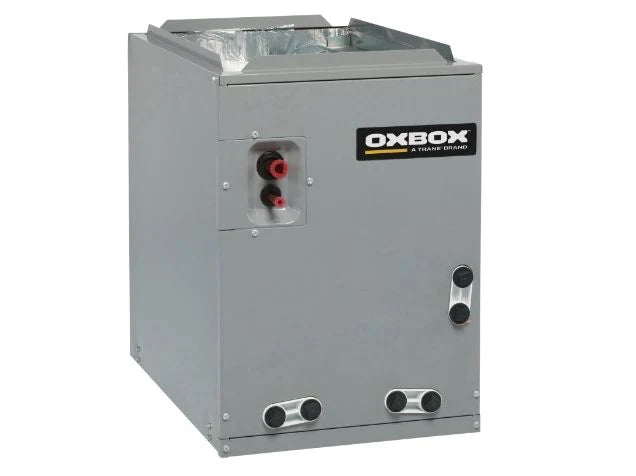

• Oxbox J5MXCD010AC6HC - 3.5 - 5.0 Ton Multi-Position R-454B All-Aluminum Cased Evaporator Coil (D-Cabinet) (Qty x1)
• Oxbox 5AYTXVH3A6000A - TXV (Thermostatic Expansion Valve) Kit - 5 Ton - R-454B (Qty x1)

Key Details

• Weight of Bundle: 394 lb (Oxbox 200 lb + Oxbox 94 lb + Oxbox 100 lb)
• Cooling Capacity: 5 tons
• SEER2: 14.3
• Refrigerant Type: R-454B (A2L)
• Maximum Overcurrent Protection (MOCP): 64.6 amps
• Evaporator Coil Tonnage Range: 3.5 - 5.0 Ton
• Cabinet Size: D-Cabinet (24.5 inches)
• Construction: All-Aluminum A-Coil
• Liquid Line Connection: 3/8 inch
• Suction Line Connection: 7/8 inch

Use & Compatibility

This bundle is intended for use in residential and light-commercial split-system cooling configurations. The outdoor air conditioner pairs seamlessly with the multi-position evaporator coil and is optimized for R-454B refrigerant systems. Ensure compatibility by verifying indoor coil and air handler pairings against Oxbox equipment match tables.
