Oxbox 5-Ton 60000 BTU R-454B 14.3 SEER2 Condenser & Coil System - J5AC5060A1000+J5MXCC009AC6HC+5AYTXVH3A6000A

Description

This comprehensive HVAC bundle is designed for optimal cooling performance in larger residential or light-commercial applications. Featuring the Oxbox J5AC5060A1000 air conditioner, this package ensures efficient cooling with a 5-ton capacity and a 14.3 SEER2 rating. The included J5MXCC009AC6HC evaporator coil complements the air conditioner, providing versatile installation options and enhanced thermal performance with its all-aluminum construction. Completing the bundle is the 5AYTXVH3A6000A TXV kit, which ensures precise refrigerant flow control, maximizing system efficiency. Together, these components create a reliable and high-performing cooling system tailored for modern HVAC needs.

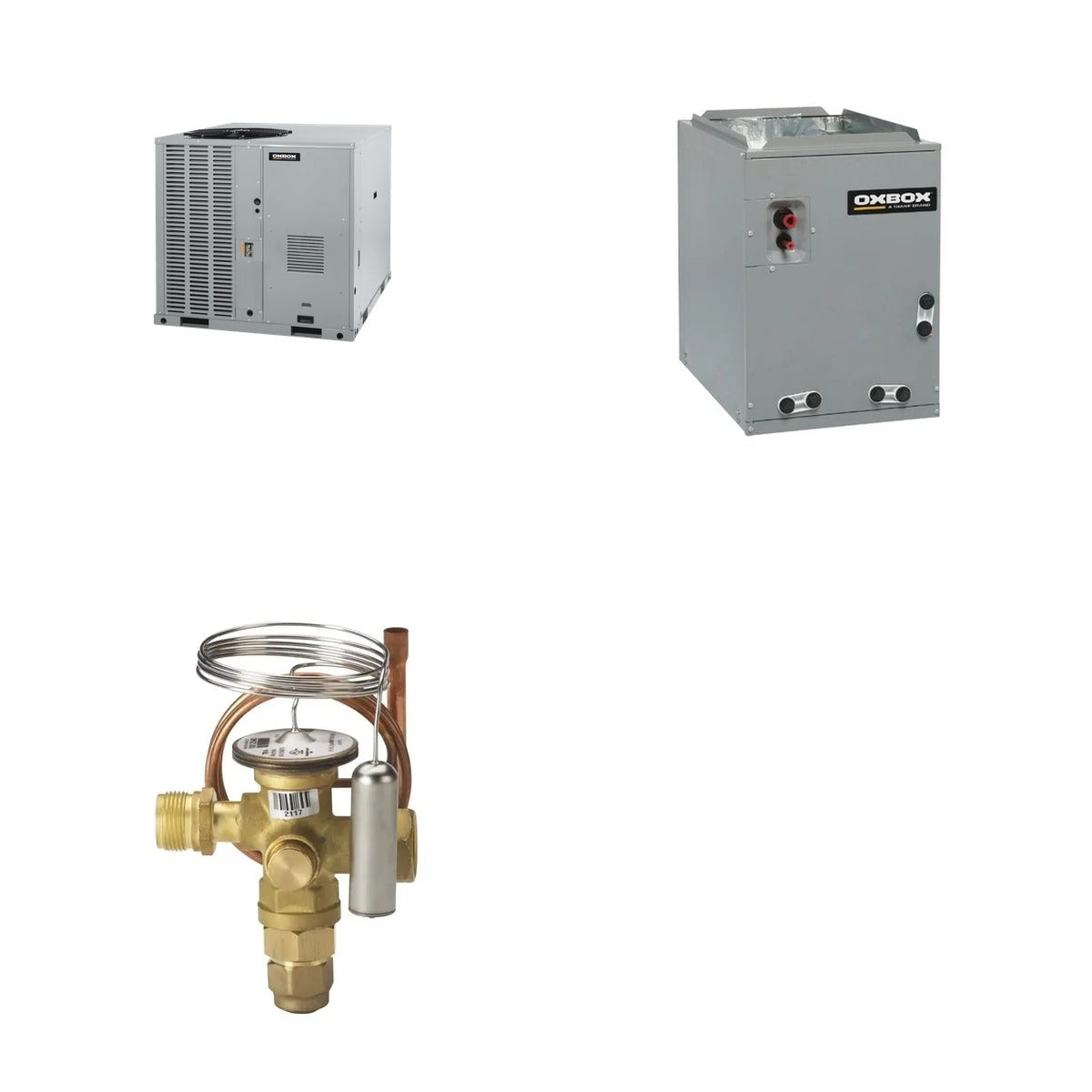

What's Included

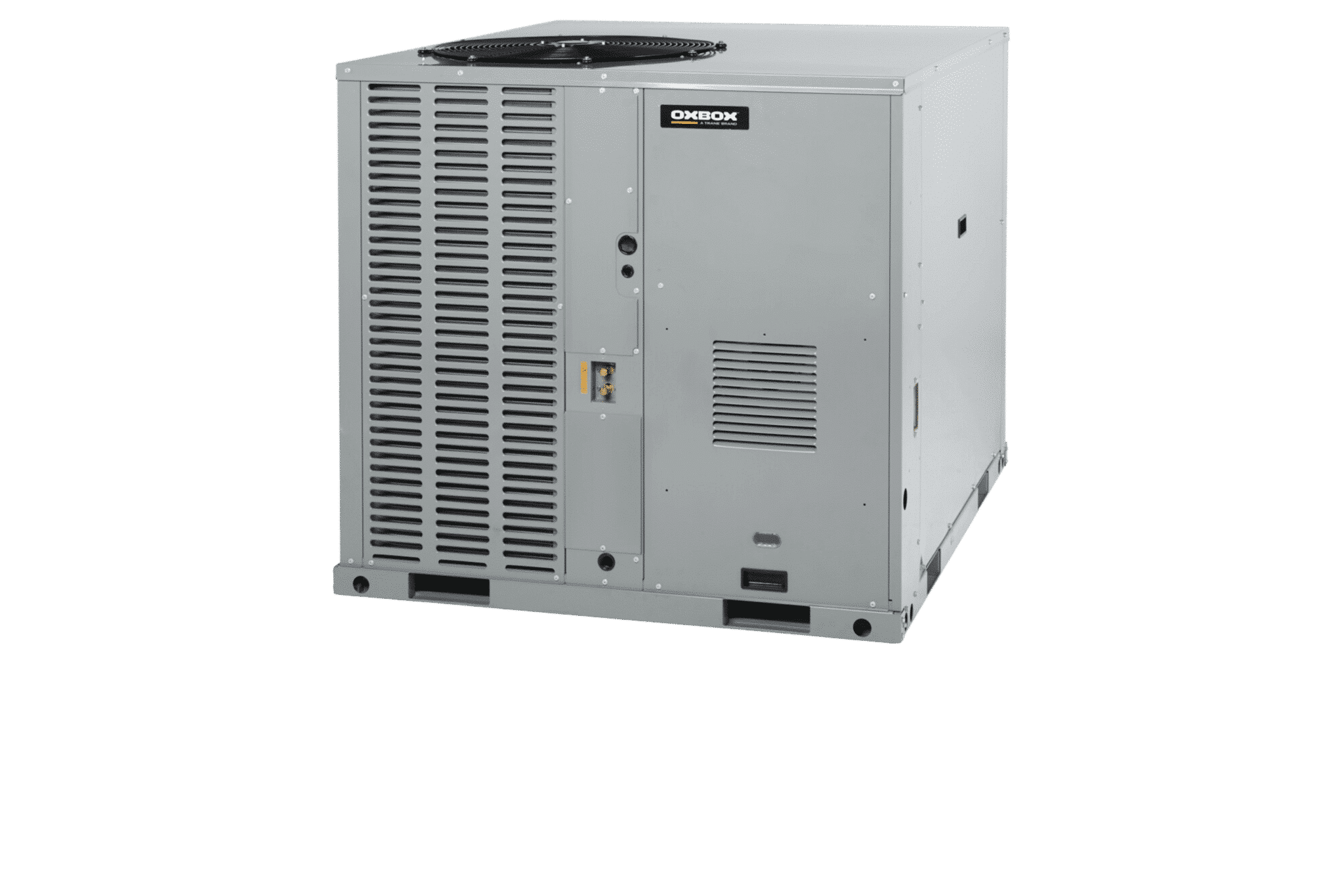

• OXBOX J5AC5060A1000 - Oxbox J5AC5060A1000 Air Conditioner 5 Ton (Qty x1)

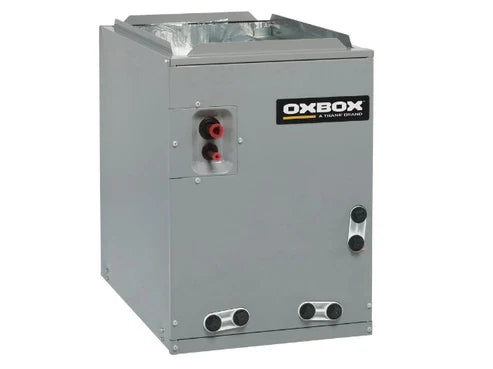

• OXBOX J5MXCC009AC6HC - Oxbox J5MXCC009AC6HC 3.0 - 5.0 Ton Multi-Position R-454B All-Aluminum Cased Evaporator Coil (C-Cabinet) (Qty x1)
• OXBOX 5AYTXVH3A6000A - Oxbox 5AYTXVH3A6000A TXV Kit - 5 Ton - R-454B (Qty x1)

Key Details

• Weight of Bundle: 382 lb (Oxbox 200 lb + Oxbox 82 lb + Oxbox 100 lb)
• Cooling Capacity: 5 tons
• SEER2: 14.3
• Refrigerant Type: R-454B (A2L)
• Airflow Capacity: Up to 1589+ CFM
• Cabinet Size: 21 inches (C-Cabinet)
• Construction: All-aluminum
• Maximum Overcurrent Protection (MOCP): 64.6 amps
• Dimensions: 33-3/16 inches x 29-1/8 inches x 29-1/8 inches

Use & Compatibility

This bundle is intended for use in residential or light-commercial split-system cooling configurations. The air conditioner pairs with the evaporator coil to form a complete system, while the TXV kit enhances refrigerant flow efficiency. Ensure compatibility by verifying against Oxbox equipment match tables for optimal performance.
