Oxbox 3-Ton 36000 BTU R-454B 14.3 SEER2 Heat Pump Split System - J5HP5036A1000+5JMM5A0B36M31S

Description

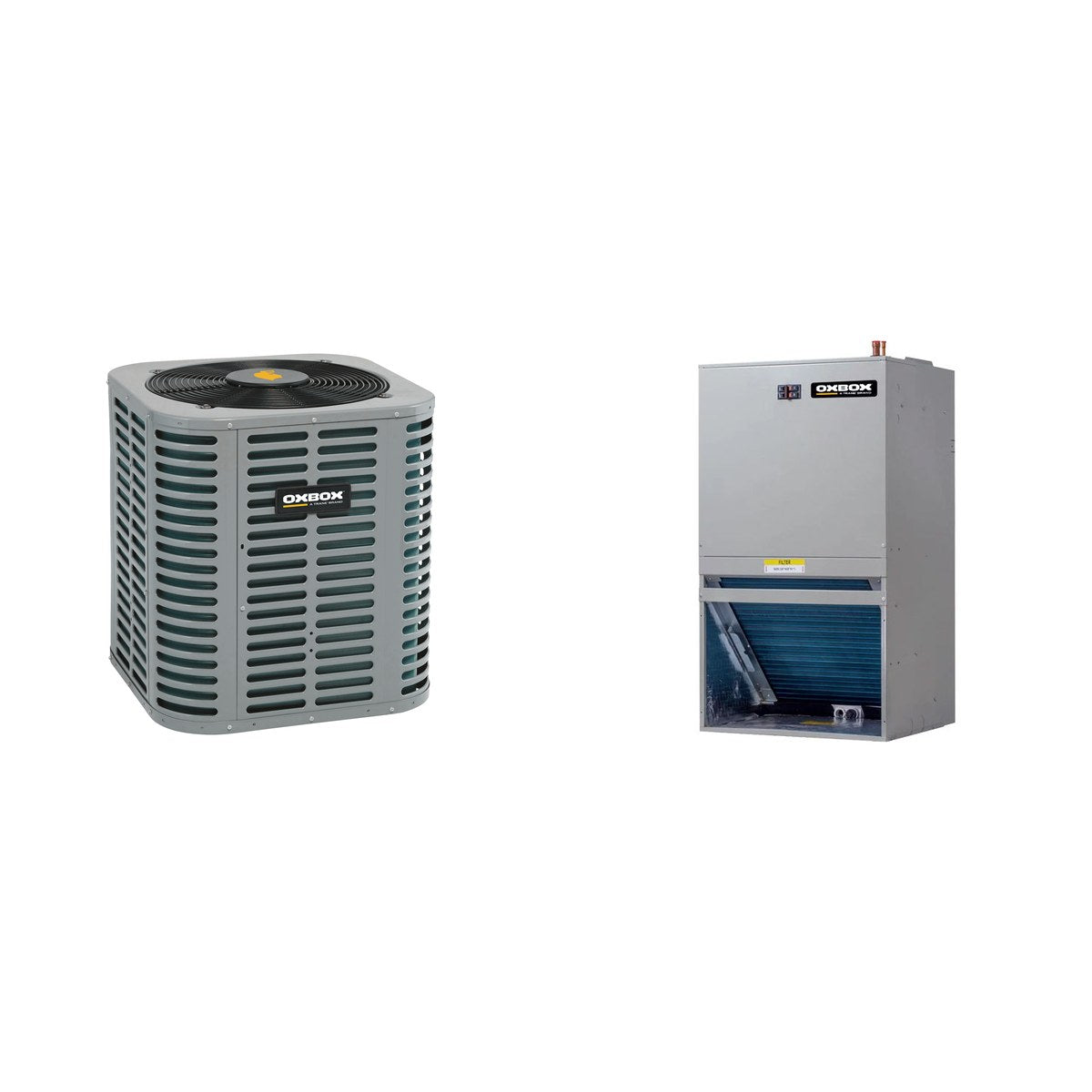

This bundle includes the Oxbox J5HP5036A1000 Heat Pump and the Oxbox 5JMM5A0B36M31S Air Handler, providing a comprehensive solution for residential heating and cooling needs. The heat pump, with its 3-ton capacity and 14.3 SEER2 rating, ensures efficient performance while adhering to modern refrigerant regulations. Paired with the air handler featuring an ECM motor, this combination is designed for optimal airflow and energy efficiency in ducted systems. Together, these units create a reliable and effective HVAC system suitable for mid-size homes.

What's Included

• OXBOX J5HP5036A1000 - Oxbox J5HP5036A1000 Heat Pump (Qty x1)
• OXBOX 5JMM5A0B36M31S - Oxbox 5JMM5A0B36M31S Air Handler (Qty x1)

Key Details

• Weight of Bundle: 317 lb (Oxbox 200 lb + Oxbox 117 lb)
• Nominal Capacity: 3 tons
• SEER2: 14.3
• Refrigerant: R-454B (A2L)
• Maximum Overcurrent Protection: 37.5 amps
• Cabinet Dimensions (Heat Pump): 24-15/16 in x 29-1/8 in x 29-1/8 in
• Air Handler Dimensions: 39-1/2 in height x 22 in width x 19 in depth
• Electrical Phase: 1-Phase
• Blower: Multi-Speed

Use & Compatibility

This bundle is intended for residential HVAC applications, specifically designed for ducted forced-air systems. The heat pump and air handler are compatible with R-454B refrigerant and can be installed in mid-size homes, providing efficient heating and cooling performance.
