Oxbox 3-Ton 36000 BTU R-454B 14.3 SEER2 Condenser & Coil System - J5AC5036A1000+J5MXCB016AC6HC+5AYTXVH3A1836A

Description

This comprehensive HVAC bundle is designed to provide everything you need for an efficient and effective cooling system. Featuring the Oxbox J5AC5036A1000 Air Conditioner, this 3-ton unit boasts a 14.3 SEER2 rating, ensuring energy efficiency while utilizing the environmentally friendly R-454B refrigerant. Paired with the Oxbox J5MXCB016AC6HC indoor evaporator coil, this setup offers exceptional durability with its all-aluminum construction and multi-positional installation options. Completing the bundle is the Oxbox 5AYTXVH3A1836A TXV kit, which ensures optimal performance for your air handler and coil units. Together, these components create a reliable and high-performance HVAC system suitable for residential applications.

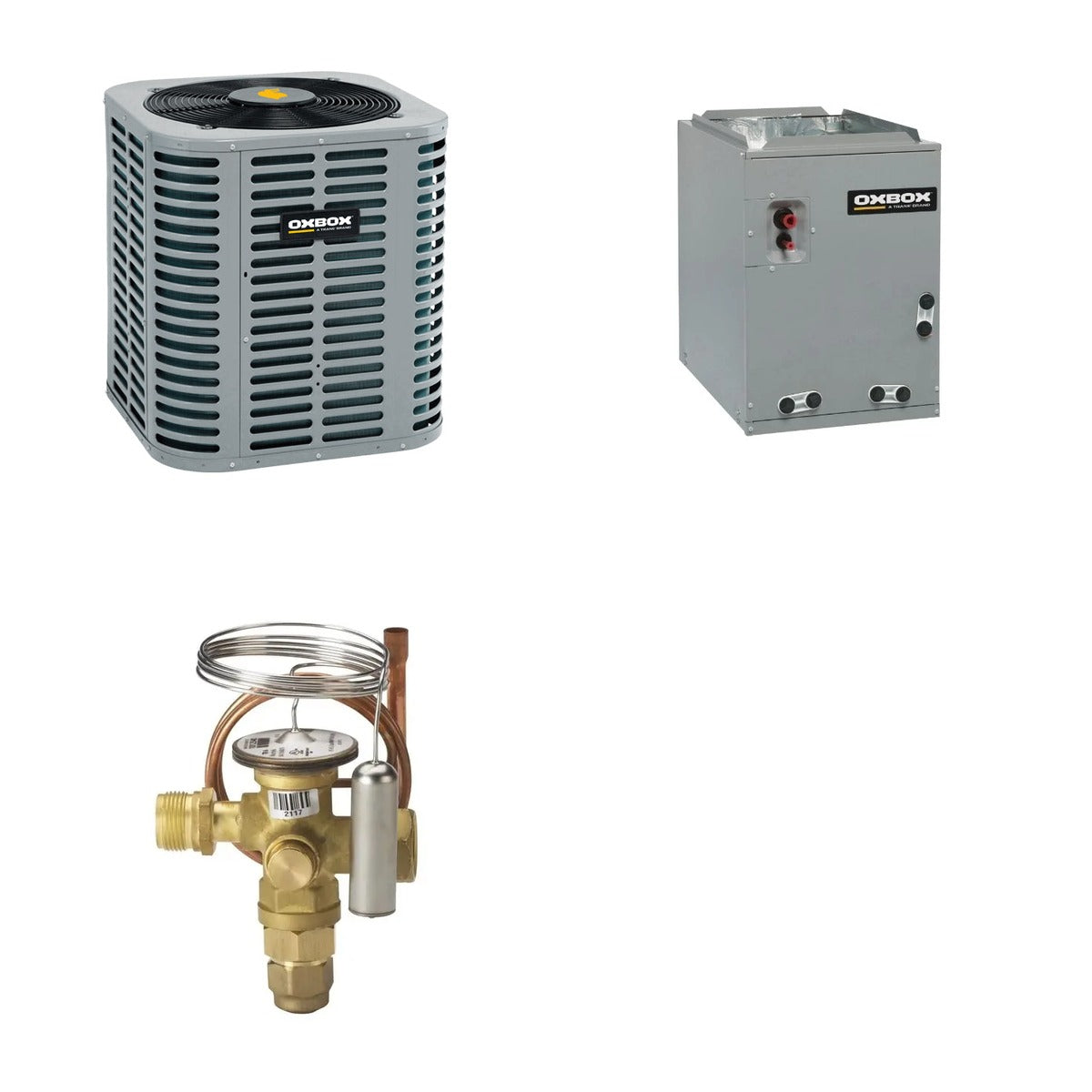

What's Included

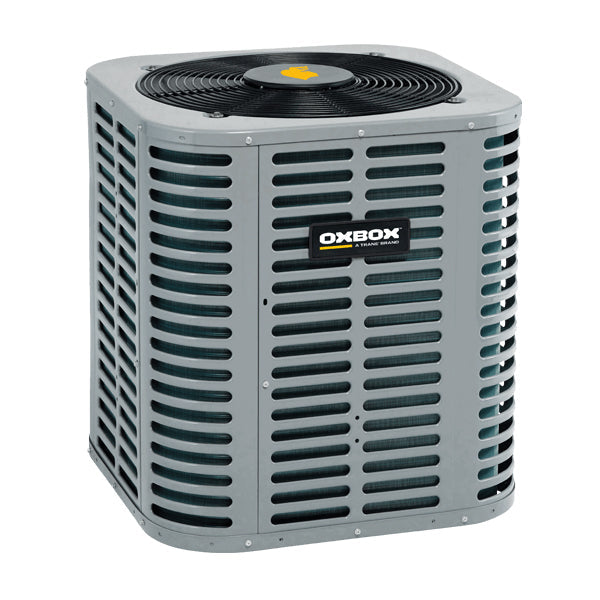

• Oxbox J5AC5036A1000 - Air Conditioner 3 Ton 14.3 SEER2 R-454B (Qty x1)

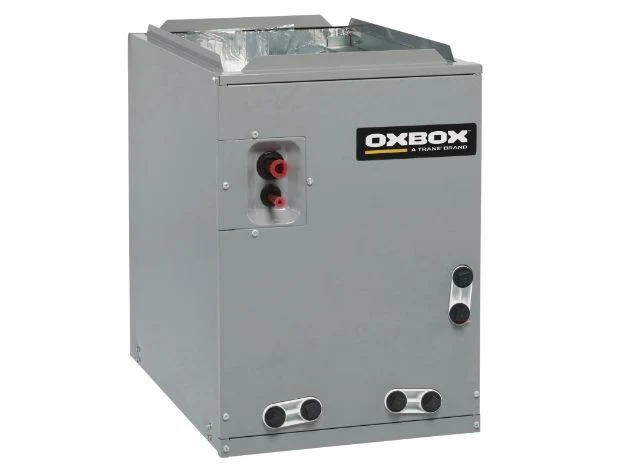

• Oxbox J5MXCB016AC6HC - Indoor Evaporator Coil 1.5 to 3.5 Ton (Qty x1)
• Oxbox 5AYTXVH3A1836A - R-454B TXV Kit (Coil and Air Handler) 1.5 to 3.0 Ton (Qty x1)

Key Details

• Weight of Bundle: 257 lb (Oxbox 200 lb + OB-J5MXCB016AC6HC 52 lb + Oxbox 5 lb)
• Cooling Capacity: 3 tons
• SEER2 Rating: 14.3
• Refrigerant: R-454B (A2L)
• Maximum Overcurrent Protection: 38 amps
• Line Connections: 7/8 inch suction x 3/8 inch liquid
• Evaporator Coil Size: 17.5 inches wide
• Construction: All-aluminum coil
• System Compatibility: 1.5 to 3.5 ton for evaporator coil, 1.5 to 3.0 ton for TXV kit

Use & Compatibility

This bundle is intended for residential HVAC systems, providing a complete solution for cooling needs. The air conditioner and evaporator coil are compatible with R-454B refrigerant and designed for efficient operation in various configurations. The TXV kit enhances performance in coil and air handler setups, ensuring optimal thermal management.
