Oxbox 3.5-Ton 42000 BTU R-454B 14.3 SEER2 Split AC System - J5AC5042A1000+J5AH4P60A1C00+5AYTXVH3A4248A

Description

This comprehensive HVAC bundle is designed to provide optimal cooling and heating solutions for residential applications. Featuring the Oxbox J5AC5042A1000 outdoor condensing unit, this system delivers a robust 3.5-ton capacity with a high efficiency rating of 14.3 SEER2, ensuring energy savings and comfort. Paired with the Oxbox J5AH4P60A1C00 air handler, which boasts a 5-ton capacity and a multi-speed PSC blower motor, this bundle adapts seamlessly to various duct systems. To enhance system performance, the included 5AYTXVH3A4248A TXV kit ensures precise refrigerant flow, maximizing efficiency and maintaining optimal indoor conditions.

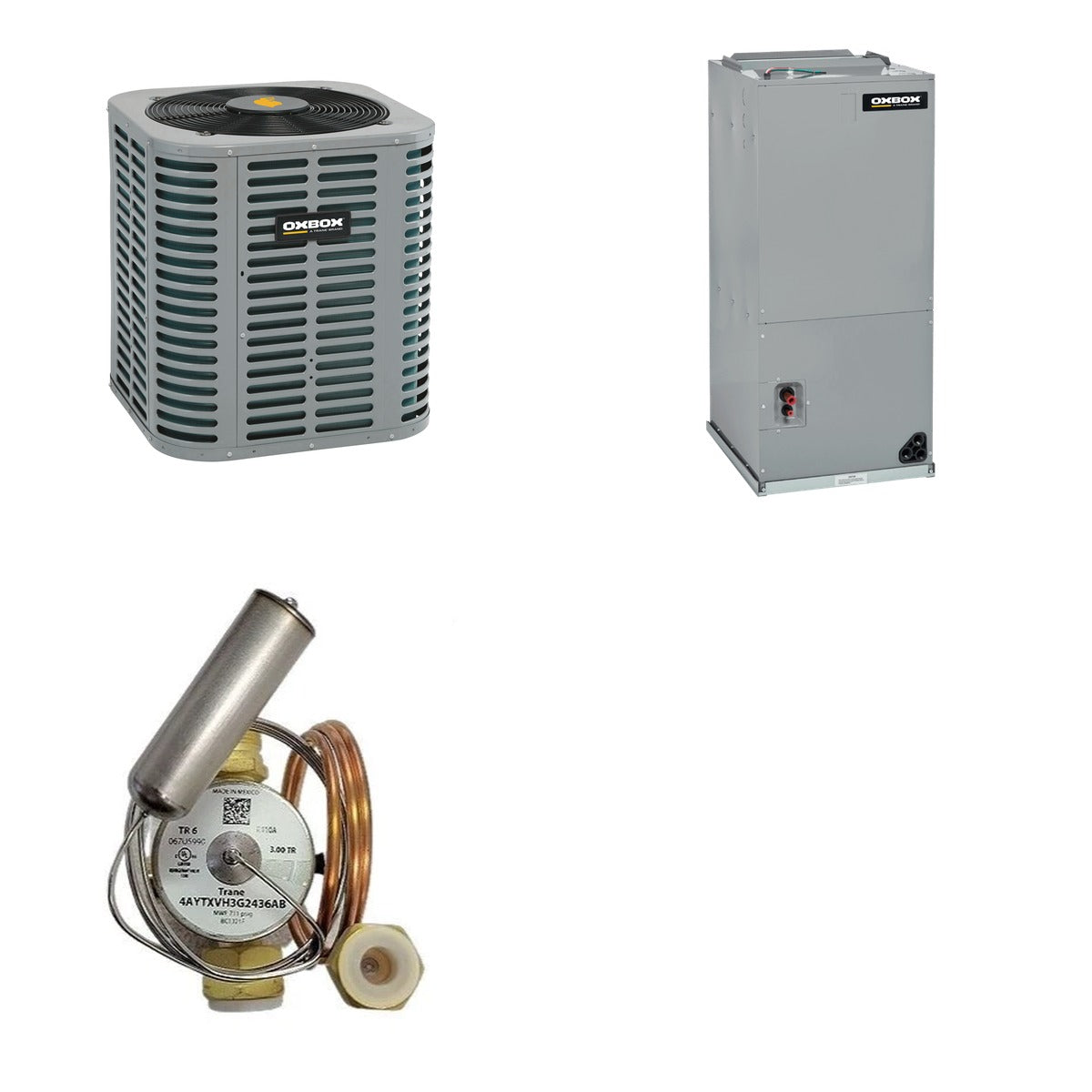

What's Included

• Oxbox J5AC5042A1000 - Central Air Conditioner 3.5 Ton 14.3 SEER2 R-454B Outdoor Condensing Unit (Qty x1)

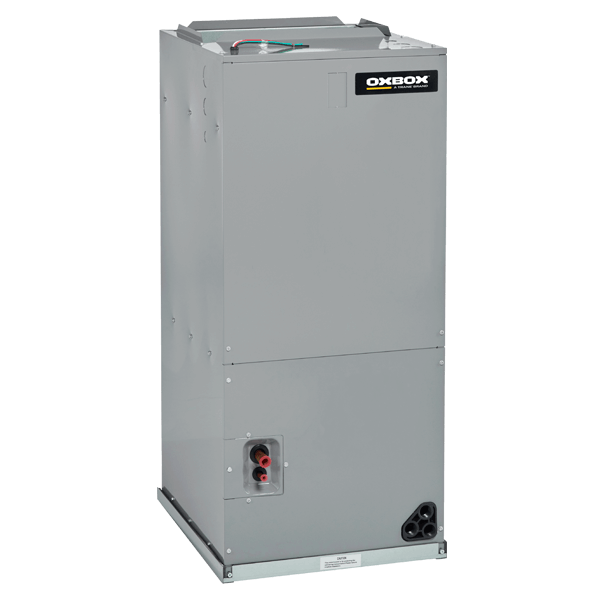

• Oxbox J5AH4P60A1C00 - Air Handler 5 Ton Multi-speed PSC Blower R-454B Refrigerant (Qty x1)

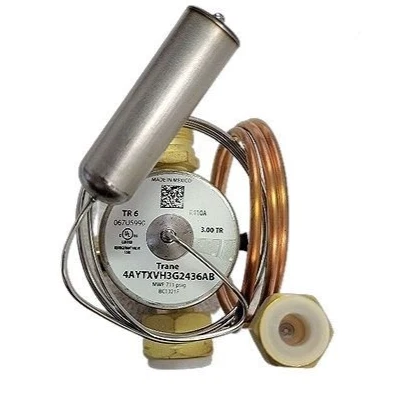

• Oxbox 5AYTXVH3A4248A - TXV (Thermostatic Expansion Valve) Kit 3.5 - 4.0 Ton R-454B (Qty x1)

Key Details

• Weight of Bundle: 262 lb (Oxbox 200 lb + Oxbox 60 lb + Oxbox 2 lb)
• Cooling Capacity: 3.5 tons
• Air Handler Capacity: 5 tons
• SEER2 Rating: 14.3
• Refrigerant Type: R-454B (A2L)
• TXV Compatibility: 3.5 - 4.0 tons
• Maximum Overcurrent Protection (MOCP): 43.4 amps (condensing unit), 15 amps (air handler)
• Cabinet Dimensions: 33-3/16 in x 28 in x 28 in (condensing unit)
• Air Handler Dimensions: 54.5 in x 22 in x 24 in
• Body Material: Brass (TXV)

Use & Compatibility

This bundle is designed for residential split-system applications requiring a 3.5-ton outdoor condensing unit and a 5-ton air handler. It is compatible with R-454B refrigerant systems, making it suitable for new installations or replacements. Ensure that the indoor and outdoor units are matched for optimal performance and efficiency.
