Oxbox 3.5-Ton 42000 BTU R-454B 14.3 SEER2 Split AC System - J5AC5042A1000+J5AH4P48A1C00+5AYTXVH3A4248A

Description

This bundle includes essential components for a high-efficiency residential HVAC system designed to operate with R-454B refrigerant. The Oxbox J5AC5042A1000 outdoor condensing unit provides a robust 3.5-ton cooling capacity with a 14.3 SEER2 rating, ensuring energy efficiency and compliance with current standards. Paired with the Oxbox J5AH4P48A1C00 air handler, which features a multi-speed PSC blower for optimal airflow, this combination is perfect for mid-to-large residential spaces. The inclusion of the Oxbox 5AYTXVH3A4248A TXV kit enhances system performance by providing precise refrigerant flow control, making this bundle a comprehensive solution for efficient cooling and heating.

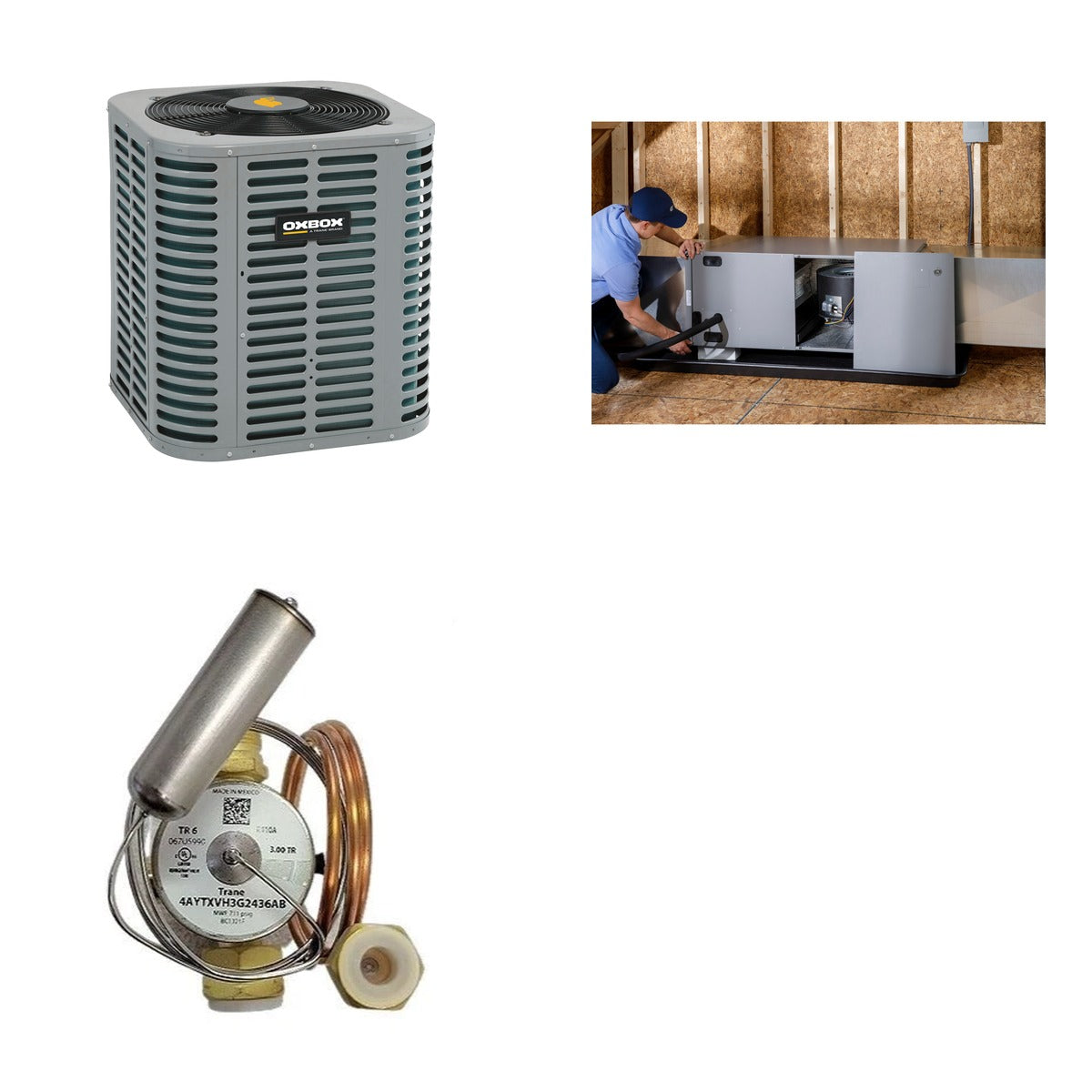

What's Included

• Oxbox J5AC5042A1000 - Central Air Conditioner 3.5 Ton 14.3 SEER2 R-454B Outdoor Condensing Unit (Qty x1)

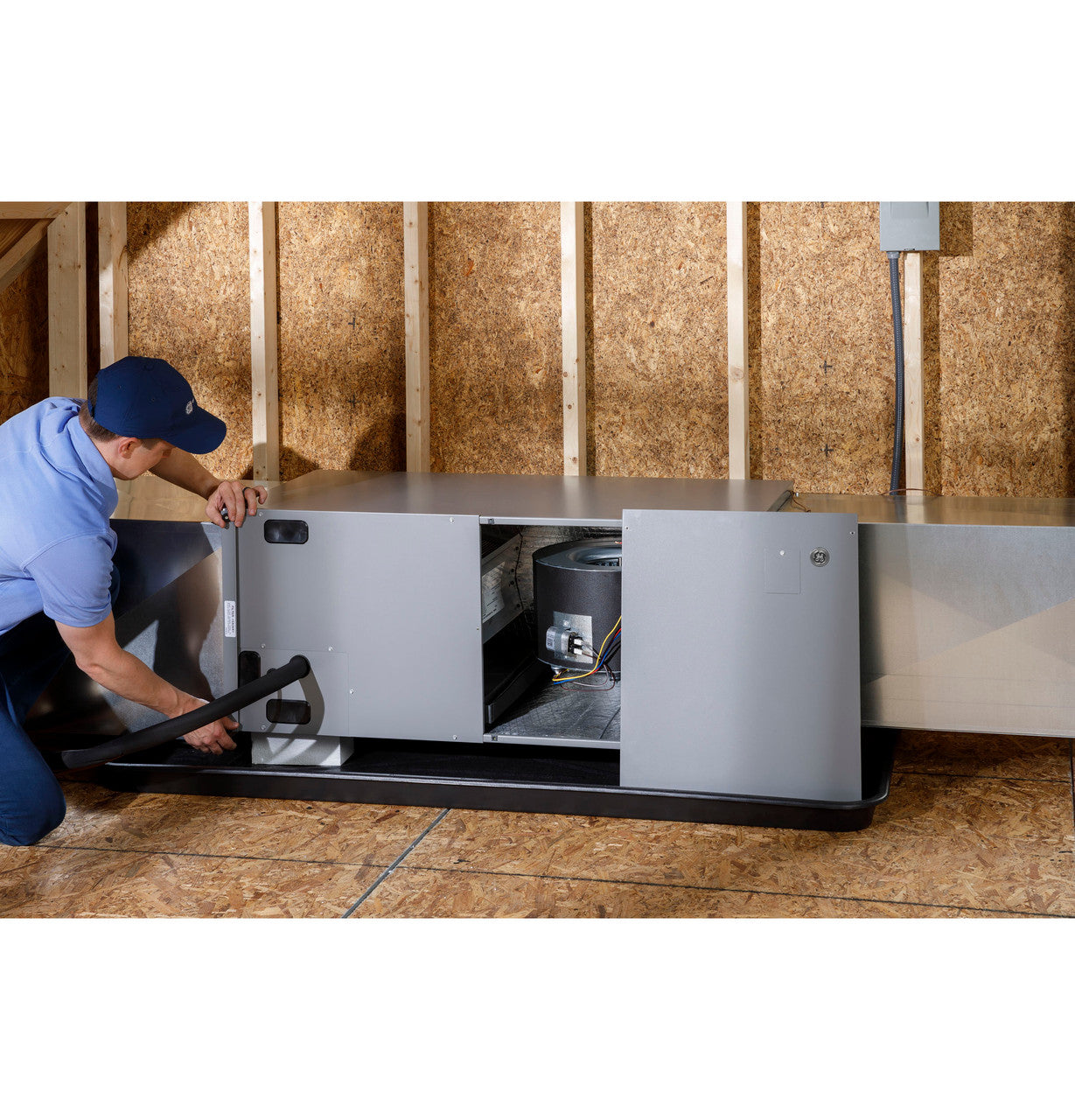

• Oxbox J5AH4P48A1C00 - Air Handler 4 Ton Multi-speed PSC Blower R-454B Residential (Qty x1)

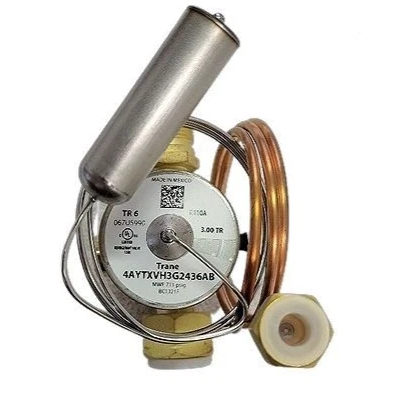

• Oxbox 5AYTXVH3A4248A - TXV (Thermostatic Expansion Valve) Kit 3.5 - 4.0 Ton R-454B (Qty x1)

Key Details

• Weight of Bundle: 262 lb (Oxbox 200 lb + Oxbox 60 lb + Oxbox 2 lb)
• Cooling Capacity: 3.5 tons
• SEER2 Rating: 14.3
• Refrigerant: R-454B (A2L)
• Air Handler Capacity: 4 tons
• Blower Type: Multi-Speed PSC
• TXV Compatibility: 3.5 - 4.0 Ton
• Cabinet Dimensions (Air Handler): 54.5 x 22 x 24 inches
• Maximum Overcurrent Protection (Condensing Unit): 43.4 amps
• Maximum Overcurrent Protection (Air Handler): 15 amps

Use & Compatibility

This bundle is intended for residential split-system HVAC applications, compatible with R-454B refrigerant. The outdoor condensing unit and air handler work together to provide efficient cooling and heating for mid-to-large homes. The TXV kit ensures optimal refrigerant flow, enhancing system performance and longevity. Installation should be performed by a certified HVAC technician to comply with safety and efficiency standards.
