Oxbox 3.5-Ton 42000 BTU R-454B 14.3 SEER2 Heat Pump Split System - J5HP5042A1000+J5AH5E60A1C00+5AYTXVH3A4248A

Description

This comprehensive HVAC bundle includes everything you need for efficient heating and cooling in residential applications. The Oxbox J5HP5042A1000 heat pump, with its 3.5-ton capacity and 14.3 SEER2 rating, works seamlessly with the Oxbox J5AH5E60A1C00 air handler, which features a variable speed ECM blower for optimal airflow control. To ensure peak performance, the bundle also includes the Oxbox 5AYTXVH3A4248A TXV kit, specifically designed for R-454B refrigerant systems. Together, these components provide a reliable and energy-efficient solution for modern climate control needs.

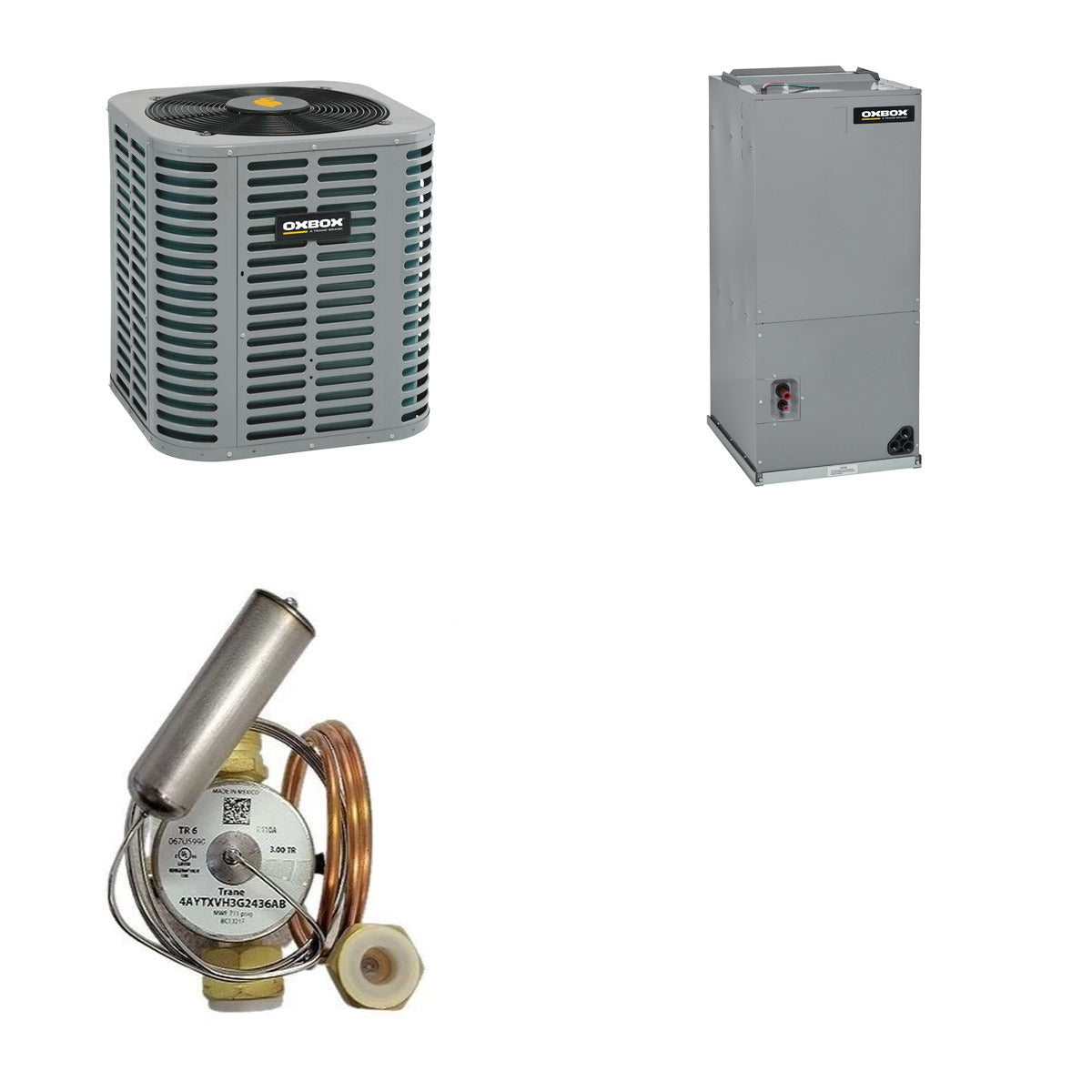

What's Included

• OXBOX J5HP5042A1000 - Oxbox J5HP5042A1000 Heat Pump 3.5 Ton 14.3 SEER2 R-454B Residential Split System (Qty x1)

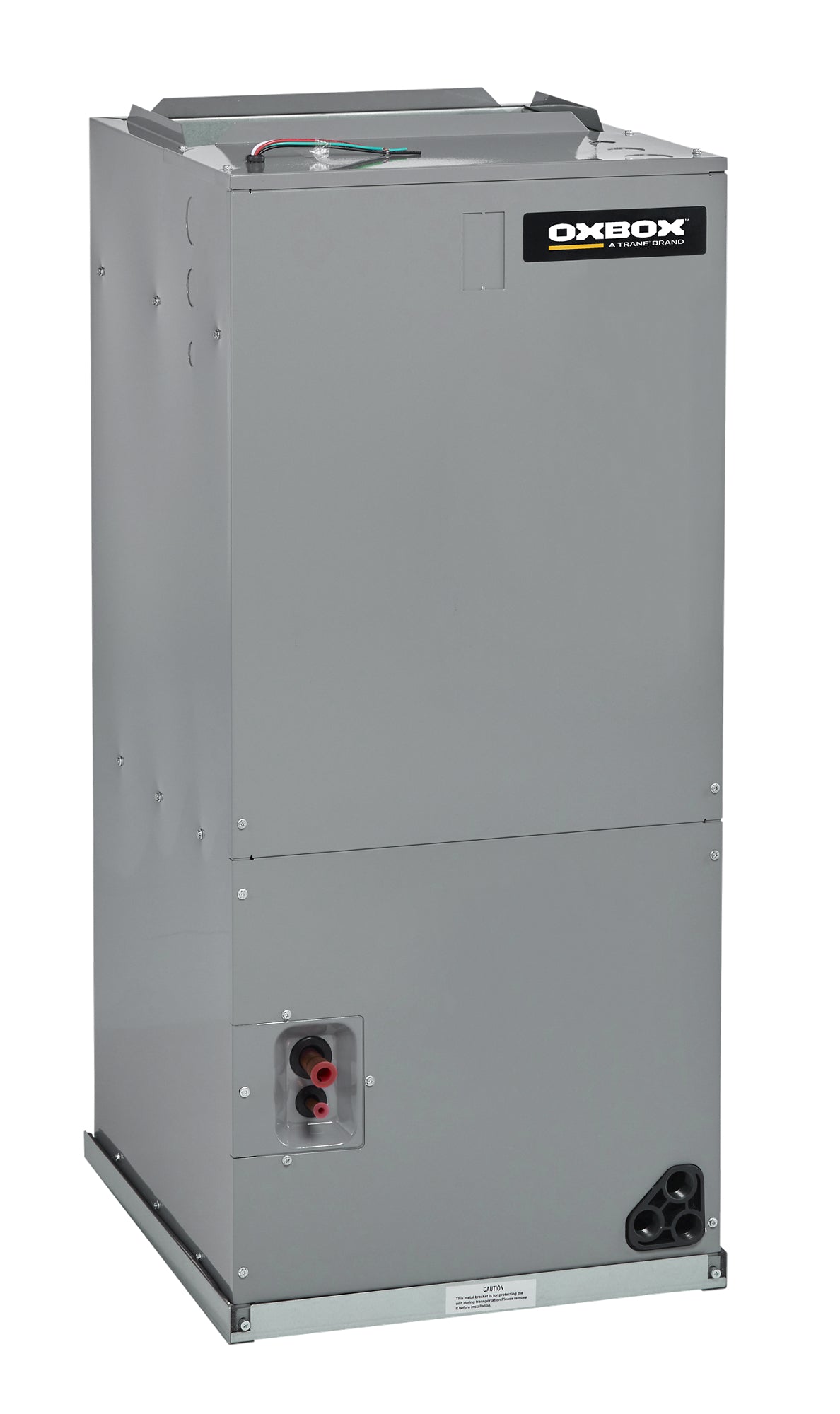

• OXBOX J5AH5E60A1C00 - Oxbox J5AH5E60A1C00 Air Handler 4 Ton Variable Speed Ecm R-454B (Qty x1)

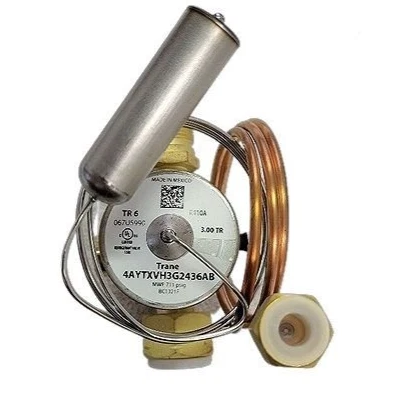

• OXBOX 5AYTXVH3A4248A - Oxbox 5AYTXVH3A4248A TXV (Thermostatic Expansion Valve) Kit 3.5 - 4.0 Ton R-454B (Qty x1)

Key Details

• Weight of Bundle: 262 lb (Oxbox 200 lb + Oxbox 60 lb + Oxbox 2 lb)
• Heat Pump Capacity: 3.5 tons
• Air Handler Capacity: 4 tons
• SEER2 Rating: 14.3
• Refrigerant: R-454B (A2L)
• TXV Compatibility: 3.5 - 4.0 tons
• Maximum Overcurrent Protection: 45.7 amps
• Air Handler Dimensions: 54.5 x 22 x 24 inches
• TXV Connection Type: Mechanical (Bolt-on/Chatleff)
• Body Material: Brass (TXV)

Use & Compatibility

This bundle is designed for residential split-system applications requiring efficient heating and cooling. The heat pump and air handler work together seamlessly, while the TXV kit enhances system efficiency. Ideal for new constructions and retrofits, these components are compatible with R-454B refrigerant systems and should be installed by licensed HVAC professionals.
