Oxbox 3.5-Ton 42000 BTU R-454B 14.3 SEER2 Heat Pump Split System - J5HP5042A1000+J5AH4P48A1C00+5AYTXVH3A4248A

Description

This comprehensive HVAC bundle includes essential components for a high-efficiency residential split system. The Oxbox J5HP5042A1000 heat pump and J5AH4P48A1C00 air handler are perfectly matched to deliver optimal heating and cooling performance, while the 5AYTXVH3A4248A TXV kit ensures precise refrigerant flow for enhanced efficiency. Together, these products provide a reliable solution for homeowners seeking effective climate control with a focus on sustainability, utilizing R-454B refrigerant to meet modern environmental standards.

What's Included

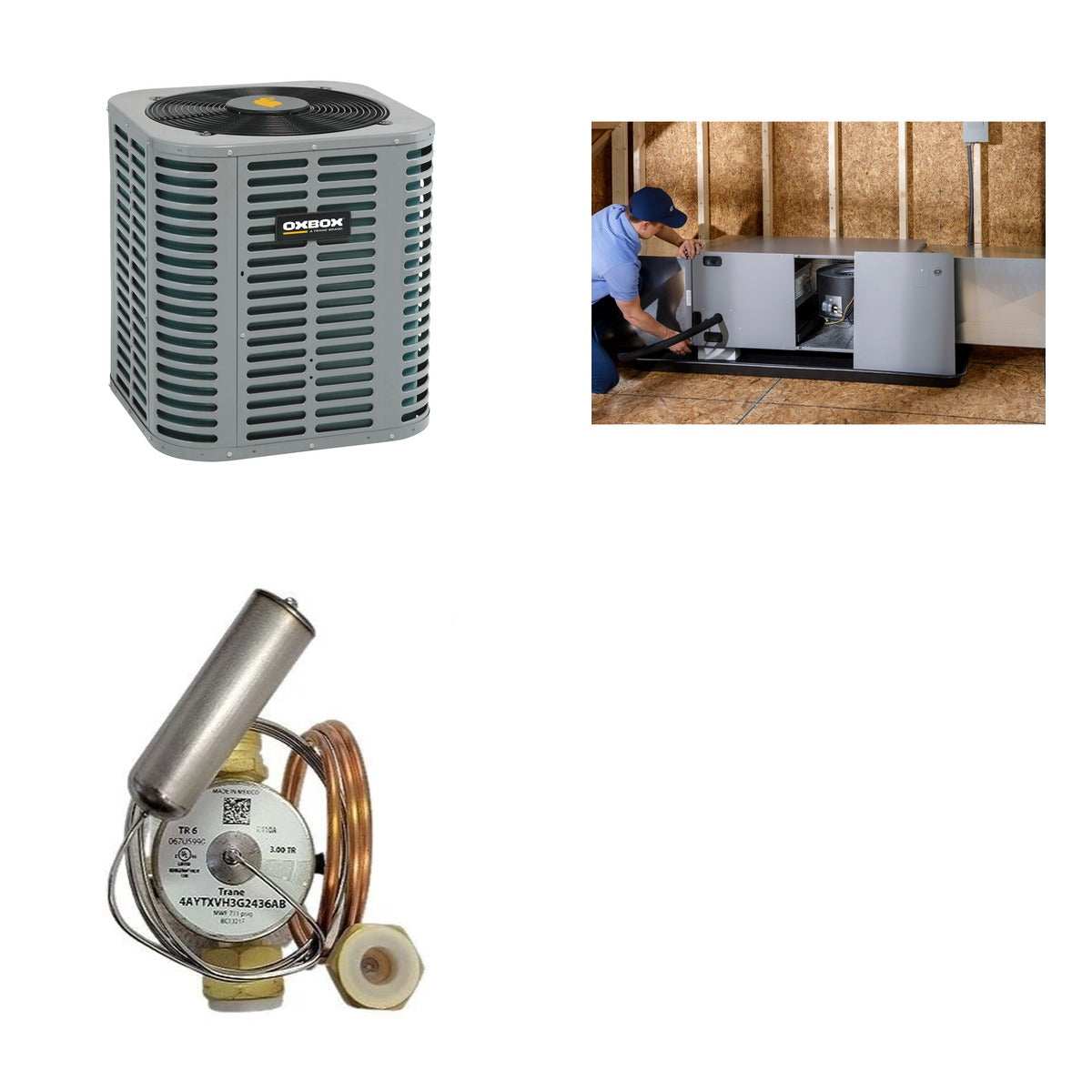

• Oxbox J5HP5042A1000 - Heat Pump 3.5 Ton 14.3 SEER2 R-454B Residential Split System (Qty x1)

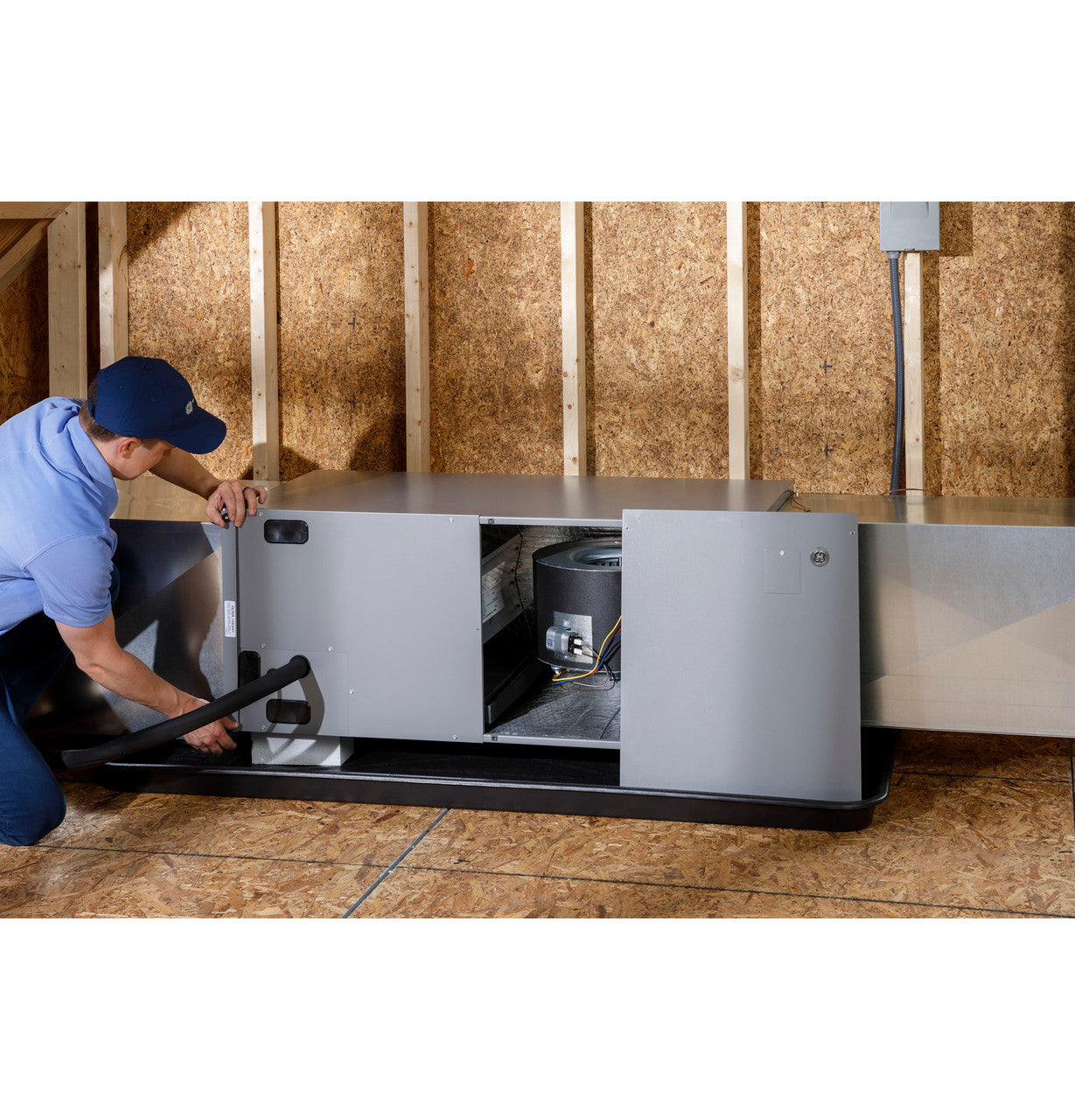

• Oxbox J5AH4P48A1C00 - Air Handler 4 Ton Multi-speed PSC Blower R-454B Residential (Qty x1)

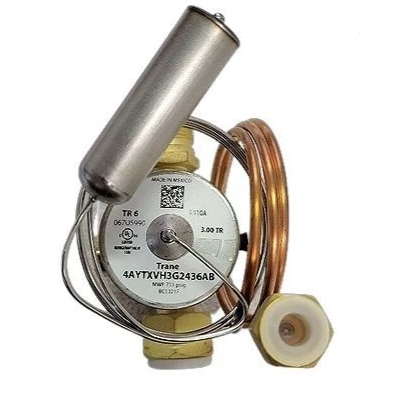

• Oxbox 5AYTXVH3A4248A - TXV (Thermostatic Expansion Valve) Kit 3.5 - 4.0 Ton R-454B (Qty x1)

Key Details

• Weight of Bundle: 262 lb (Oxbox 200 lb + Oxbox 60 lb + Oxbox 2 lb)
• Heat Pump Capacity: 3.5 tons
• Air Handler Capacity: 4 tons
• SEER2 Rating: 14.3
• Refrigerant Type: R-454B (A2L)
• TXV Compatibility: 3.5 - 4.0 tons
• Heat Pump MOCP: 45.7 amps
• Air Handler MOCP: 15 amps
• Heat Pump Dimensions: 33-3/16 x 28 x 28 inches
• Air Handler Dimensions: 54.5 x 22 x 24 inches
• TXV Connection Type: Mechanical (Bolt-on)

Use & Compatibility

This bundle is designed for residential split-system applications, providing efficient heating and cooling for mid-range to large residential spaces. The heat pump and air handler are specifically engineered to work together with R-454B refrigerant, ensuring compliance with current environmental regulations. The TXV kit enhances system performance by optimizing refrigerant flow, making this bundle an ideal choice for new installations or upgrades.
