Oxbox 3.5-Ton 42000 BTU R-454B 14.3 SEER2 Condenser & Coil System - J5AC5042A1000+J5MXCB016AC6HC+5AYTXVH3A4248A

Description

This comprehensive HVAC bundle includes essential components designed to work seamlessly together for optimal cooling and heating performance in residential applications. The Oxbox J5AC5042A1000 outdoor condensing unit provides a robust 3.5-ton capacity with a high efficiency of 14.3 SEER2, making it a perfect match for the Oxbox J5MXCB016AC6HC indoor evaporator coil, which is compatible with R-454B refrigerant and offers flexible installation options. To enhance system efficiency, the bundle also features the Oxbox 5AYTXVH3A4248A TXV kit, ensuring precise refrigerant flow and improved comfort control. Together, these components create a reliable and efficient HVAC solution for modern homes.

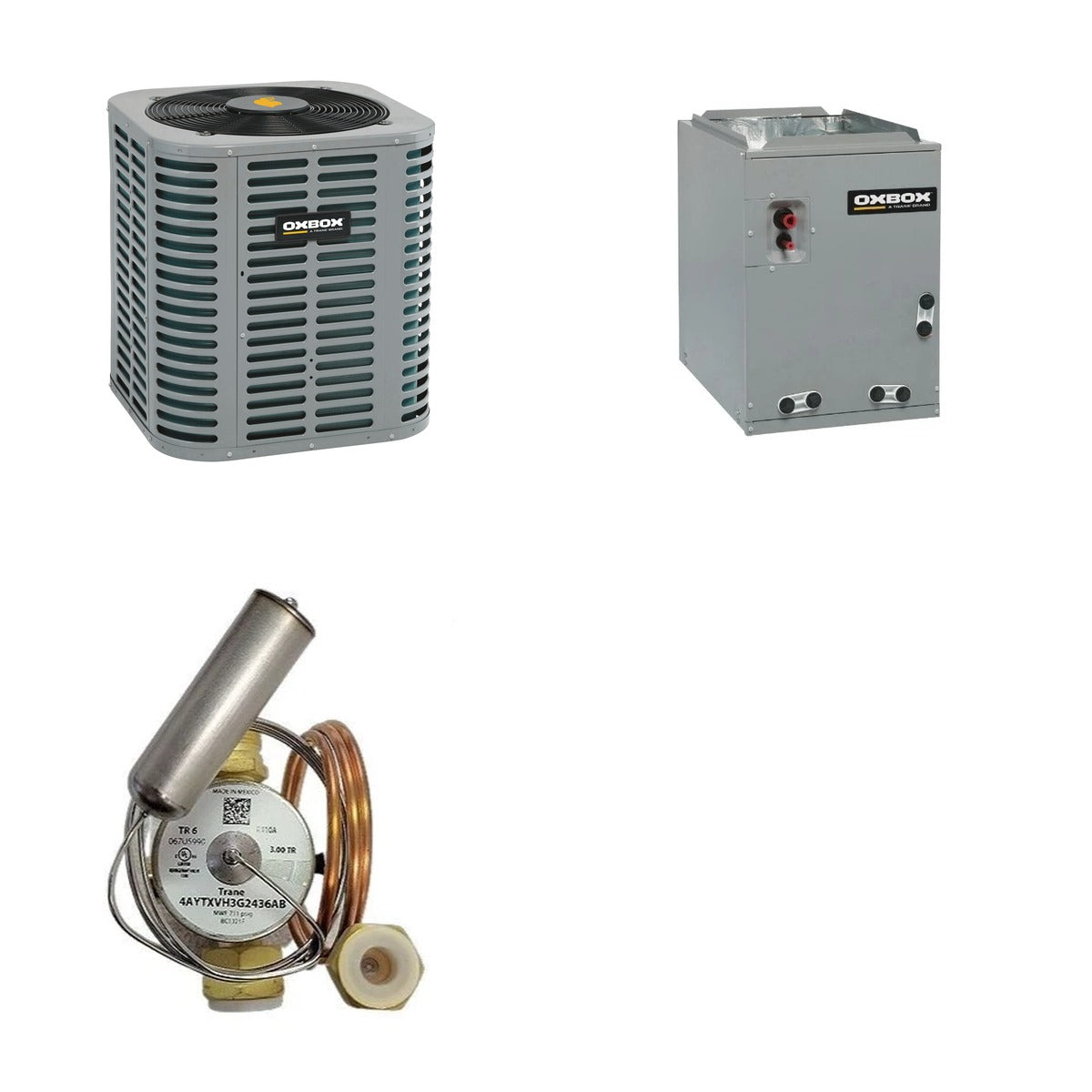

What's Included

• Oxbox J5AC5042A1000 - Central Air Conditioner 3.5 Ton 14.3 SEER2 R-454B Outdoor Condensing Unit (Qty x1)

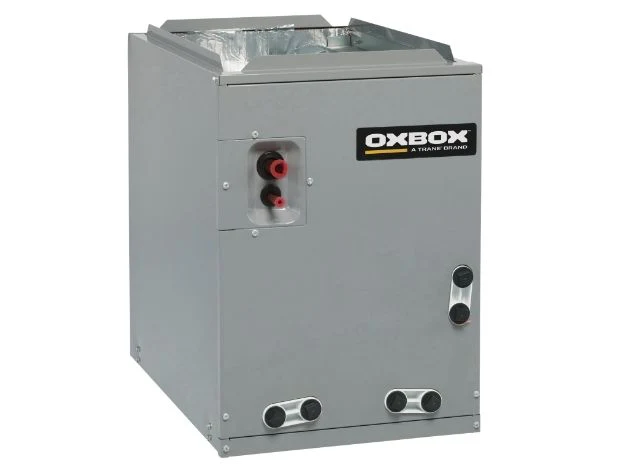

• Oxbox J5MXCB016AC6HC - 1.5 to 3.5 Ton Indoor Evaporator Coil (Qty x1)
• Oxbox 5AYTXVH3A4248A - TXV (Thermostatic Expansion Valve) Kit 3.5 - 4.0 Ton R-454B (Qty x1)

Key Details

• Weight of Bundle: 254 lb (Oxbox 200 lb + OB-J5MXCB016AC6HC 52 lb + Oxbox 2 lb)
• Cooling Capacity: 3.5 tons
• SEER2: 14.3
• Refrigerant: R-454B (A2L)
• Maximum Overcurrent Protection: 43.4 amps
• Indoor Coil Size: 17.5 inches wide
• TXV Compatibility: 3.5 - 4.0 Ton
• Body Material: Brass (TXV)
• Dimensions: 33-3/16 inches H x 28 inches W x 28 inches D (Condensing Unit)

Use & Compatibility

This bundle is designed for residential split-system HVAC applications, providing a complete solution for efficient cooling and heating. The outdoor condensing unit pairs with the indoor evaporator coil, both utilizing R-454B refrigerant for environmental compliance. The TXV kit enhances performance by ensuring optimal refrigerant flow, making this bundle ideal for new installations or replacements in homes.
