Oxbox 2.5-Ton 30000 BTU R-454B 14.3 SEER2 Condenser & Coil System - J5AC5030A1000+J5MXCB016AC6HC+5AYTXVH3A1836A

Description

This comprehensive HVAC bundle is designed to provide everything you need for efficient residential cooling and heating. Featuring the Oxbox J5AC5030A1000 air conditioner, this package offers a powerful 2.5-ton cooling capacity with a 14.3 SEER2 rating, ensuring energy efficiency and compliance with modern regulations. The included J5MXCB016AC6HC evaporator coil enhances system performance with its all-aluminum construction and multi-positional installation options, making it versatile for various setups. Completing the bundle is the 5AYTXVH3A1836A TXV kit, which optimizes thermal expansion for enhanced efficiency. Together, these components create a reliable and eco-friendly HVAC solution tailored for residential applications.

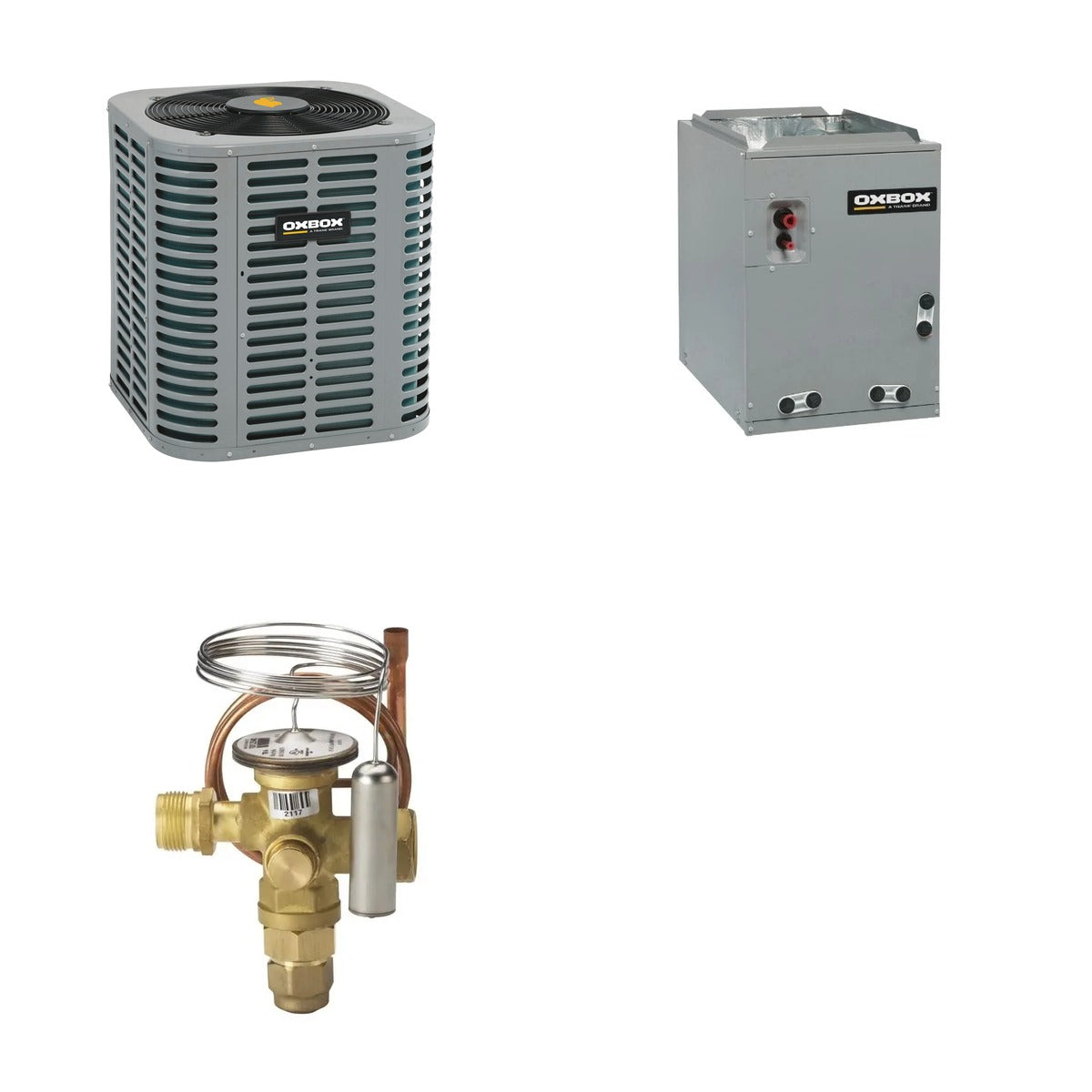

What's Included

• OXBOX J5AC5030A1000 - Oxbox J5AC5030A1000 Air Conditioner 2.5 Ton 14.3 SEER2 R-454B Residential Cooling (Qty x1)

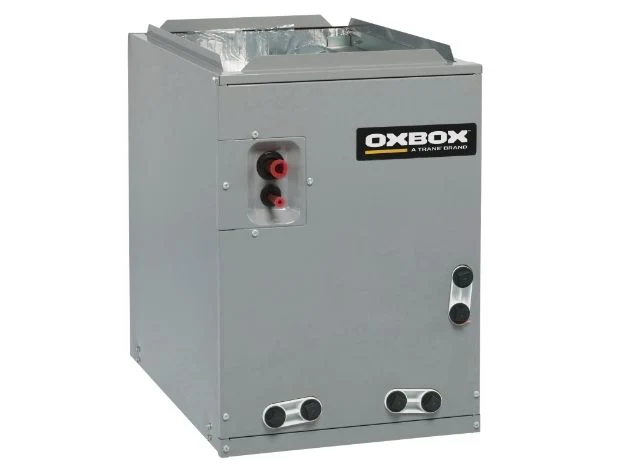

• OXBOX J5MXCB016AC6HC - OB-J5MXCB016AC6HC 1.5 TO 3.5 TON Evaporator Coil (Qty x1)
• OXBOX 5AYTXVH3A1836A - Oxbox 5AYTXVH3A1836A R-454B -Txv Kit (Coil and Air Handler) 1.5 - 3.0 Ton (Qty x1)

Key Details

• Weight of Bundle: 257 lb (Oxbox 200 lb + OB-J5MXCB016AC6HC 52 lb + Oxbox 5 lb)
• Air Conditioner Capacity: 2.5 tons
• Evaporator Coil Tonnage Range: 1.5 - 3.5 tons
• Refrigerant Type: R-454B (A2L)
• SEER2 Rating: 14.3
• Maximum Overcurrent Protection: 30.3 amps
• Evaporator Coil Dimensions: 17.5" W x 21.0" D x 20.0" H
• Liquid Line Connection: 3/8 inch
• Suction Line Connection: 3/4 inch
• All-Aluminum Coil Construction
• Multi-Positional Installation Capability

Use & Compatibility

This bundle is intended for residential HVAC applications, providing a complete cooling and heating solution. The air conditioner and evaporator coil are designed to work seamlessly together, utilizing R-454B refrigerant for optimal performance. Ensure compatibility with existing systems by verifying specifications before installation.
