Oxbox 1.5-Ton 18000 BTU R-454B 13.4 SEER2 Split AC System - J5AC3018A1000+5JMM5A0A24M21S

Description

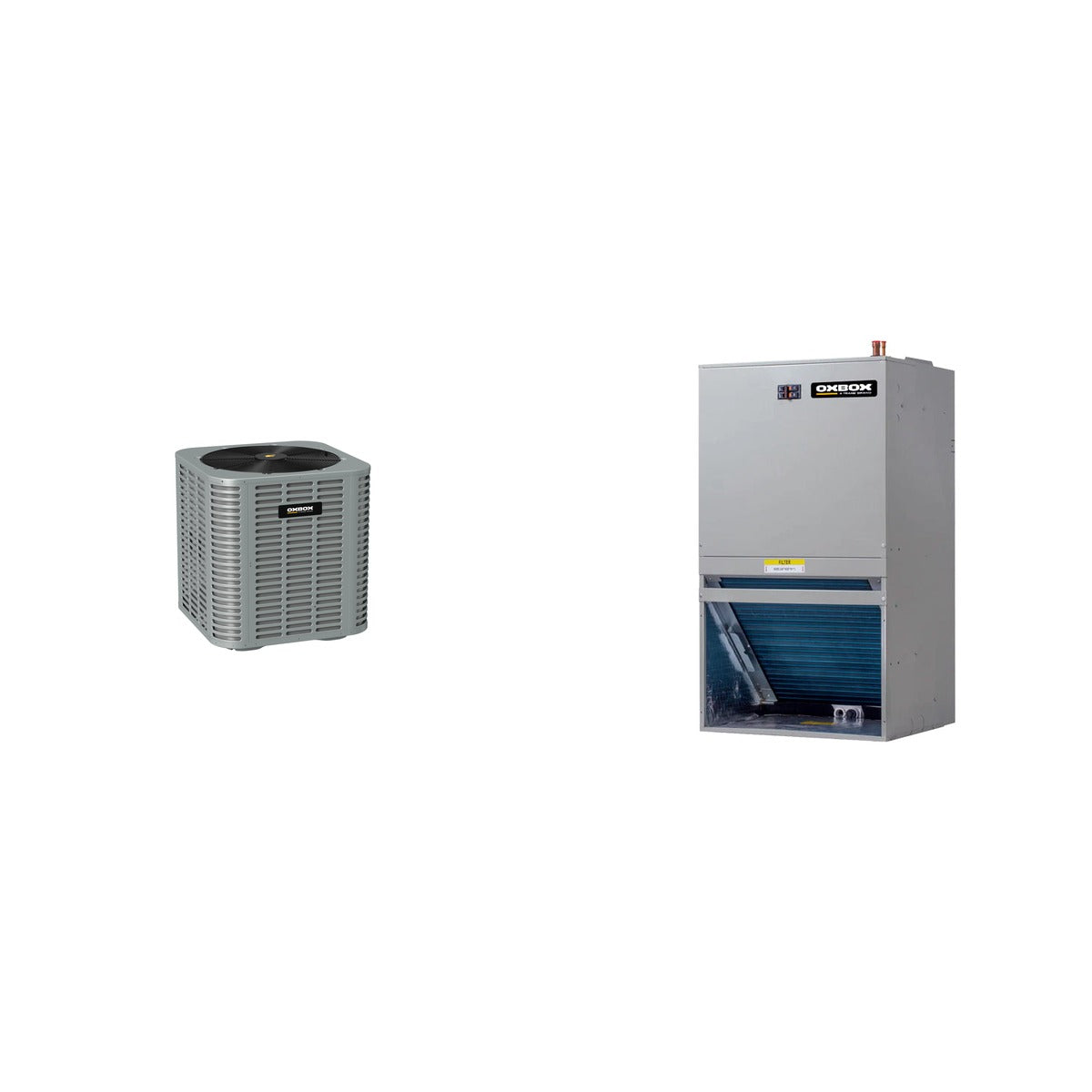

This bundle includes essential components for an efficient residential HVAC system, combining the Oxbox J5AC3018A1000 Central Air Conditioner with the Oxbox 5JMM5A0A24M21S Wall-Mount Air Handler. The air conditioner provides a reliable 1.5-ton cooling capacity with a high efficiency rating of 13.4 SEER2, while the air handler enhances airflow with its ECM motor and is adaptable to various SEER models. Together, these units ensure optimal performance, energy efficiency, and compatibility with R-454B refrigerant, making them ideal for modern residential applications.

What's Included

• Oxbox J5AC3018A1000 - Central Air Conditioner 1.5 Ton 13.4 SEER2 R-454B Residential Cooling (Qty x1)

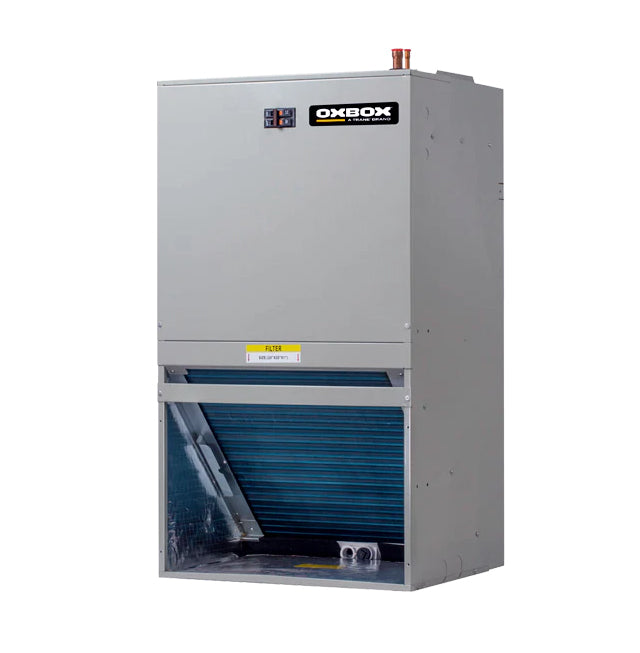

• Oxbox 5JMM5A0A24M21S - Wall-Mount Air Handler, 2 Ton, ECM Motor, R-454B (Qty x1)

Key Details

• Weight of Bundle: 297 lb (Oxbox 200 lb + Oxbox 97 lb)
• Cooling Capacity: 1.5 tons (AC), 2 tons (Air Handler)
• SEER2: 13.4
• Refrigerant: R-454B (A2L)
• Maximum Overcurrent Protection (MOCP): 21.2 amps
• Liquid Line Connection: 3/8 inch
• Suction Line Connection: 3/4 inch
• Cabinet Dimensions (AC): 24-15/16 x 23-5/8 x 23-5/8 inches
• Height (Air Handler): 36.5 inches
• Width (Air Handler): 20.5 inches
• Depth (Air Handler): 15 inches

Use & Compatibility

This bundle is designed for residential and light commercial HVAC systems, providing an efficient cooling solution when paired together. The air conditioner serves as the outdoor unit, while the wall-mount air handler is intended for indoor installation. Both units are compatible with R-454B refrigerant and should be used in matched configurations to ensure optimal performance.
