Oxbox 1.5-Ton 18000 BTU R-454B 13.4 SEER2 Condenser & Coil System - J5AC3018A1000+J5MXCB016AC6HC

Description

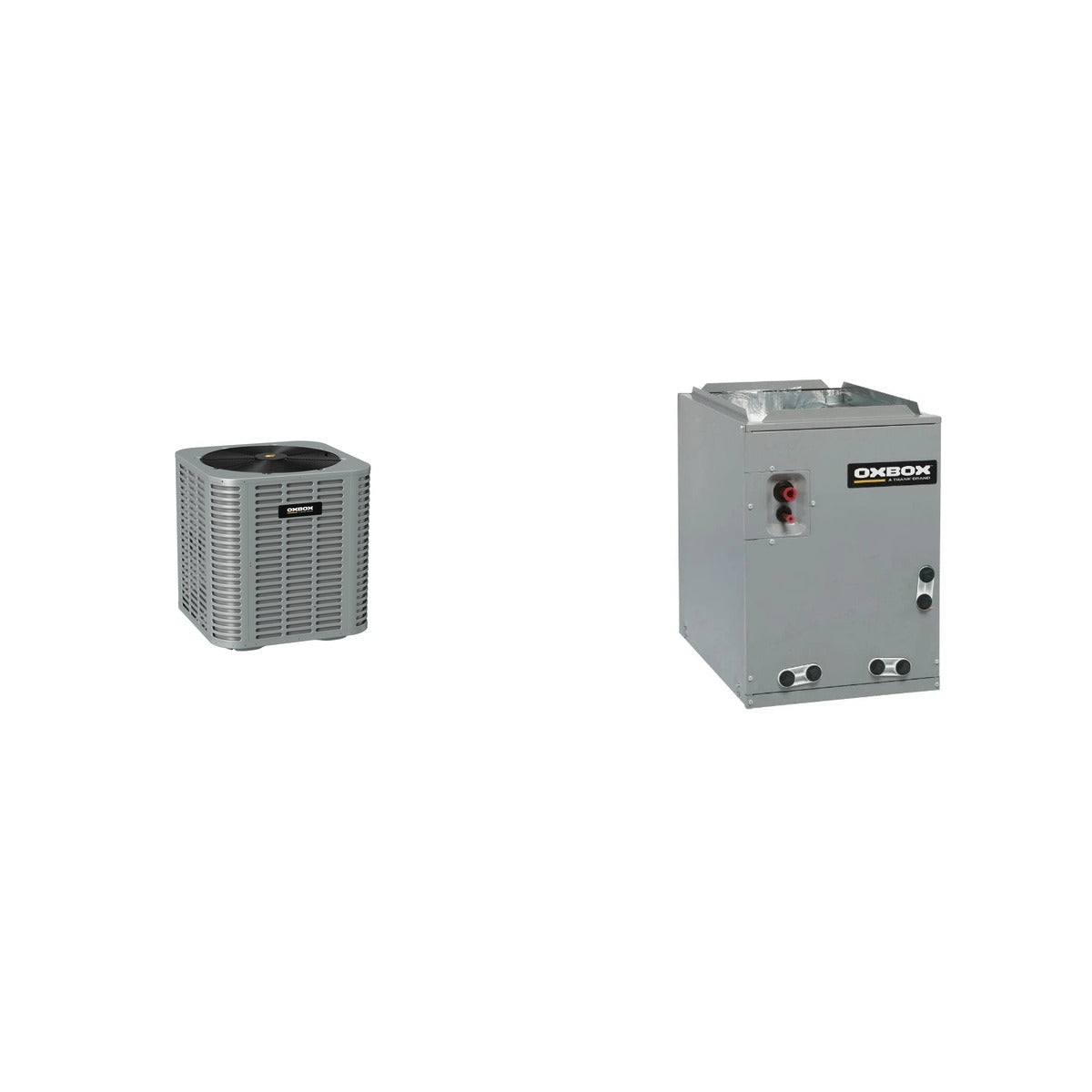

This bundle features the Oxbox J5AC3018A1000 Central Air Conditioner and the Oxbox J5MXCB016AC6HC Evaporator Coil, creating a complete cooling solution for residential applications. The 1.5-ton air conditioner is designed for efficient cooling with a 13.4 SEER2 rating, while the all-aluminum evaporator coil ensures durability and compatibility with R-454B refrigerant. Together, these components deliver reliable performance and energy efficiency, making them an ideal choice for homeowners seeking to upgrade their HVAC systems.

What's Included

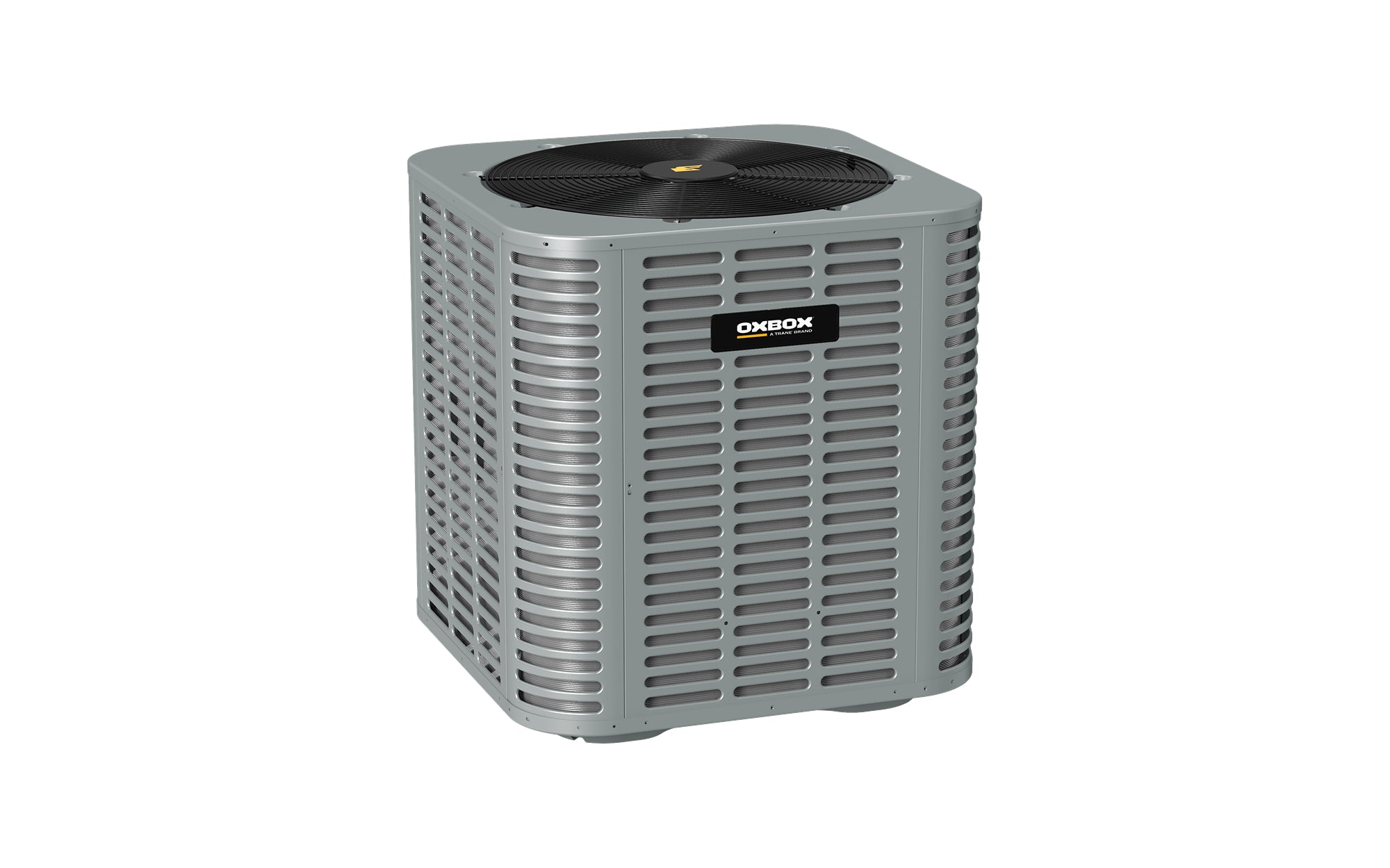

• Oxbox J5AC3018A1000 - Central Air Conditioner (Qty x1)

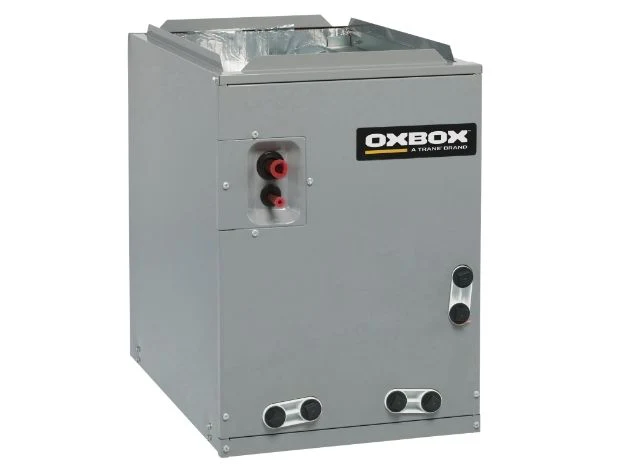

• Oxbox J5MXCB016AC6HC - Evaporator Coil (Qty x1)

Key Details

• Weight of Bundle: 252 lb (Oxbox 200 lb + OB-J5MXCB016AC6HC 52 lb)
• Cooling Capacity: 1.5 tons
• SEER2: 13.4
• Refrigerant: R-454B (A2L)
• Maximum Overcurrent Protection: 21.2 amps
• Liquid Line Connection: 3/8 inch
• Suction Line Connection: 3/4 inch
• Cabinet Dimensions (AC): 24-15/16 x 23-5/8 x 23-5/8 inches
• Cabinet Size (Coil): B-Cabinet
• Construction: All-Aluminum Coil
• Dimensions (Coil): 17.5 x 21.0 x 20.0 inches

Use & Compatibility

This bundle is designed for residential ducted split-system air conditioning. The air conditioner and evaporator coil are compatible with R-454B refrigerant and can be integrated with various indoor and outdoor units. Ensure that all components are matched according to AHRI certified combinations for optimal performance.
