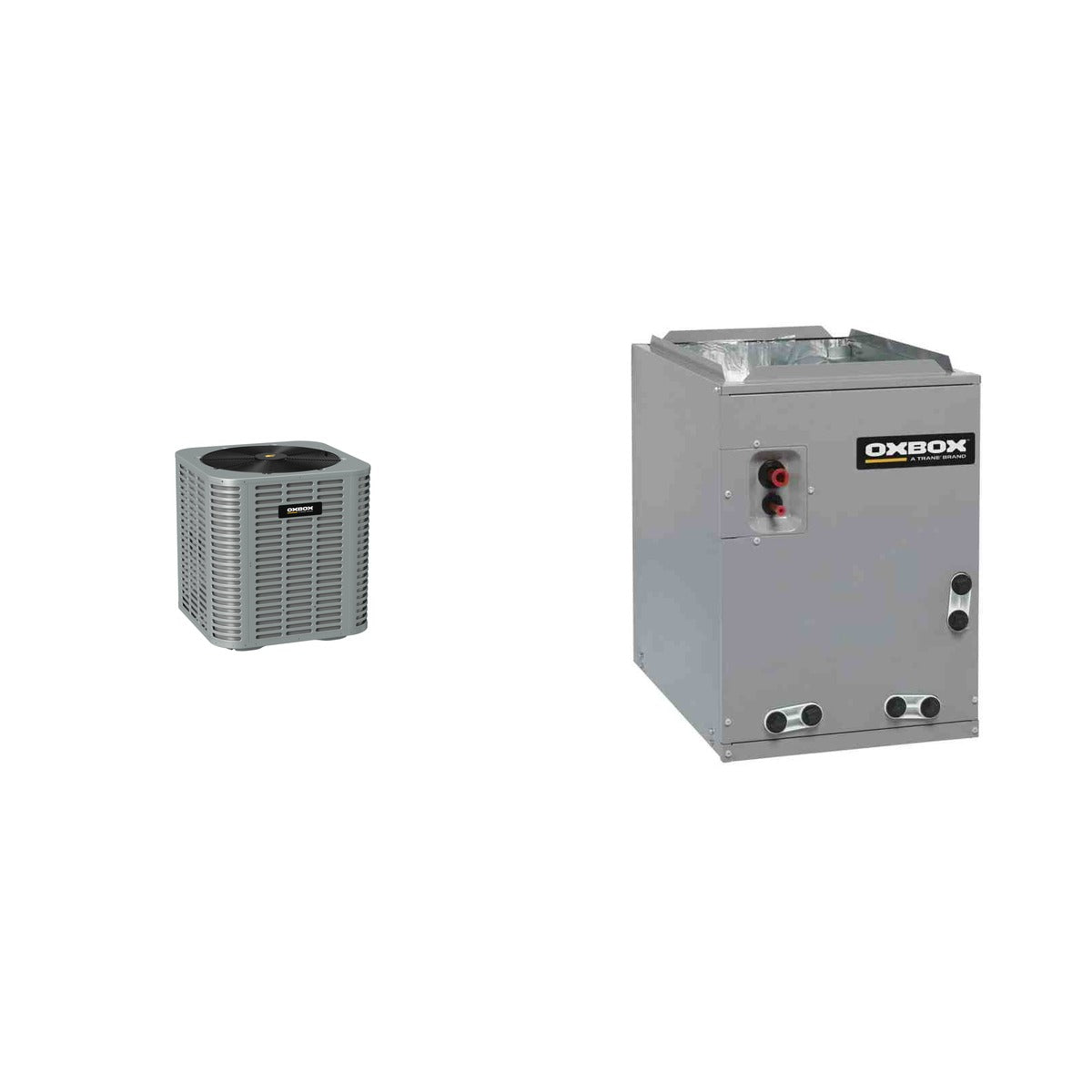

Oxbox 1.5-Ton 18000 BTU R-454B 13.4 SEER2 Condenser & Coil System - J5AC3018A1000+J5MXCA003AC6HC

Description

This comprehensive HVAC bundle includes essential components for efficient residential cooling. The Oxbox J5AC3018A1000 Central Air Conditioner, rated at 1.5 tons and 13.4 SEER2, pairs seamlessly with the Oxbox J5MXCA003AC6HC indoor coil, designed for optimal performance in split-system applications. Together, these units ensure effective temperature control and humidity management, making them ideal for single-family homes or light commercial spaces. With the use of R-454B refrigerant, this bundle not only meets but exceeds current efficiency standards, providing a sustainable cooling solution.

What's Included

• Oxbox J5AC3018A1000 - Central Air Conditioner 1.5 Ton 13.4 SEER2 R-454B Residential Cooling (Qty x1)
• Oxbox J5MXCA003AC6HC - Coil; R454b; 1.5-3.0 A-cab Cased Coil (Qty x1)

Key Details

• Weight of Bundle: 275 lb (Oxbox 200 lb + Oxbox 75 lb)
• Cooling Capacity: 1.5 tons
• SEER2: 13.4
• Refrigerant: R-454B (A2L)
• Maximum Overcurrent Protection (MOCP): 21.2 amps
• Liquid Line Connection: 3/8 inch
• Suction Line Connection: 3/4 inch
• Coil Construction: All-Aluminum
• Installation: Upflow, Downflow & Horizontal

Use & Compatibility

This bundle is designed for residential split HVAC systems, providing efficient heating and cooling solutions. The outdoor air conditioner is compatible with indoor coils rated for R-454B refrigerant, specifically within the 1.5-ton capacity range. Ensure that all components are matched according to current AHRI certified combinations for optimal performance.
