Oxbox 1.5-Ton 18000 BTU R-454B 13.4 SEER2 Condenser & Coil System - J5AC3018A1000+J5GXCA003AC6HU

Description

This bundle features essential components for a complete HVAC system, ensuring optimal performance and efficiency. The Oxbox J5AC3018A1000 Central Air Conditioner provides reliable cooling with a 1.5-ton capacity and a high SEER2 rating of 13.4, making it an excellent choice for residential applications. Paired with the Oxbox J5GXCA003AC6HU Cased Evaporator Coil, designed for 1.5 to 3.0 tons, this combination offers seamless integration and enhanced durability thanks to its all-aluminum construction. Together, these products deliver a comprehensive solution for modern HVAC needs, utilizing R-454B refrigerant to meet environmental standards while providing efficient cooling performance.

What's Included

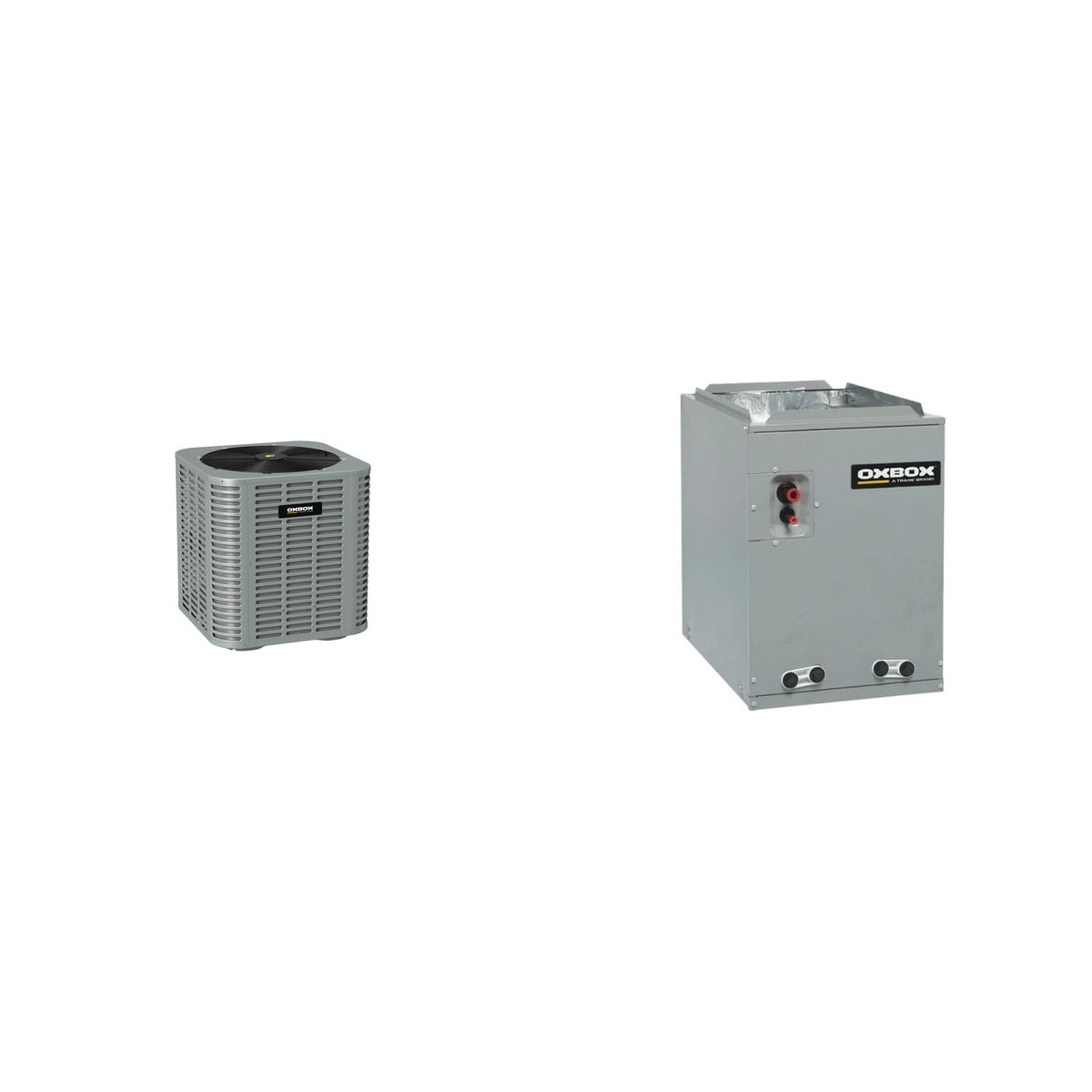

• Oxbox J5AC3018A1000 - Central Air Conditioner 1.5 Ton 13.4 SEER2 R-454B (Qty x1)
• Oxbox J5GXCA003AC6HU - 1.5 - 3.0 Ton Multi-Position R-454B All-Aluminum Cased Evaporator Coil (Qty x1)

Key Details

• Weight of Bundle: 240 lb (Oxbox 200 lb + Oxbox 40 lb)
• Cooling Capacity: 1.5 tons
• SEER2: 13.4
• Refrigerant: R-454B (A2L)
• Maximum Overcurrent Protection (MOCP): 21.2 amps
• Liquid Line Connection: 3/8 inch
• Suction Line Connection: 3/4 inch
• Cabinet Dimensions (AC): 24-15/16 x 23-5/8 x 23-5/8 inches
• Cabinet Size (Coil): A-Cabinet (Fits 14.5 inch Furnaces)
• Construction: All-Aluminum

Use & Compatibility

This bundle is designed for residential ducted split-system air conditioning applications. The Oxbox J5AC3018A1000 serves as the outdoor condensing unit, while the J5GXCA003AC6HU evaporator coil integrates seamlessly with compatible indoor systems. Ensure that the indoor coil and air handler are rated for R-454B refrigerant and matched to a 1.5-ton capacity for optimal performance.
