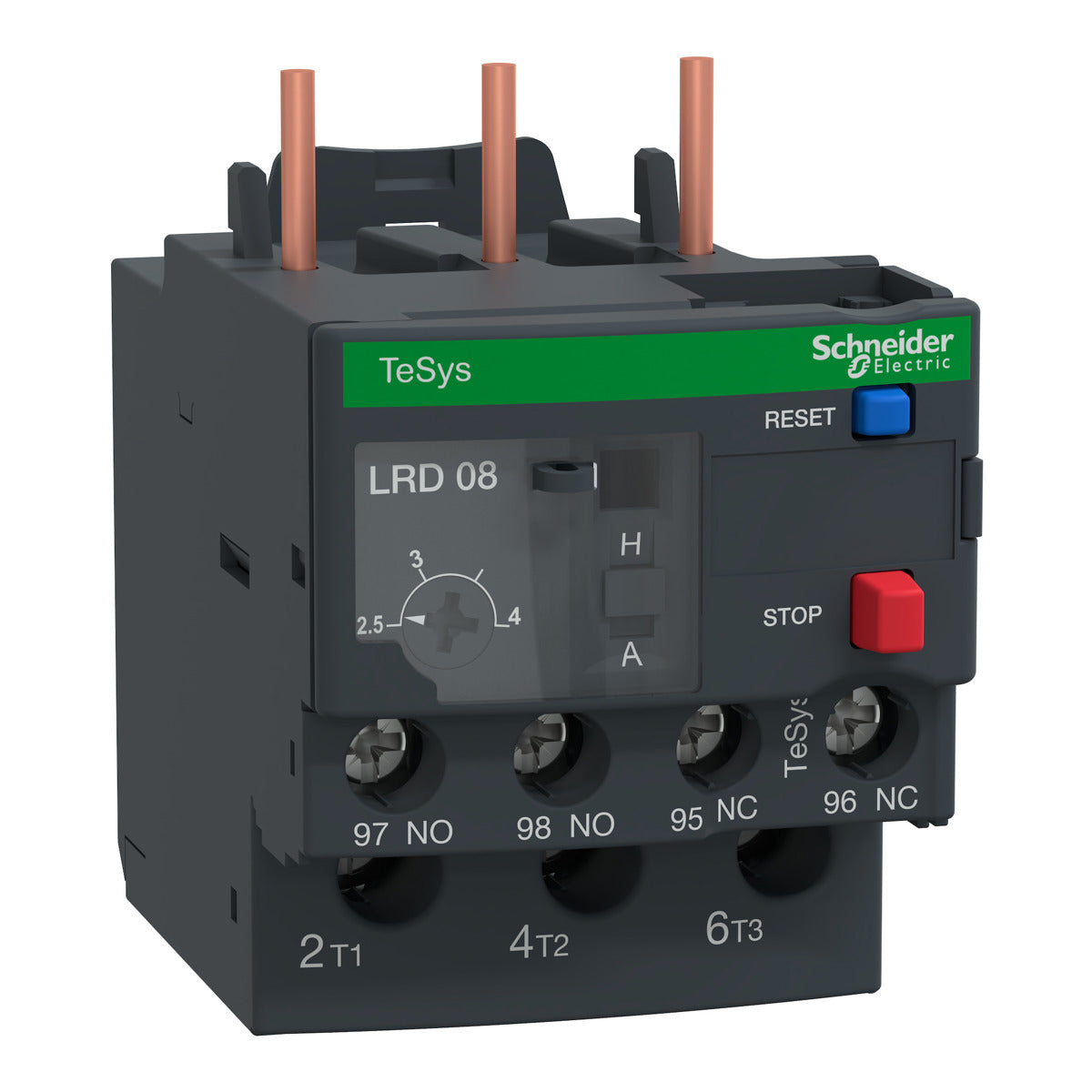

Schneider Electric LRD08L TeSys Deca Thermal Overload Relay 600 Volt 2.5 to 4 Amp

Product Description

The Schneider Electric LRD08L TeSys Deca Thermal Overload Relay is engineered to protect motors from overheating and ensure efficient operation. Designed for seamless integration with TeSys D contactors, this relay offers advanced features including manual test and reset buttons, automatic reset options, and phase unbalance detection capabilities.

• Integrated phase unbalance protection preserves motor integrity by detecting imbalanced electrical loads.
• Manual and automatic reset options enhance operational flexibility.
• Features a compact design measuring 45mm in width, which facilitates easy integration into various setups.

Product Highlights

The LRD08L is recognized for its reliability and versatility. Its compact construction does not only save space but also makes the installation process straightforward. It's equipped with trip auxiliary contacts and a flag indicator for enhanced diagnostic capabilities. Moreover, this model is certified under multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine, making it suitable for global applications.

Technical Specifications

• Current range: 2.5 to 4 amps
• Voltage capability: Up to 600 volts
• Protection class: Thermal overload class 20
• Dimensions: 2.99 inches height, 1.77 inches width, 3.00 inches depth
• Weight: 0.32 pounds
