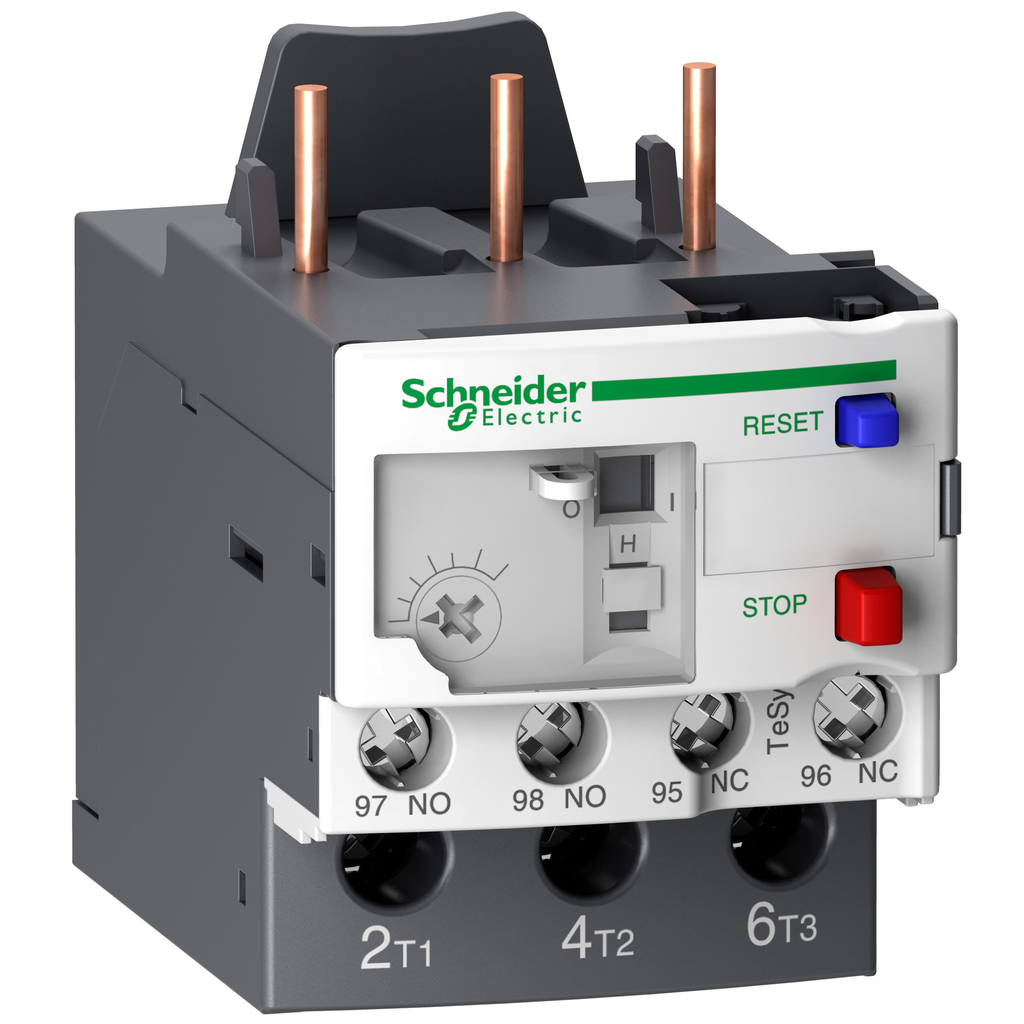

Schneider Electric LR3D32L Thermal Overload Relay 690V 23-32A Class 20

Product Description

The Schneider Electric LR3D32L Thermal Overload Relay is engineered for robust performance in industrial settings. Compatible with TeSys D contactors, it provides effective motor protection by monitoring thermal loads within electrical systems. This relay is suited for handling motor applications of up to 15kW at 400V and adjustable thermal settings between 23 to 32 amps.

• Direct mount on TeSys D contactors for streamlined integration.
• Features manual and automatic reset functions with test buttons.
• Equipped with a trip indicator for enhanced safety monitoring.

Product Highlights

The LR3D32L stands out with its global certifications and compliance to multiple standards, ensuring reliable operation across various regions. It supports a broad voltage range up to 690V and offers manual control options including test and reset functionalities.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LR3D32L

Technical Specifications

• Thermal Setting Range: 23-32A
• Tripping Class: 20
• Voltage: Up to 690 Volt
• Width: 45 mm
• Height: 66 mm
• Depth: 76 mm
• Weight: 0.32 lb
• Certifications: IEC, UL, CSA, ABS, ATEX INERIS
• Control Type: Red push-button stop;Blue push-button reset
