Overly Hautz 284B2 NEMA Adjustable Motor Base BASE10 19-3/4 L x 16-7/8 W x 2 D

Product Description

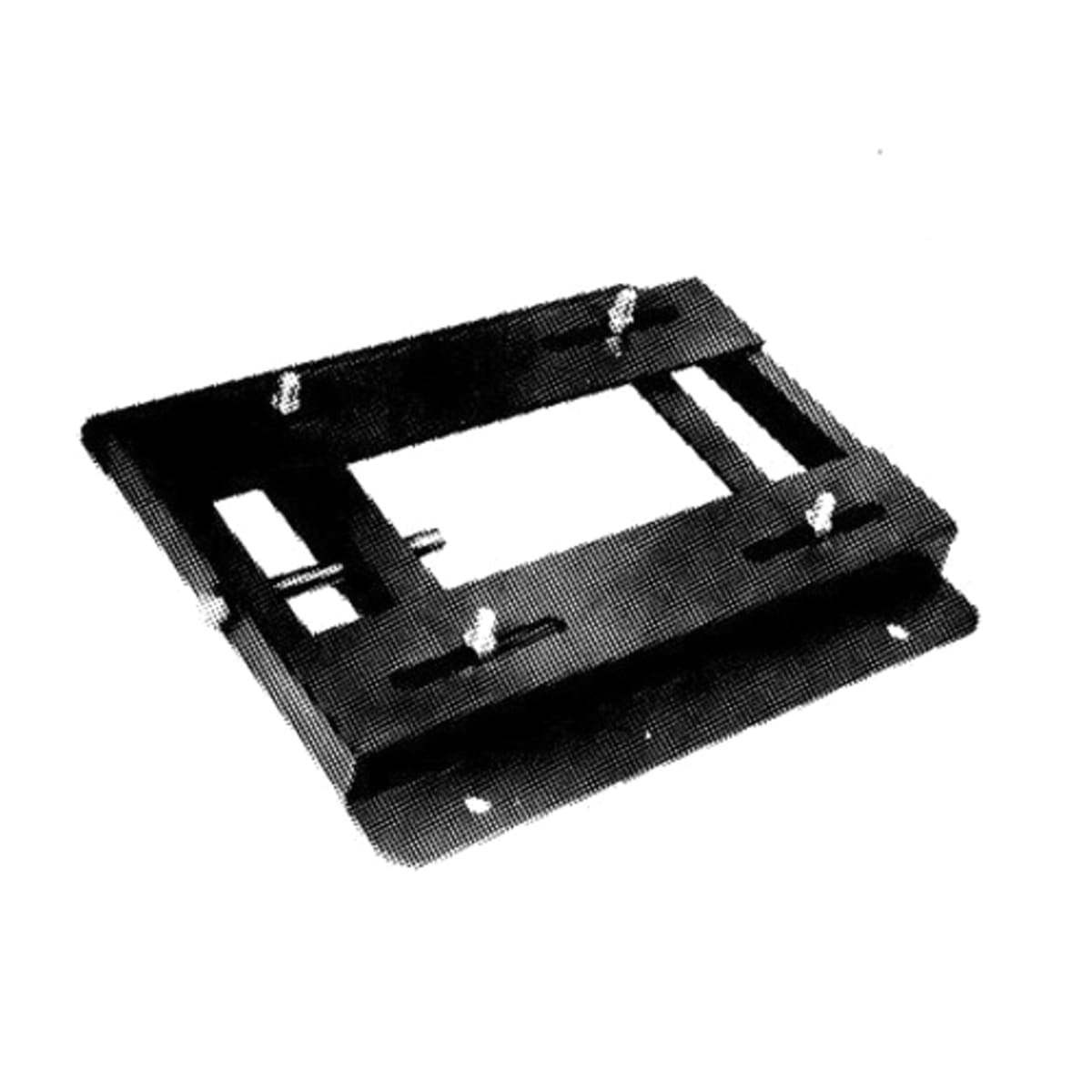

The Overly Hautz Motor Base, model 284B2, is designed for adjustable mounting of NEMA motors. This motor base is made of steel and is suitable for motors ranging from large fractional to about 20 horsepower. With dimensions measuring nineteen and three-quarter inches in length, sixteen and seven-eighths inches in width, and two inches in depth, this base provides stability and versatility for various applications.

• Steel construction ensures durability.
• One-piece formed base plate enables a secure fit.
• Single or double bolt adjustment with a push-pull action for easy adjustments.

Product Highlights

Commonly used for 284T frame larger motors, this adjustable motor base accommodates various installation requirements.

Product Information

Standard Information

• Brand: Overly Hautz
• Part Number: BASE10

Technical Specifications

• Type: Style B
• Material: Steel
• Dimensions: 19.75 Inch L x 16.875 Inch W x 2 Inch D
• Bolt Size: 0.5 Inch
• Use With: 284T Frame Larger Motor
• Net Weight: 21 lb
