Overly Hautz 213A2 NEMA Adjustable Motor Base BASE06

Product Description

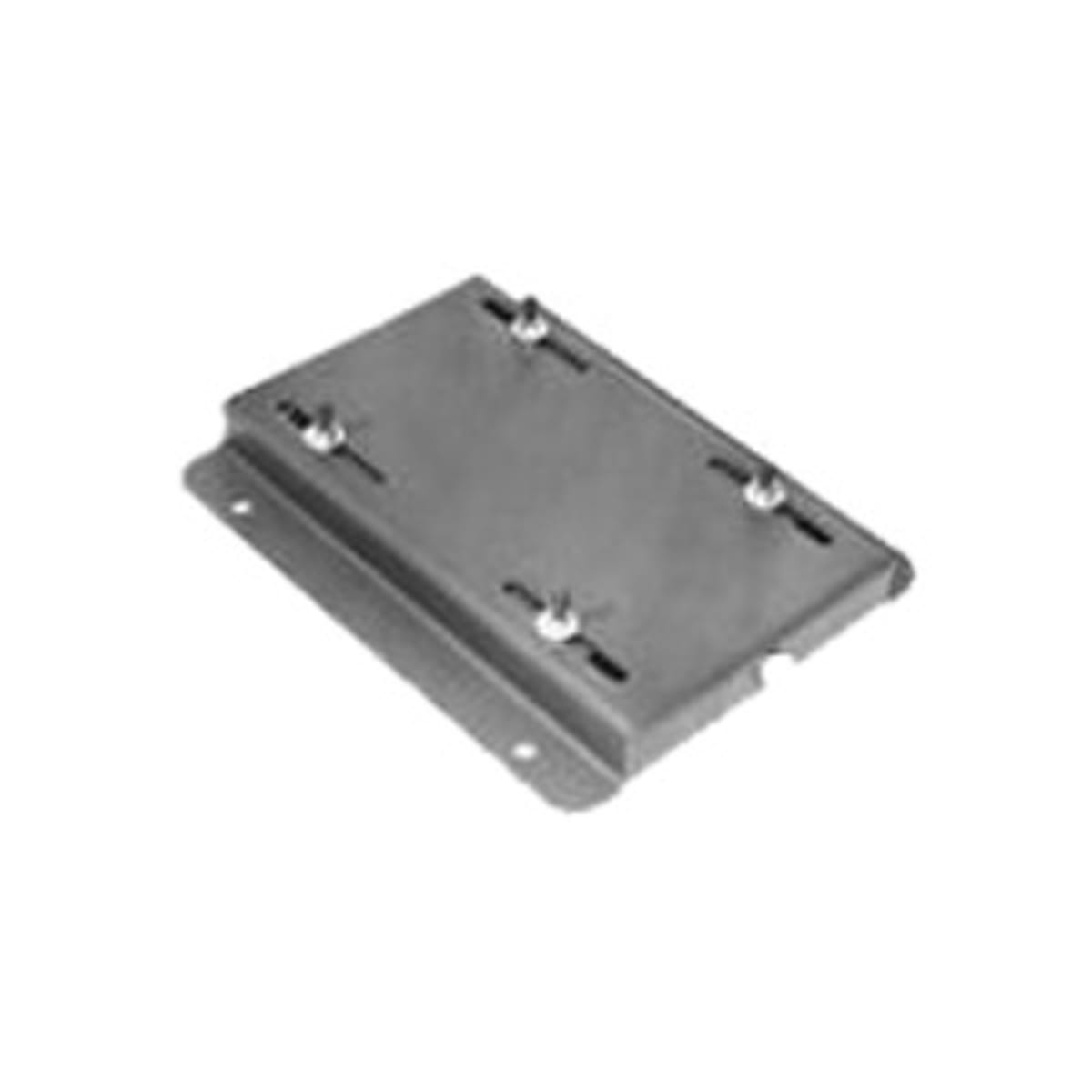

The Overly Hautz Motor Base 213A2 is a NEMA Adjustable Motor Base designed for smaller motors up to twenty horsepower. This base is constructed from steel and features a one-piece formed base plate. The design includes a unique single or double bolt adjustment capability with a push-pull action for ease of use.

• Accommodates motors ranging from large fractional to approximately 20 HP.
• Featuring a durable steel construction.
• Includes adjustable bolts for flexible installation.

Product Highlights

The base is suitable for use with a 213T frame smaller motor and is ideal for various applications requiring motor support.

Product Information

Standard Information

• Brand: Overly Hautz Motor Base
• Part #: BASE06

Technical Specifications

• Series: OH-NEMA-ADMBS
• Type: Style A
• Material: Steel
• Dimensions: 15 inches L x 11 inches W x 1.75 inches D
• Net Weight: 14 lb
• For Use With: 213T Frame Smaller Motor
• Bolt Size: 3/8 inch dia x 1-3/4 inch L, 1/2 inch dia x 6 inch L
