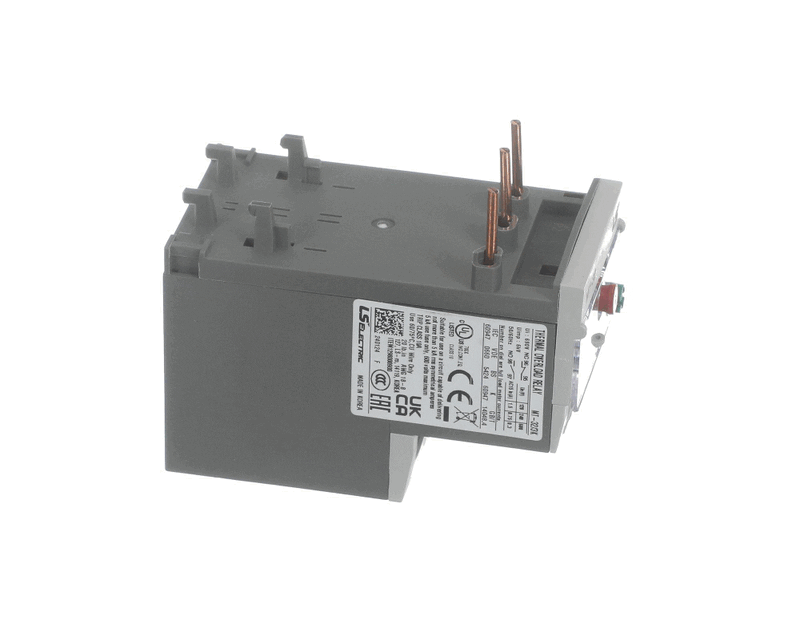

Overload 01-1000v6-00346 Motor Overload Relay 4-6A

Product Description

The OVERLOAD 01-1000v6-00346 is a Class 10 motor overload relay rated for 4 to 6 amps, designed to protect single-phase and three-phase motors from sustained overcurrent conditions. Class 10 trip timing means the relay will interrupt the circuit within 10 seconds at six times the full-load ampere setting, providing fast protection suited to standard commercial motor loads. This part is sourced as a Baxter commercial appliance component and is intended for installation by qualified service technicians working on commercial food service equipment.

This overload relay is used in commercial appliance applications where motor protection is required within the 4 to 6 amp operating range. It fits into motor starter assemblies or contactor circuits where overcurrent protection is mandated by equipment design. Typical installations include commercial mixing, conveying, or processing equipment motors found in commercial kitchen and food service environments. Service and installation are performed by commercial appliance technicians or licensed electricians familiar with motor control circuits.

Key Features

• Class 10 trip response for fast motor protection under overcurrent conditions
• Adjustable current range of 4 to 6 amps to match motor full-load ampere rating
• Designed for use in commercial appliance motor control circuits
• OEM Baxter part for commercial food service equipment applications

Compatibility

Designed as an OEM-specified motor overload relay for Baxter commercial appliance equipment. Refer to the equipment service manual to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified electrician or certified commercial appliance technician. Disconnect and lock out all power to the equipment before removing or installing this relay. Set the overload adjustment dial to match the motor nameplate full-load ampere rating after installation. Follow applicable NEC requirements for motor branch circuit and overload protection.

Technical Specifications

• Current Range: 4 to 6 amps
• Trip Class: Class 10

Standard Information

• Brand: OVERLOAD, 4-6A CLASS 10
• Manufacturer Part Number: 01-1000v6-00346
