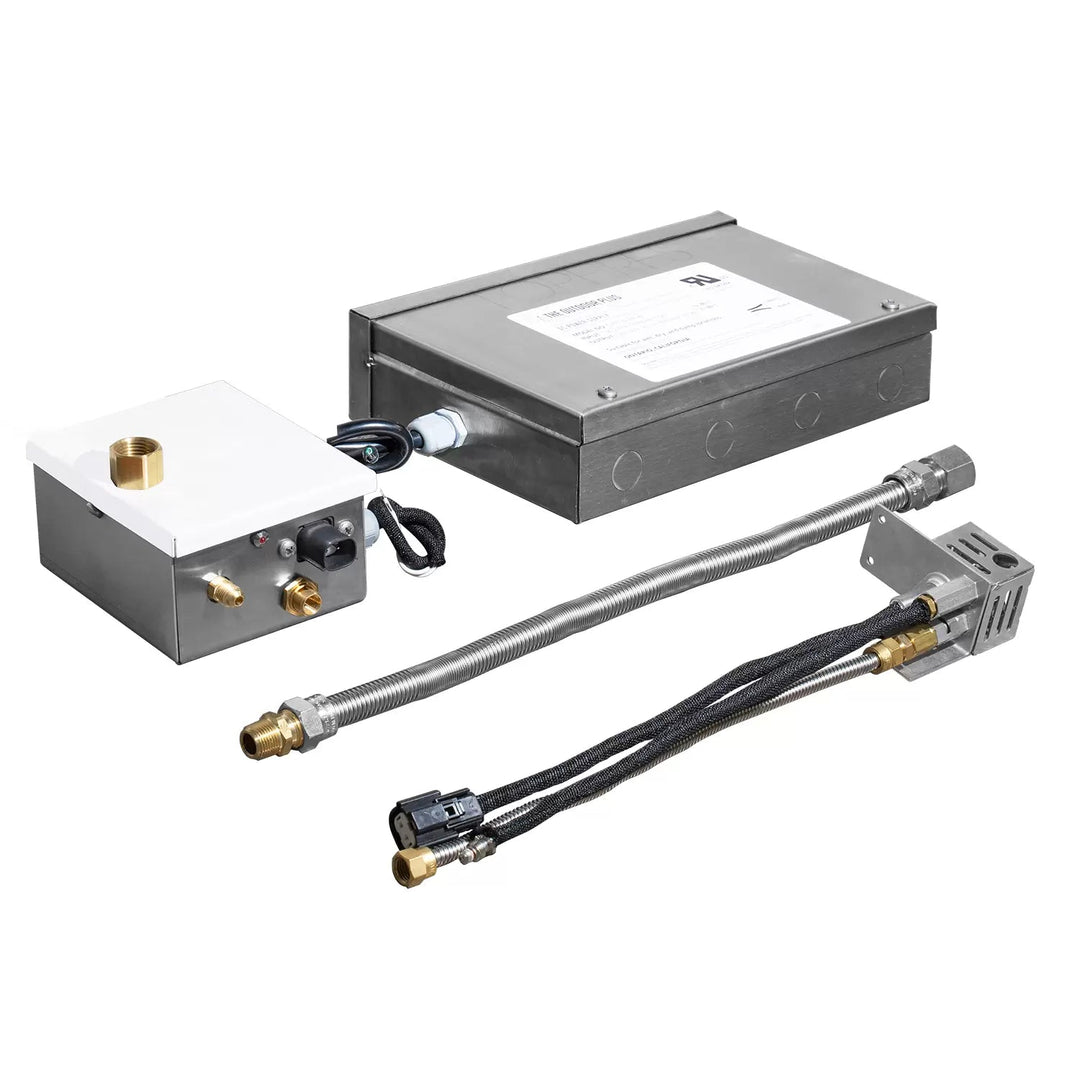

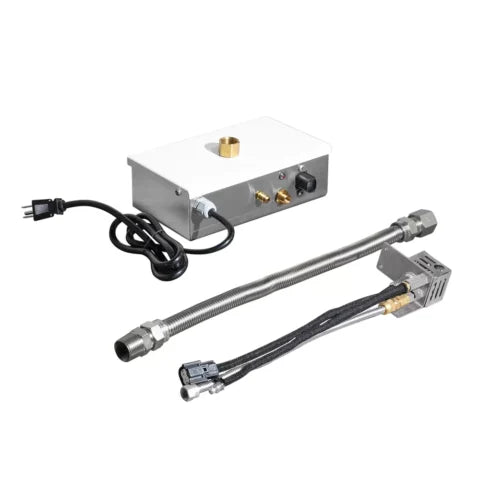

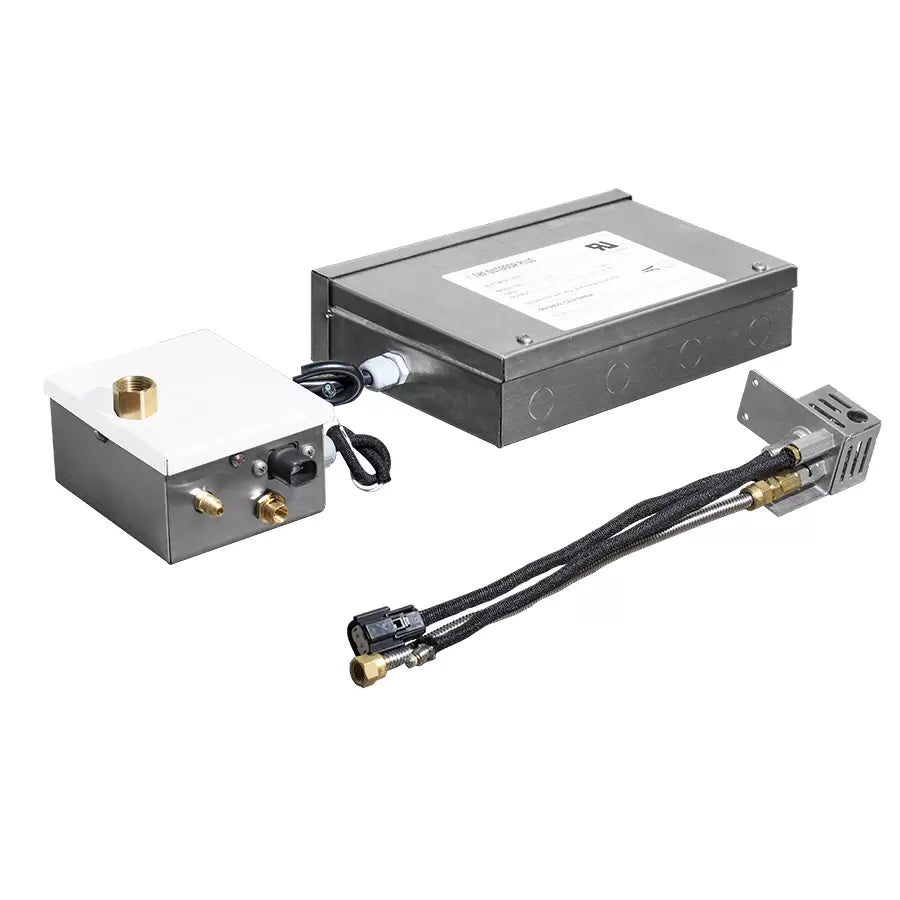

Outdoor Plus TOP-500EIS-100-30DC-VP Mini Capacity Fire Pit Electronic Ignition System

Product Description

The OUTDOOR PLUS TOP-500EIS-100-30DC-VP Mini Capacity Fire Pit Electronic Ignition System is designed for outdoor fire features with a maximum gas output of 190,000 BTU/hr. This CSA-certified system offers safety with continuous flame monitoring and multiple relight attempts before shutting off the gas supply. It is suitable for installations near water features.

• Enhanced electronics protection against moisture and damage.
• Reliable ignition with Hot Surface Ignition (HSI).
• Fast-responding Thermocouple Flame Sense system.

Product Highlights

Offers reliable ignition and continuous flame monitoring for safety. Features moisture-resistant components and LED diagnostics for easy troubleshooting. Ideal for fire pits near pools.

Product Information

Standard Information

• Brand: OUTDOOR PLUS
• Manufacturer Part Number: TOP-500EIS-100-30DC-VP

Technical Specifications

• Maximum Gas Output: 190,000 BTU/hr
• Inlet / Outlet Size: 1/2\
• Electrical Rating: 30V DC
• Temp Range: -20 to 175 Temp Range with safety shutoff at 175 F
• Inlet Gas Pressure Limit: 1/2 PSI
• Hot Surface Igniter (HSI): Thermocouple Flame Sensor
