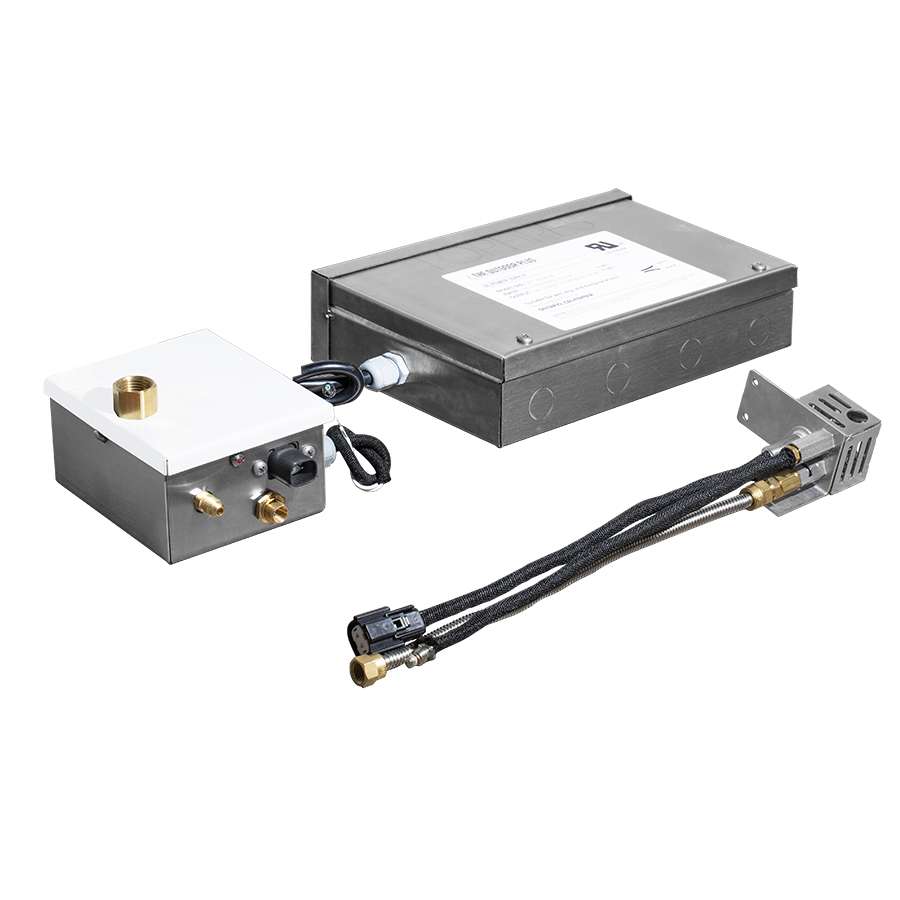

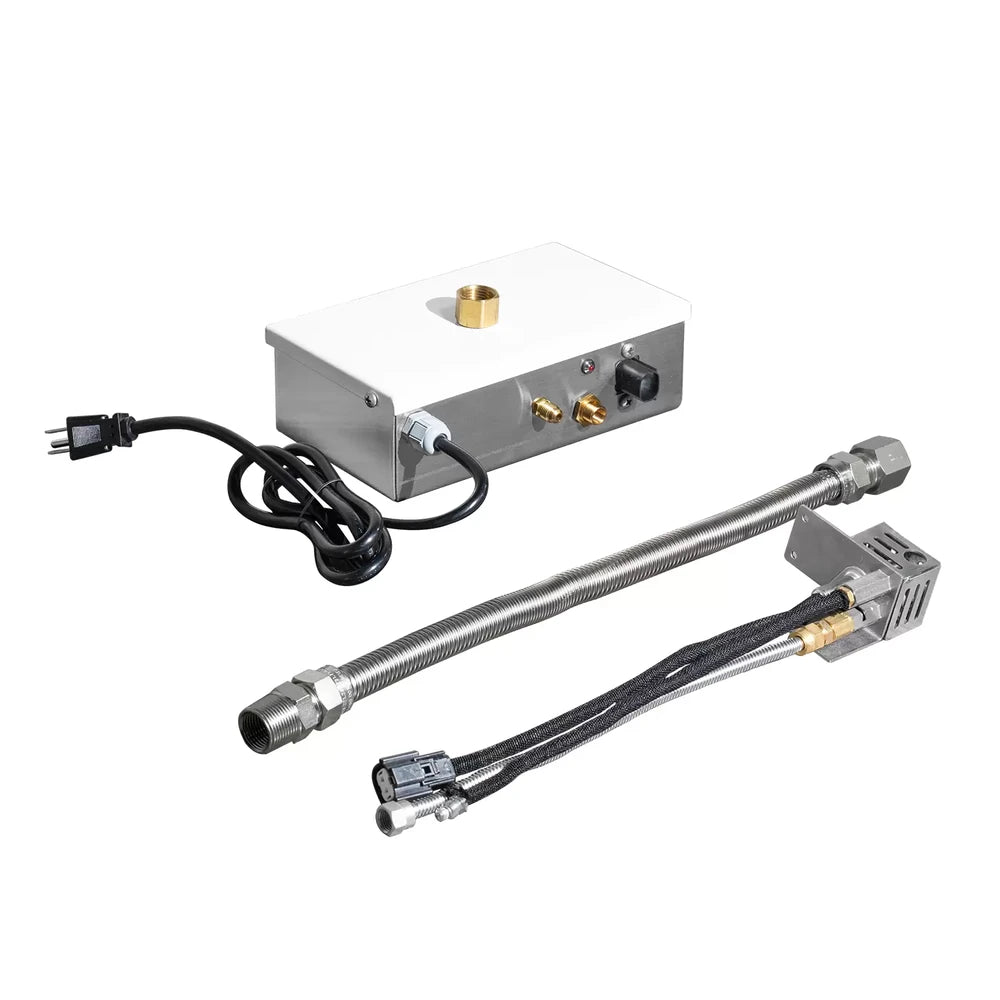

Outdoor Plus TOP-500EIS-100-30DC Low Voltage Ignition System (DC Unit) Mini Capacity Up to 195,000 BTU

Product Description

The OUTDOOR PLUS TOP-500EIS-100-30DC is a low voltage DC ignition system designed for small to medium outdoor fire features, capable of handling up to 195,000 BTU. This compact unit provides reliable performance for fire pits and other gas-fueled installations, operating with a 30V DC electrical rating. It ensures consistent ignition for various outdoor applications, offering a robust solution for managing gas output.

• Powers small to medium outdoor fire features
• Compact and efficient DC ignition system
• Delivers reliable performance

Product Highlights

Durable, weather-resistant, and easy to install for consistent ignition in smaller outdoor fire features.

Product Information

Standard Information

• Brand: OUTDOOR PLUS
• Manufacturer Part Number: TOP-500EIS-100-30DC

Technical Specifications

• Manufacturer Part Number: TOP-500EIS-100-30DC
• Category: Ignition Kits & Components
• BTU Capacity: Up to 195,000
• Inlet/Outlet Size: 1/2” FIP
• Electrical Rating: 30V DC
• Operating Temperature Range: -20° to 175°F with safety shutoff at 175°F
• Diagnostics: LED diagnostics for field service and troubleshooting
• Fuel Compatibility: Natural Gas and Liquid Propane (Portable LP Tank or Hard Line LP)
• Certifications: CSA Certified ANSI Z21.97-(2017) / CSA 2.41-(2017)
