Ouellet OHVU20034AM-24 Cyclone Commercial 20 kW Electric Unit Heater

Product Description

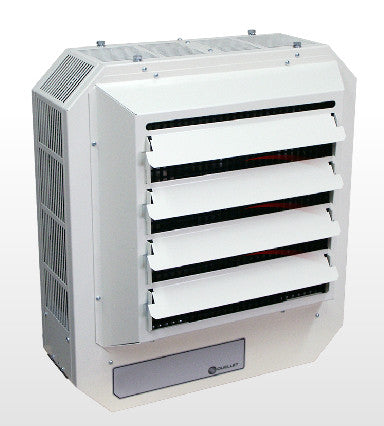

The Ouellet OHVU20034AM-24 is a commercial electric unit heater suitable for large commercial, industrial, and institutional spaces. It has a draw-through design that captures air from the top and sides, delivering heated air through a front egg-crate discharge air diffuser.

• Heating Capacity: 20 kW with 68,240 BTUs

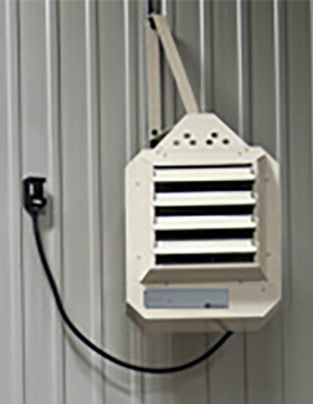

• Installation: Mountable on wall or ceiling with included brackets
• Construction: Heavy-duty steel cabinet with powder coat finish for durability

Product Highlights

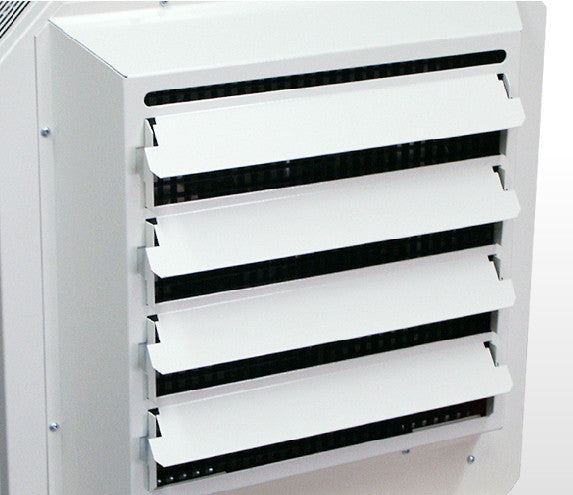

This unit heater features adjustable louvers for customized air direction while ensuring safety with an enclosed fan design. It includes a fan delay to extend the life of the unit by removing residual heat.

Product Information

Standard Information

• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric

Technical Specifications

• Heating BTUs: 68,240
• Power (kW): 20
• CFMs: 1,300
• Temperature Rise (°F): 49
• Dimensions: Width 22 inches, Depth 16.25 inches, Height 24.5 inches
• Net Weight: 90 lbs
• Min. Mounting Height: 6 feet
• Top to Ceiling Clearance: 6 inches
