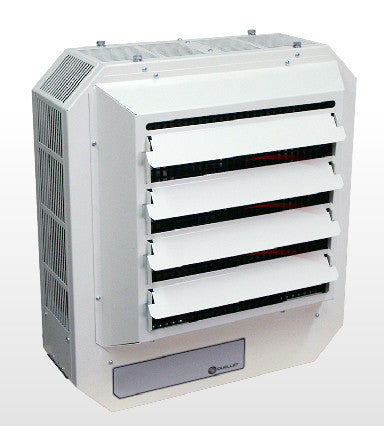

Ouellet OHVU050XX Cyclone Commercial 5 kW Electric Unit Heater

Product Description

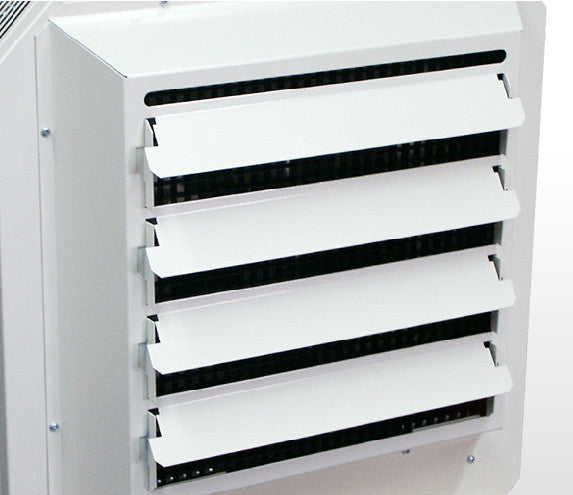

The Ouellet Cyclone commercial electric unit heater, model OHVU050XX, is built for challenging environments in commercial and industrial settings. It effectively draws in air from the top and sides, efficiently heating large spaces. The egg-crate air diffuser allows controlled air direction with adjustable louvers.

• Field convertible from 1-phase to 3-phase power.
• Constructed from durable steel with a powder coat finish.
• Includes wall or ceiling mounting brackets.

Product Highlights

The heater features an enclosed motor for protection, which improves longevity and lifespan. Install options include vertical and horizontal mounting.

Product Information

Standard Information

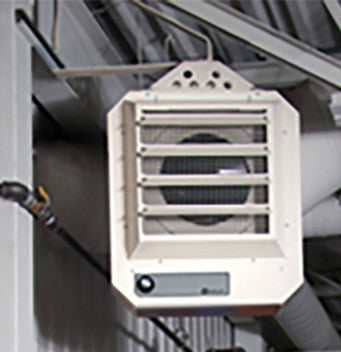

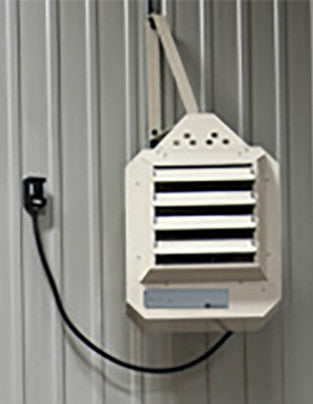

• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric
• Certified Usage: Commercial (Indoor Only)
• Installation Kit: Bracket Included

Technical Specifications

• Heating BTUs: 17060
• kW: 5
• CFMs: 310
• Discharge Air Temperature Rise (°F): 51
• Width (in.): 15.75
• Depth (in.): 9
• Height (in.): 16.5
• Net Weight (lbs.): 40
