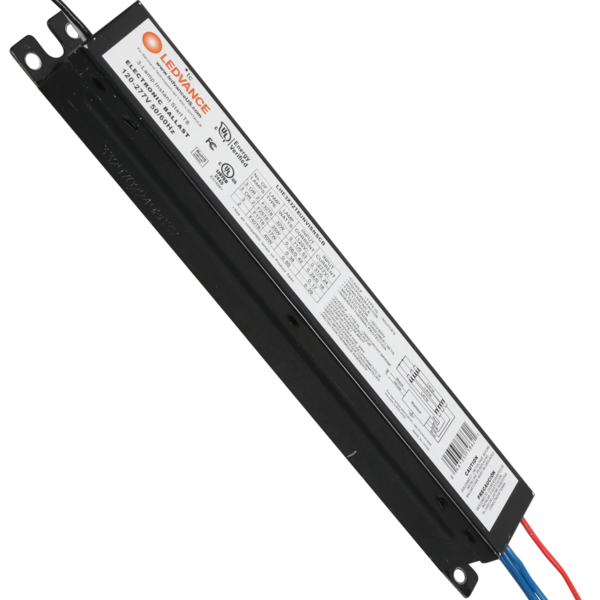

OSRAM LHE3X32T8UNVISNSCB(75862) Electronic Fluorescent Ballast

Product Description

The OSRAM LHE3X32T8UNVISNSCB(75862) is an electronic fluorescent ballast created for operating three F17T8, F25T8, or F32T8 lamps. It uses an instant start method and has a ballast factor of 0.88. This ballast functions within a voltage range of 120 to 277 volts, making it versatile for many applications.

• Suitable for a minimum starting temperature of 0 degrees Fahrenheit.
• Power factor rated at 97% for energy efficiency.
• Designed for both indoor and outdoor use, compliant with UL and CEC standards.

Product Highlights

This ballast ensures full lumen output for optimal performance and fits well in settings like offices, board rooms, and healthcare facilities.

Product Information

Standard Information

• Brand: OSRAM
• MPN: LHE3X32T8UNVISNSCB(75862)

Technical Specifications

• Lighting Technology: Fluorescent
• Voltage: 120/208/240/277 volts
• Ballast Factor: 0.88
• Lamps Operated: 3 lamps
• Operating Temperature: Minimum 0 degrees Fahrenheit
• Power Factor: 97%
• Start Method: Instant Start
• THD: 10%
• Length: 9.5 inches
• Height: 1.1 inches
• Width: 1.3 inches
• Weight: 1.1 pounds
• Warranty: 5-Year Limited
• Case Quantity: 10
