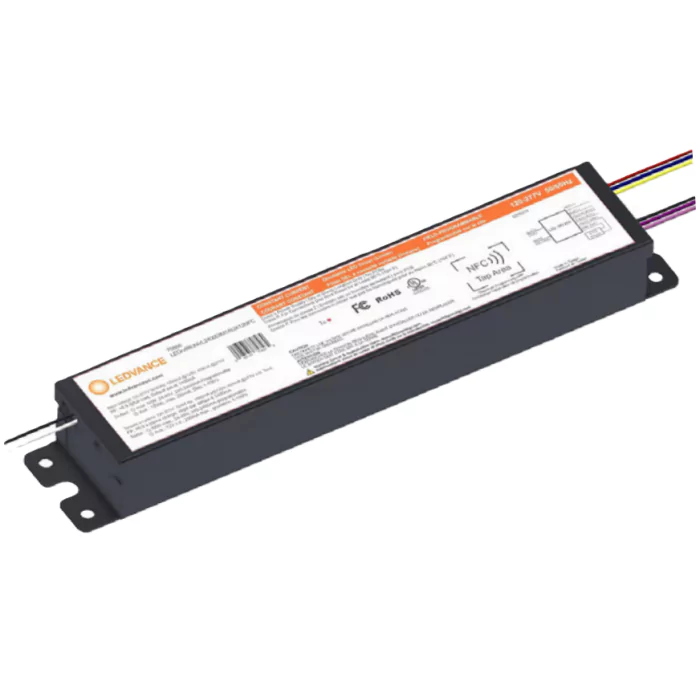

OSRAM LEDRV88UNVL2400DIM1AUX12NFC LED Driver

Product Description

The OSRAM LEDRV88UNVL2400DIM1AUX12NFC is a reliable constant current LED driver designed for various lighting applications. With a power rating of eighty-eight watts, it supports a wide input voltage range from one hundred twenty to two hundred seventy-seven volts. The output current is adjustable from two hundred forty milliamps to two thousand four hundred milliamps, with a default setting of one thousand four hundred milliamps. This driver ensures a maximum output voltage of forty-eight volts.

This model features programmability through a dedicated application, allowing users to customize settings without needing power. Key programmable options include output current, dimming range, and thermal protection features. It meets the California Title 24 standards for flicker and startup time, making it suitable for various installations.

• Adjustable output current from 240mA to 2400mA, configurable via a programming application.
• Supports customization of dimming range, constant lumen output, and thermal protection.
• Compliant with California Title 24 standards for flicker and startup time.

Product Highlights

This driver is ideal for maintaining optimal light output while ensuring energy efficiency and compliance with electrical standards.

Product Information

Standard Information

• Brand: OSRAM
• Order Code: 75858

Technical Specifications

• Input Volts: 120-277V
• Output Current: 240-2400mA (Default 1400mA)
• Max Output Voltage: 48V
• Watts: 88
• LED Type: Constant Current
• Certifications: cULus, FCC, Title24, RoHS
• Class: Class 2
• Dimmable: Yes
• Dimming Type: 0-10V
• Dimensions: 9.5 in. x 1.8 in. x 1.2 in.
