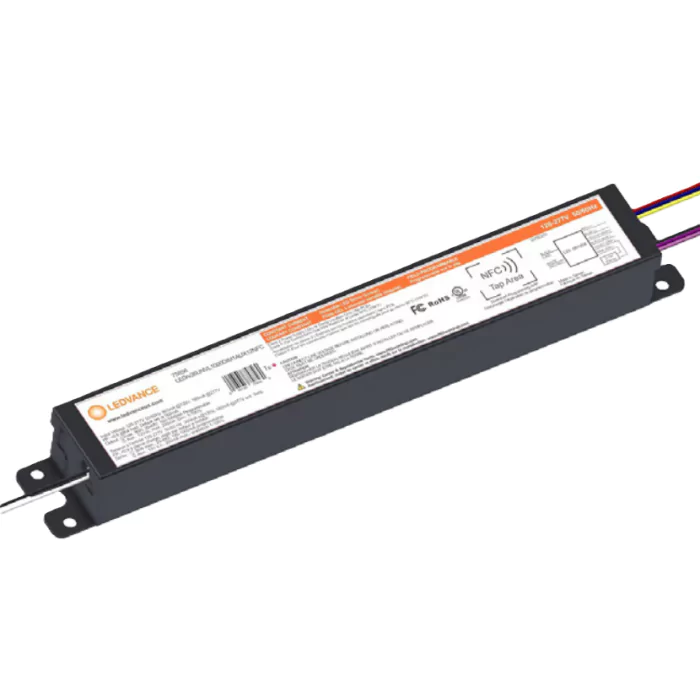

OSRAM LEDRV36UNVL1000DIM1AUX12NFC LED Driver

Product Description

The OSRAM LEDRV36UNVL1000DIM1AUX12NFC LED Driver delivers a constant current for LED applications. This driver supports an input voltage of one hundred twenty to two hundred seventy-seven volts and operates at a wattage of thirty-six. It offers an output current range from one hundred to one thousand milliamps, with a default setting of five hundred milliamps. The maximum output voltage is forty-eight volts. Dimming is supported through a zero to ten volt dimming control.

• Output current is adjustable from one hundred to one thousand milliamps.
• Dimmable with customizable features including soft start and thermal protection.
• Suitable for damp and dry locations.

Product Highlights

This LED driver is programmable using a free application, allowing for programming without power to the driver. It meets California Title 24 requirements for flicker and startup time, ensuring compliance with essential standards.

Product Information

Standard Information

• Brand: OSRAM
• LED Type: Constant Current

Technical Specifications

• Order Code: 75856
• Input Volts: 120-277V
• Output Current: 100-1000mA (Default 500mA)
• Max Output Voltage: 48V
• Watts: 36
• Class: Class 2
• Dimmable: Yes
• Dimming Type: 0-10V
• Dimensions: 9.5 in. x 1.2 in. x 1.1 in.
• Certifications: cULus, FCC, Title24, RoHS
