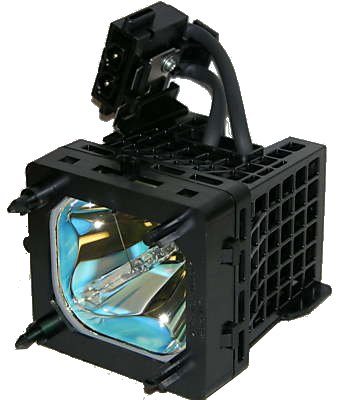

Osram f-9308-860-0 Dlp Tv Lamp Assembly with Housing

Product Description

The OSRAM f-9308-860-0 is a complete DLP projection lamp assembly that includes the P-VIP bulb, reflector housing, and mounting hardware in a single ready-to-install unit. Designed as a direct replacement for Sony rear-projection televisions, this assembly eliminates the need to handle a bare bulb separately, reducing contamination risk and simplifying the swap. The P-VIP lamp technology delivers the high-intensity output required for DLP projection systems. Installation is performed by qualified AV service technicians or experienced electronics technicians familiar with projection display equipment.

This lamp assembly is intended for Sony KDS-series rear-projection DLP televisions used in residential settings. It serves as a replacement when the original lamp reaches end of life, shows dimming, color shifting, or triggers the lamp replacement indicator. The assembly format means the entire lamp module is swapped as one unit rather than relamping a bare bulb into an existing housing. The bare lamp equivalent for this housing is RP-P022 for technicians sourcing components separately.

Key Features

• Complete assembly includes P-VIP lamp, reflector housing, and mounting hardware
• OSRAM P-VIP lamp technology for high-intensity DLP projection output
• Direct OEM-style replacement requiring no modification
• Bare lamp equivalent: RP-P022 for component-level sourcing reference
• 6-month factory warranty included

Compatibility

Compatible with the following Sony KDS-series DLP televisions: KDS-50A2000, KDS-50A2020, KDS-50A3000, KDS-55A2000, KDS-55A2020, KDS-55A3000, KDS-60A2000, KDS-60A2020, KDS-60A3000. Also cross-references to part numbers XL-5200 and XL-5200U.

Installation Notes

DLP lamp replacement should be performed by a technician familiar with projection display equipment. Power down the television completely and allow the lamp to cool for at least 30 minutes before handling, as DLP lamps operate at very high temperatures and retain heat after shutdown. Avoid touching the lamp bulb surface with bare hands, as skin oils can cause hot spots and premature failure. Dispose of the old lamp per local regulations, as DLP lamps may contain materials subject to hazardous waste requirements.

Technical Specifications

• Lamp Type: OSRAM P-VIP
• Assembly Type: Complete lamp, housing, and hardware
• Bare Lamp Reference: RP-P022
• Warranty: 6 months factory

Standard Information

• Brand: OSRAM
• Manufacturer Part Number: f-9308-860-0
